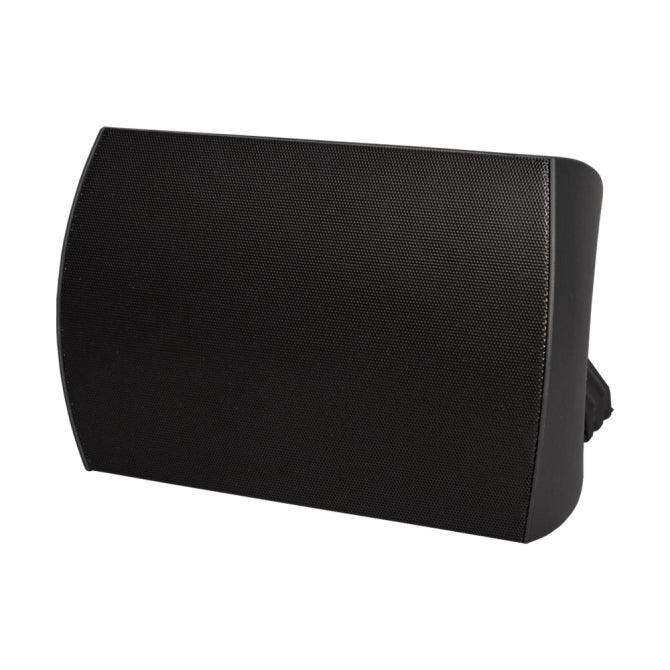

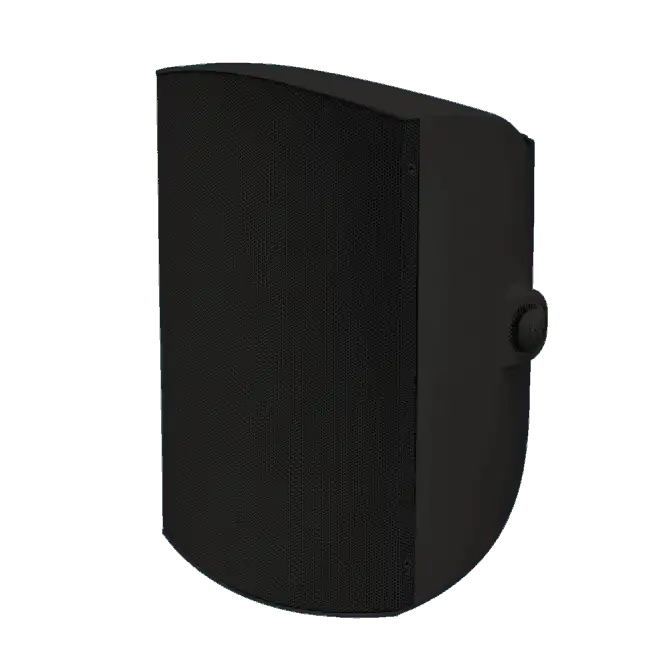

SoundTube IPD-SM52-EZ IP-Addressable Speaker in Black

SoundTube IPD-SM52-EZ IP-Addressable Surface-Mount Speaker — Black

The SoundTube IPD-SM52-EZ is a Dante-enabled, IP-addressable surface-mount speaker that simplifies commercial audio deployment by combining a full-range speaker and a 40-watt Class D amplifier into a single network endpoint. Connecting over a standard RJ45 Ethernet cable, it receives both audio signal and power via PoE (802.3at, 30W max without the STNet Switch II; 40W max with STNet Switch II), eliminating separate amplifier racks, speaker wire runs, and complex wiring infrastructure in AV-over-IP installations.

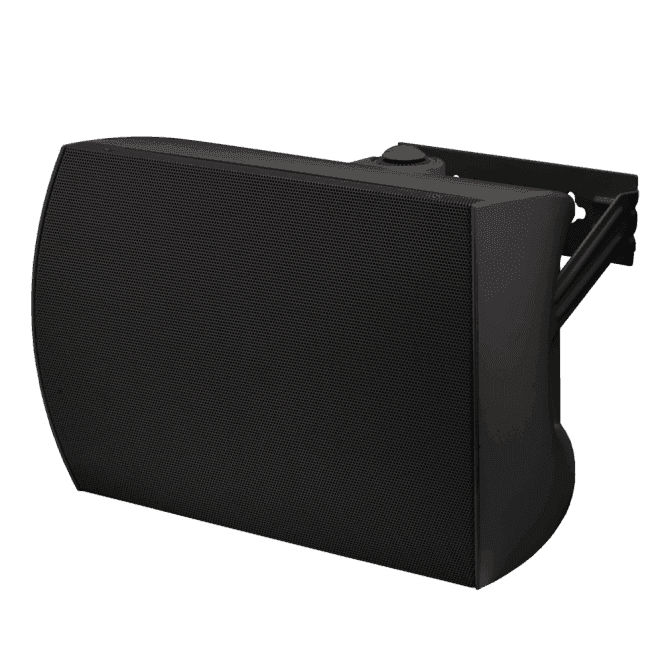

The IPD-SM52-EZ houses a 5.25-inch polypropylene cone woofer with a butyl rubber surround and a 1-inch soft dome tweeter in a ported high-impact polystyrene enclosure, delivering 55 Hz–20 kHz (±10 dB) frequency response and a maximum SPL of 97 dB at 1m. Coverage measures 91 degrees horizontal by 120 degrees vertical, suitable for conference rooms, classrooms, and retail spaces where wall-mounted point-source audio is preferred. The pre-mountable surface-mount bracket and powder-coated aluminum grille in gloss black enable rapid installation that complements dark, industrial, or modern interior aesthetics. IP65-rated and UL 60065 certified.

Creation Networks is a SoundTube authorized dealer and can assist with Dante network design, STNet switch integration, and large-scale IP audio deployments — contact us for a system consultation.

Key Features

• Dante Network Audio — Receives low-latency digital audio over standard IP networks, supporting AES67 and Dante Controller for flexible zone management.
• 40W Integrated Class D Amplifier — Built-in amplification eliminates external amp racks and simplifies system architecture for IP-based AV installations.
• PoE Powered — Single Ethernet cable delivers both power and signal (802.3at; 40W max with STNet Switch II), reducing installation labor and infrastructure cost.
• 5.25" Polypropylene Woofer + 1" Soft Dome Tweeter — Two-way driver configuration delivers balanced full-range audio from 65 Hz to 20 kHz (±3 dB).
• 91° x 120° Coverage Pattern — Wide vertical dispersion suits ceiling-height wall-mount positions, covering audiences below with minimal vertical beaming.
• 97 dB Max SPL @ 1m — Adequate output for medium-sized meeting rooms, retail zones, and classroom voice reinforcement applications.
• IP65 Rated — Sealed against dust ingress and water jets, extending deployment options to semi-exposed areas.
• Gloss Black Finish — Complements dark ceiling tiles, exposed ductwork, and modern industrial interiors.

Typical Applications

• Corporate conference rooms and huddle spaces
• K-12 and higher education classrooms
• Retail stores with IP-based audio infrastructure
• Healthcare facilities and nursing stations
• Hotel corridors, lobbies, and common areas
• Houses of worship using Dante networked audio

Technical Specifications

Frequently Asked Questions

What is Dante and do I need special infrastructure?

Dante is Audinate's industry-standard audio-over-IP protocol used by thousands of commercial AV products. The IPD-SM52-EZ requires a standard Gigabit Ethernet switch; for full 40W power output, the SoundTube STNet Switch II is recommended over standard PoE+ switches.

Is the IPD-SM52-EZ compatible with PoE++ (802.3bt) switches?

No — SoundTube IPD speakers are NOT compatible with PoE++. Use standard PoE (802.3at) switches for 30W, or the STNet Switch II for the full 40W amplifier rating.

Can multiple IPD-SM52-EZ speakers receive the same audio stream?

Yes. Dante supports multicast audio, so any number of speakers can receive the same channel simultaneously without additional infrastructure. Dante Controller software manages routing from a PC.

Does the speaker support stereo output?

The IPD-SM52-EZ is a single-channel (mono) speaker. For stereo applications, install two units — one per channel — and route left and right Dante channels independently.

What is included in the box?

The IPD-SM52-EZ-BK includes a mounting assembly, mounting hardware, port plug, and safety cable. An optional black surface mount bracket (AC-SMB-SM52-SS-BK) is available separately.

How does the black version differ from the white version?

The IPD-SM52-EZ-BK and IPD-SM52-EZ-WH are acoustically and electronically identical; the only difference is the enclosure and grille color for aesthetic integration with different interior finishes.
