SoundTube 6.5." IP-Addressable, Dante Enabled, Speaker (White) IPD-CM62-BGM-II-WH

Soundtube SKU: IPD-CM62-BGM-II-WH
No reviews

Price:
Sale price$596.00

Description

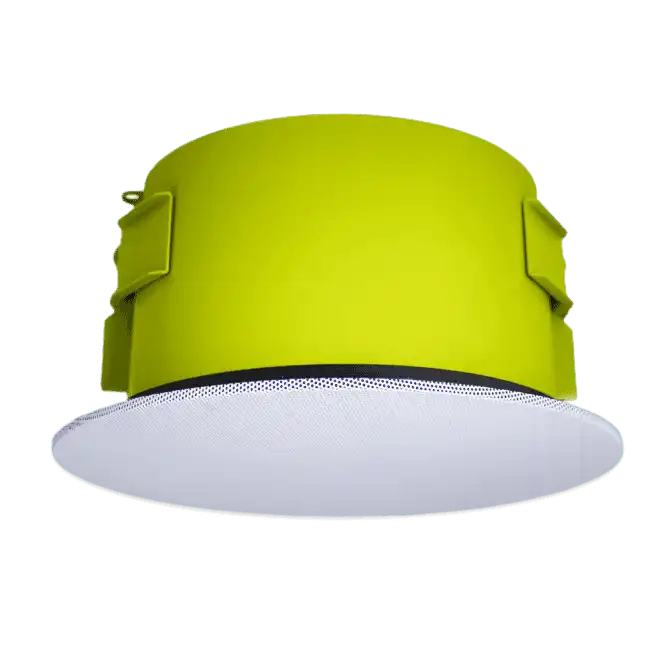

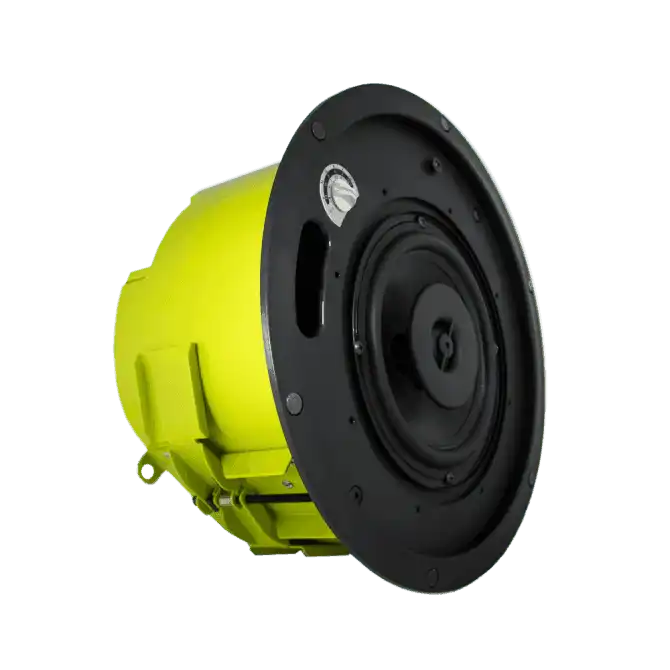

SoundTube IPD-CM62-BGM-II IP-Addressable Speaker in White

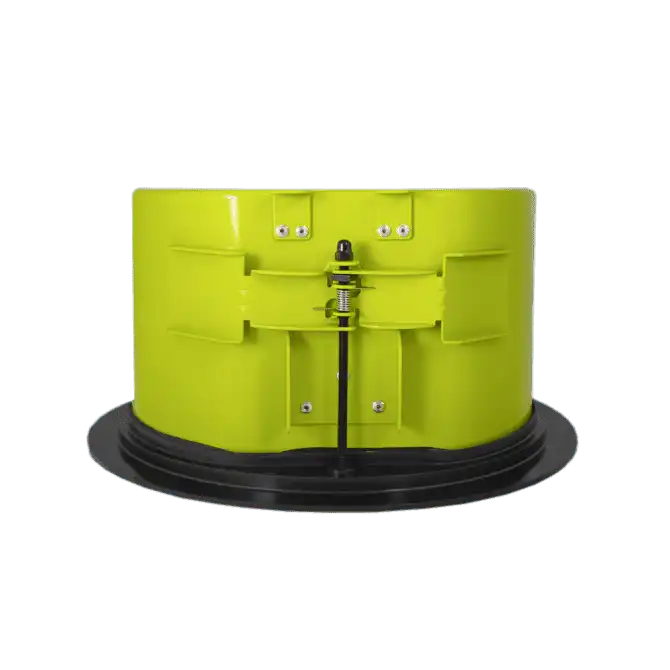

Dante®-enabled coaxial in-ceiling speaker incorporating one 6.5 inch (165 mm) polypropylene woofer with rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. BroadBeam Ring technology and a tuned port on the baffle provide smooth off-axis performance, mid-range clarity and bass response to 60 Hz (-10 dB). Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Mounting hardware is included and features SoundTube®'s SpeedWing constant-tension fixed-wing mounting system, which accommodates material thicknesses ranging from 0.035 in (0.9 mm) to2.38 in (60.4mm). Color-coded (green) tile bridge, UL listed conduit clamp and paint shield are included. IP-Rating: IPX3.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Color White
UPC 644216226603
Manufacturer SoundTube
Manufacturer's Category STNet IP-Addressable and Dante Series
Shipping Weight 9.5 lbs / 4.31 kg
Carton Height 8 in / 203.2 mm
Carton Length 13.25 in / 336.55 mm
Carton Width 13.25 in / 336.55 mm
Certifications CE, RoHS, UL2043, UL60065, ETL-C/US
Enclosure Properties ABS, Steel
Included Accessories Conduit Clamp, Cover Plate, Grille, Paint Mask
Optional Accessories Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)

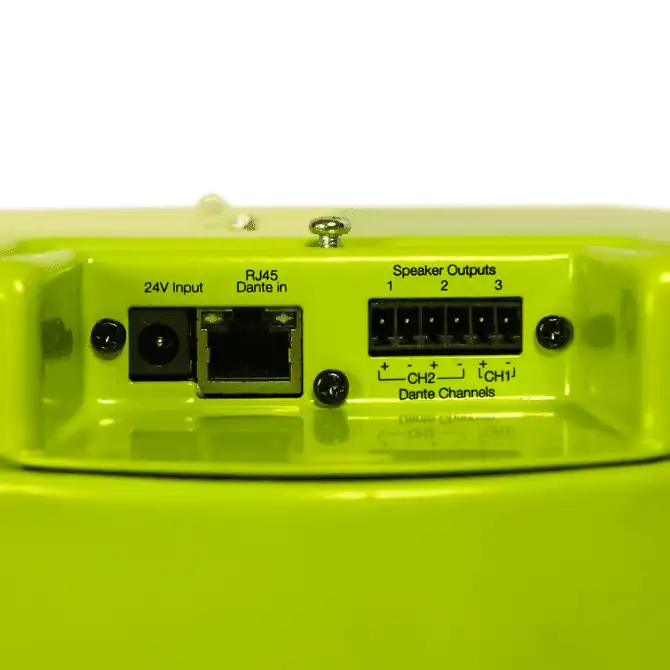

Source Inputs RJ45 Ethernet Port
IP Rating IPX3
Backcan Diameter 9.67 in / 245.6 mm
Backcan Height 5.75 in / 146.1 mm
Crossover Frequency 4.0 kHz
Cutout Width/Diameter 10.5 in / 266.7 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 5.1 and 5.0
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 6.2dB and 7.0dB
Frequency Response (± 10 dB) 60 Hz - 22 kHz
Frequency Response (± 3 dB) 55 Hz - 20 kHz

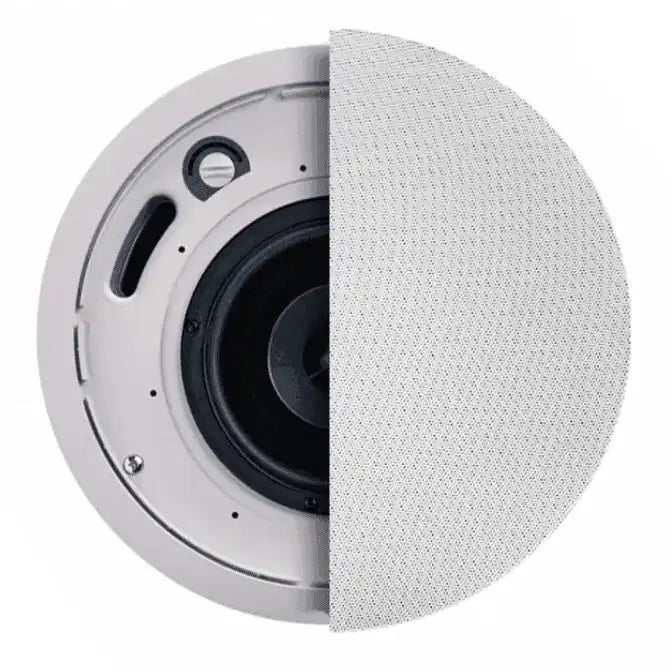

Grille Properties Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel
Low Frequency Voice Coil 1 in / 25.4 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Ceiling Thickness 1.6 in / 40.6 mm
Minimum Ceiling Thickness 0.04 in / 0.9 mm
Network Type: High Pass 12 dB per octave 2nd order
Tweeter Driver 1" Silk Dome w/ BroadBeam Ring®

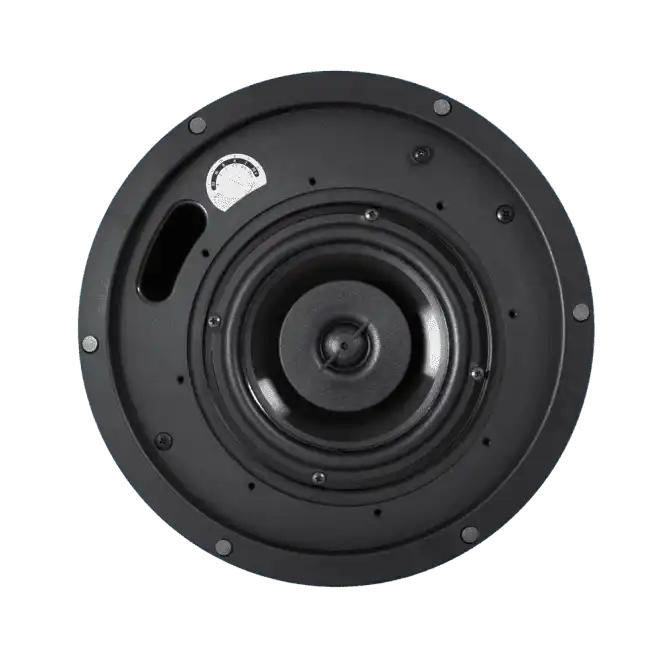

Woofer Driver 6.5" Polypropylene Cone w/ Butyl Rubber Surround
Visible Diameter 298.5 mm
Visible Height 8.6 mm
