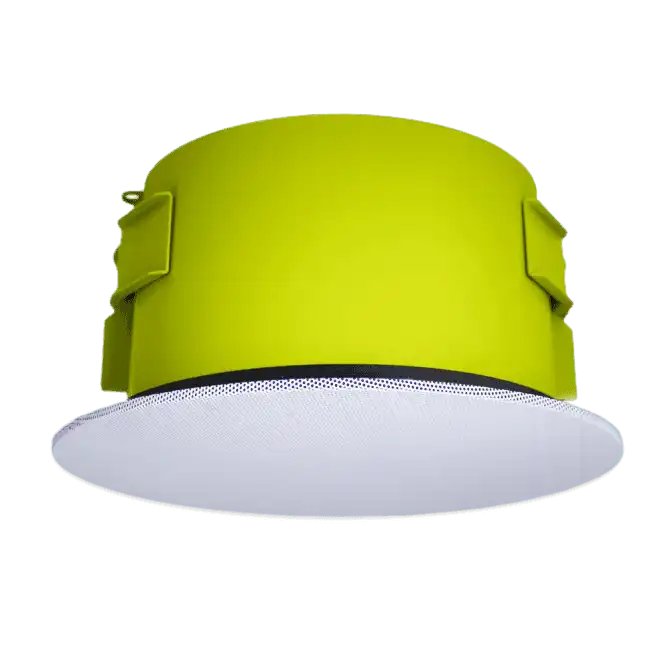

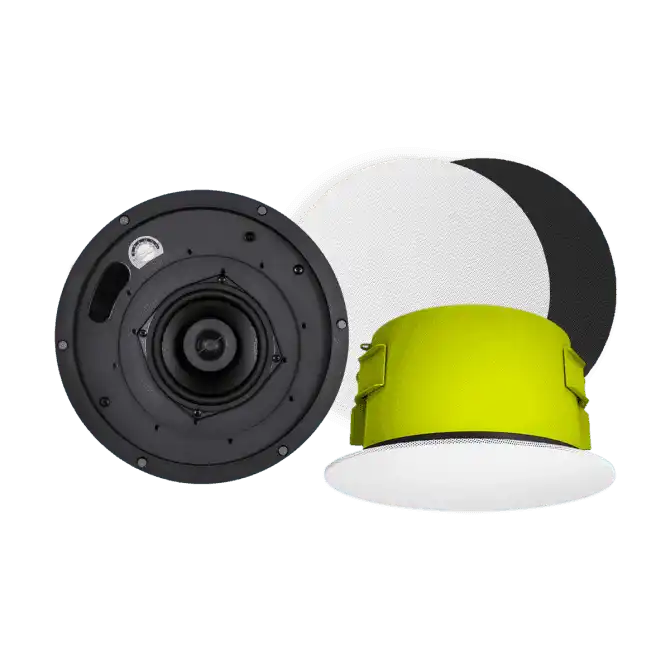

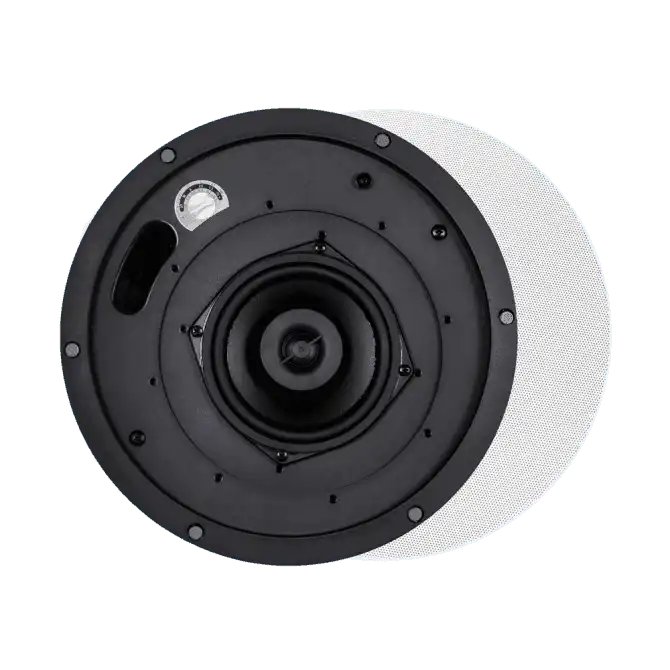

One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm). UL 1480 and 2043 listed.
Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
|Manufacturer's Category||CM-BGM Background Music In-Ceiling|
|Shipping Weight||9.55 lbs / 4.33 kg|
|Carton Height||8 in / 203.2 mm|
|Carton Length||13.25 in / 336.55 mm|
|Carton Width||13 in / 330.2 mm|
|Certifications||CE, RoHS, UL1480, UL2043|
|Enclosure Properties||ABS Glass Fiber Reinforced, Injection Molded, Ported|
|Enclosure Volume||350 cu in / 5735.47 cu cm|
|Included Accessories||Conduit Clamp, Cover Plate, Grille, Paint Mask|
|Optional Accessories||Square Grille (GRL-CM-BGM-II-SQ-WH)|Black Grille (GRL-CM-BGM-II-BK)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)|

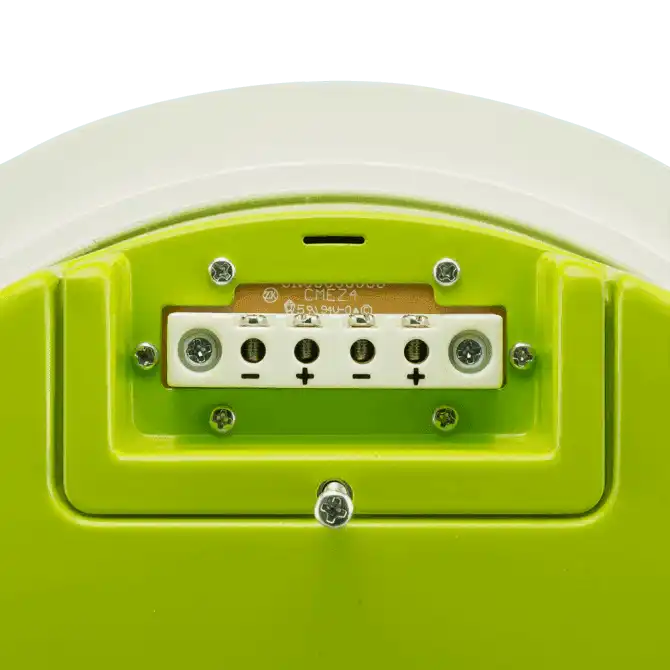

|Source Inputs||4 Pin Ceramic Terminal|
|Backcan Diameter||9.67 in / 245.6 mm|
|Backcan Height||5.75 in / 146.1 mm|
|Coverage Angle (±6dB @ 2kHz)||105°|
|Crossover Frequency||5.0 kHz|
|Cutout Width/Diameter||10.5 in / 266.7 mm|
|Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)||3.8 and 2.1|
|Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)||5.1dB and 3.3dB|
|Frequency Response (± 10 dB)||56 Hz - 22 kHz|
|Frequency Response (± 3 dB)||67 Hz - 20 kHz|
|Grille Properties||Magnetic, Micro-Flange, White, Paintable, Painted, Steel|
|Low Frequency Voice Coil||1 in / 25.4 mm|
|Low Pass Crossover||12 dB per octave 2nd order|
|Max. Ceiling Thickness||1.6 in / 40.6 mm|
|Max. Continuous Power RMS||40W|
|Max. Program Power||80 W|
|Minimum Impedance (Ω Ohms)||16 Ω|
|Minimum Ceiling Thickness||0.04 in / 0.9 mm|
|Network Type: High Pass||12 dB per octave 2nd order|
|Nominal Impedance (Ω Ohms)||16 Ω|
|Tweeter Driver||1" Silk Dome w/ BroadBeam Ring®|
|Woofer Driver||5.25" Polypropylene Cone w/ Butyl Rubber Surround|
|Sensitivity dB @ 1W/1M||83.5 dB|
|Sensitivity dB @ 2.83V/1M||80.4 dB|
|Tap Selector||Rotary Switch|
|Transformer Taps Max. Setting (25V/70.7V/100V)||2.5W/20W/20W|
|Visible Diameter||11.75 in / 298.5 mm|
|Visible Height||0.34 in / 8.6 mm|
