Soundtube 6.25" IP-Addressable, Dante Addressable, Speaker in White

SoundTube IPD-RS62-EZ 6" IP-Addressable Dante Pendant Speaker (White)

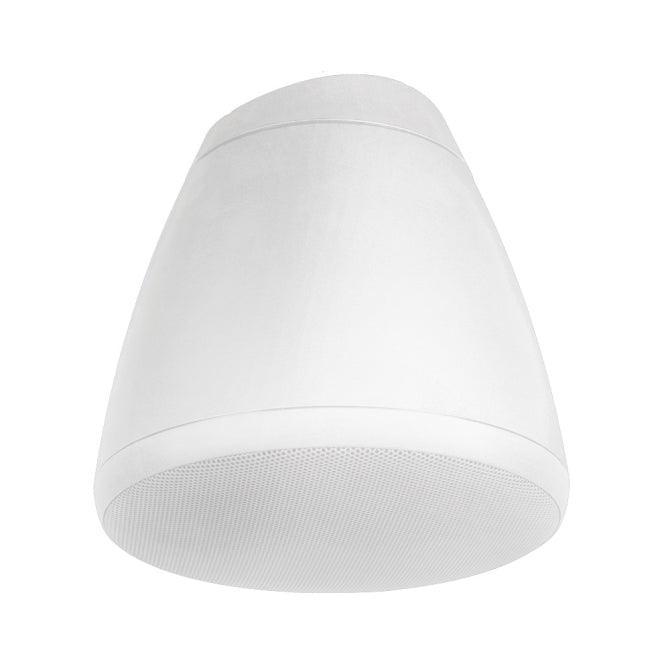

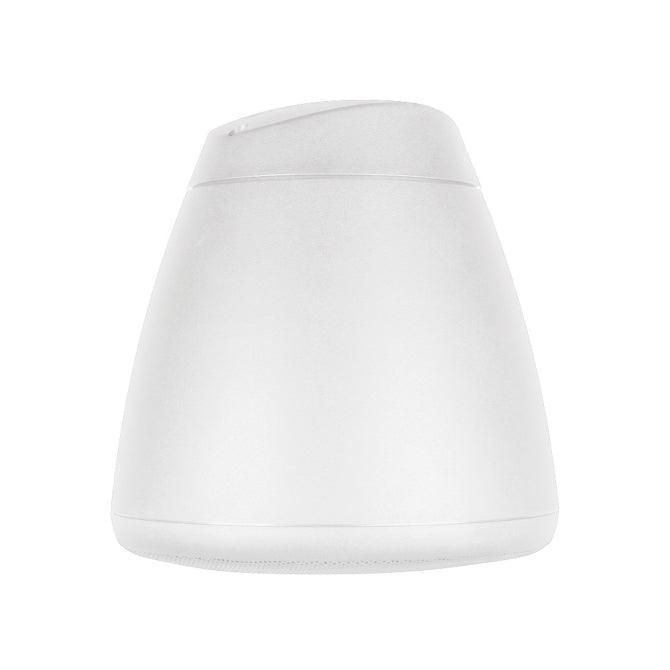

The SoundTube IPD-RS62-EZ-WH is a Dante®-enabled IP-addressable pendant speaker engineered for flexible commercial AV installations that demand individual zone control, rapid deployment, and reliable performance in both indoor and covered outdoor environments. Powered and driven entirely over a single standard category cable from any PoE or PoE+ switch, the IPD-RS62-EZ-WH eliminates the need for separate amplifiers, speaker wire runs, or zone controllers—reducing installation labor and above-ceiling clutter dramatically. Its 6.5-inch coaxial driver with BroadBeam Ring™ technology and a 1-inch silk dome tweeter delivers consistent, wide-coverage audio across a 105° dispersion angle, making it a practical solution for open-plan spaces, atriums, covered patios, and high-ceiling commercial environments. Available in white (SKU: IPD-RS62-EZ-WH).

Product Description

The IPD-RS62-EZ-WH features a 6.5-inch polypropylene cone coaxial driver with a butyl rubber surround and a co-located 1-inch silk dome tweeter enhanced by SoundTube’s BroadBeam Ring™ waveguide, which smooths high-frequency dispersion across the 105° coverage angle for consistent SPL and tonal balance throughout the listening area. Frequency response extends from 100 Hz to 20 kHz (±3 dB) with usable output to 80 Hz (-10 dB), and maximum program power handling of 64W enables a peak SPL of 104 dB at 1 meter. The injection-molded ABS enclosure with glass fiber reinforcement provides lasting durability in both indoor and outdoor-adjacent environments. The speaker may be hung on galvanized steel cables with the included hanging bracket for classic pendant installation, or mounted directly to conduit via the locking cover plate for a clean, architectural appearance. A powder-coated aluminum grille in white completes the low-profile aesthetic, blending seamlessly with white ceilings and tile. Power options include PoE or PoE+ (30W maximum with standard switches; 40W with STNet Switch II), or a 24V DC barrel connector for non-PoE installations. Configuration, zoning, routing, and scheduling are all managed via SoundTube’s software platform over the IP network. Included accessories: hanging hardware with galvanized steel cables, hanging bracket, weather plug, and cover plate. Note: SoundTube IPD speakers are NOT compatible with PoE++.

Explore the full SoundTube IP speaker system at Creation Networks.

Key Features

• Dante® Network Audio — Low-latency digital audio over Cat5e/Cat6; integrates with any Dante-enabled AV infrastructure.
• IP-Addressable Zone Control — Individually address, route, and schedule each speaker from software; no hardware zone controllers required.
• 6.5" Coaxial Driver with BroadBeam Ring™ — Co-located woofer and tweeter with SoundTube’s waveguide technology ensures smooth, wide-coverage dispersion across 105°.
• 104 dB Max SPL @ 1M — High-output capability supports foreground music and paging in addition to background music applications.
• Single-Cable Installation — Power, audio, and control via one Ethernet cable; dramatically reduces wiring cost and labor time.
• PoE / PoE+ or 24V DC Power — Supports standard PoE+ infrastructure (30W) or STNet Switch II (40W); 24V DC option for non-PoE sites.
• Flexible Mounting — Hangs on included galvanized steel cables or mounts direct-to-conduit via locking cover plate for two installation modes.
• ABS Glass Fiber Reinforced Enclosure — Injection-molded enclosure withstands the physical demands of commercial environments and covered outdoor locations.

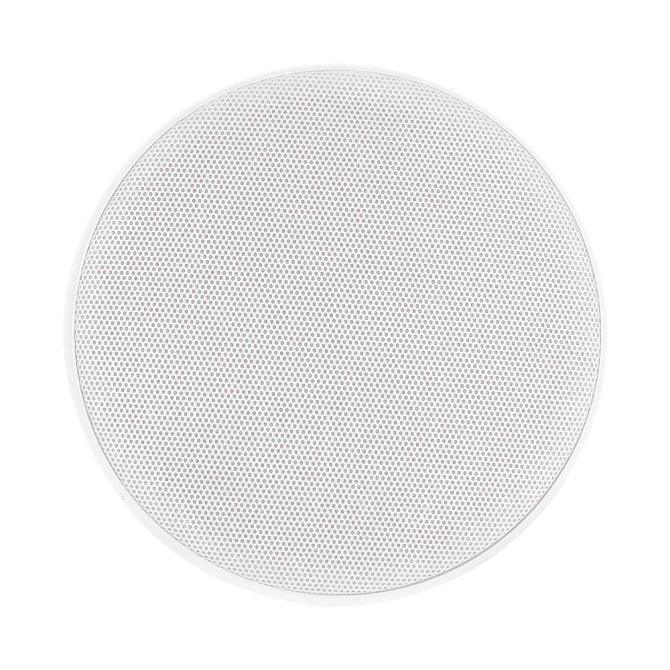

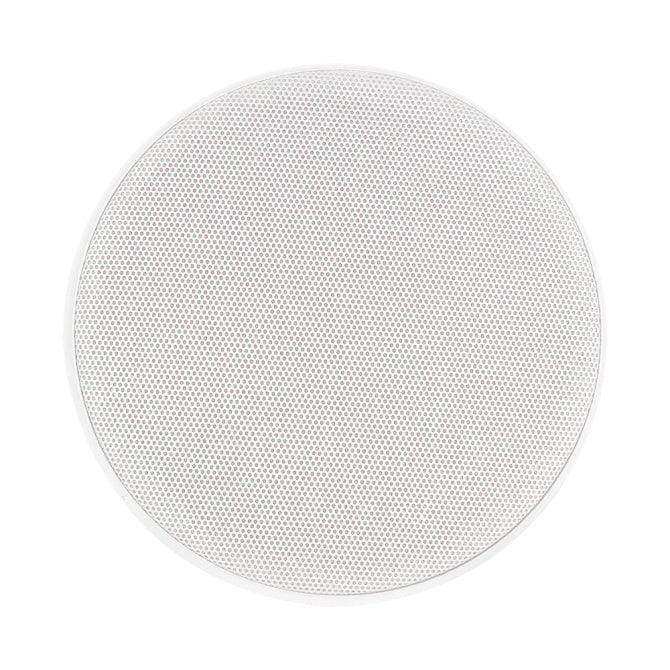

• Powder-Coated Aluminum Grille — Durable, low-profile white finish grille blends into white ceilings and light architectural finishes.
• CE, RoHS, UL60065, FCC Certified — Meets North American and European compliance requirements for commercial AV deployments.

Typical Applications

• Atriums & Open-Plan Offices — Wide 105° dispersion from pendant position delivers even coverage in architecturally complex spaces.
• Restaurants & Hospitality Venues — Pendant form factor and IP control allow per-zone music programming from a central system.
• Retail Environments — Quick installation and software zone management reduce deployment time for multi-location retail rollouts.
• Covered Outdoor Spaces & Patios — Rugged ABS enclosure and included weather plug support installation in semi-outdoor environments.
• Houses of Worship — Dante integration supports complex routing requirements for contemporary worship AV systems.
• Educational Facilities — IP addressability enables room-by-room scheduling and content delivery across campus networks.

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the IPD-RS62-EZ-WH and the IPD-RS62-EZ-BK?
A: The two models are acoustically and electrically identical. The only difference is the enclosure and grille color: the WH model is white; the BK model is black. Choose based on your ceiling color and aesthetic requirements.

Q: Can the IPD-RS62-EZ-WH be surface-mounted instead of hung?
A: Yes. In addition to the included pendant hanging configuration, the speaker can be mounted directly to conduit via the included locking cover plate. An optional white surface mount bracket (AC-RS-SM5-WH) is also available.

Q: What PoE switch is required?
A: Any standard PoE or PoE+ (802.3at) switch will power the IPD-RS62-EZ. For higher output applications, SoundTube’s STNet Switch II supports up to 40W per port. PoE++ (802.3bt Type 4) is NOT compatible.

Q: Does the IPD-RS62-EZ-WH work without a network connection?
A: The speaker requires an active PoE or PoE+ network connection to function. Alternatively, it can be powered via its 24V DC barrel connector. All audio, control, and configuration functions are delivered over the IP network.

Q: Is the IPD-RS62-EZ suitable for covered outdoor use?
A: The ABS glass fiber reinforced enclosure and the included weather plug make the IPD-RS62-EZ appropriate for covered outdoor environments such as covered patios, parking structures, and building overhangs. It is not rated for direct precipitation exposure.

Q: What hanging cable lengths are available?
A: The speaker includes a standard hanging cable. Optional hanging cables in 10-foot (AC-RS-HH-10), 20-foot (AC-RS-HH-20), and 50-foot (AC-RS-HH-50) lengths are available as accessories for installations requiring extended drop heights.
