Soundcraft Vi3000 – Large-Format Digital Live Sound Console
Product Overview
The Soundcraft Vi3000 is a large-format digital live sound console designed for touring productions, theatrical performances, and large-venue FOH applications. Featuring 36 faders, 24 mono/stereo busses, and four Vistonics II touchscreen interfaces, the Vi3000 digital mixing console supports dual-engineer operation — the only console in its class with that capability. Dante networking is included as standard, making the Vi3000 a strong choice for engineers requiring a digital audio networking console with flexible stagebox expansion.
Product Description
The Soundcraft Vi3000 combines an all-new control surface design with the well-established Vi Series workflow that live sound engineers have relied on for touring, broadcast, and large venue work. Four Vistonics II touchscreen interfaces give two engineers simultaneous access to channel functions, processing controls, and metering — without the workflow interruptions common on single-operator desks.

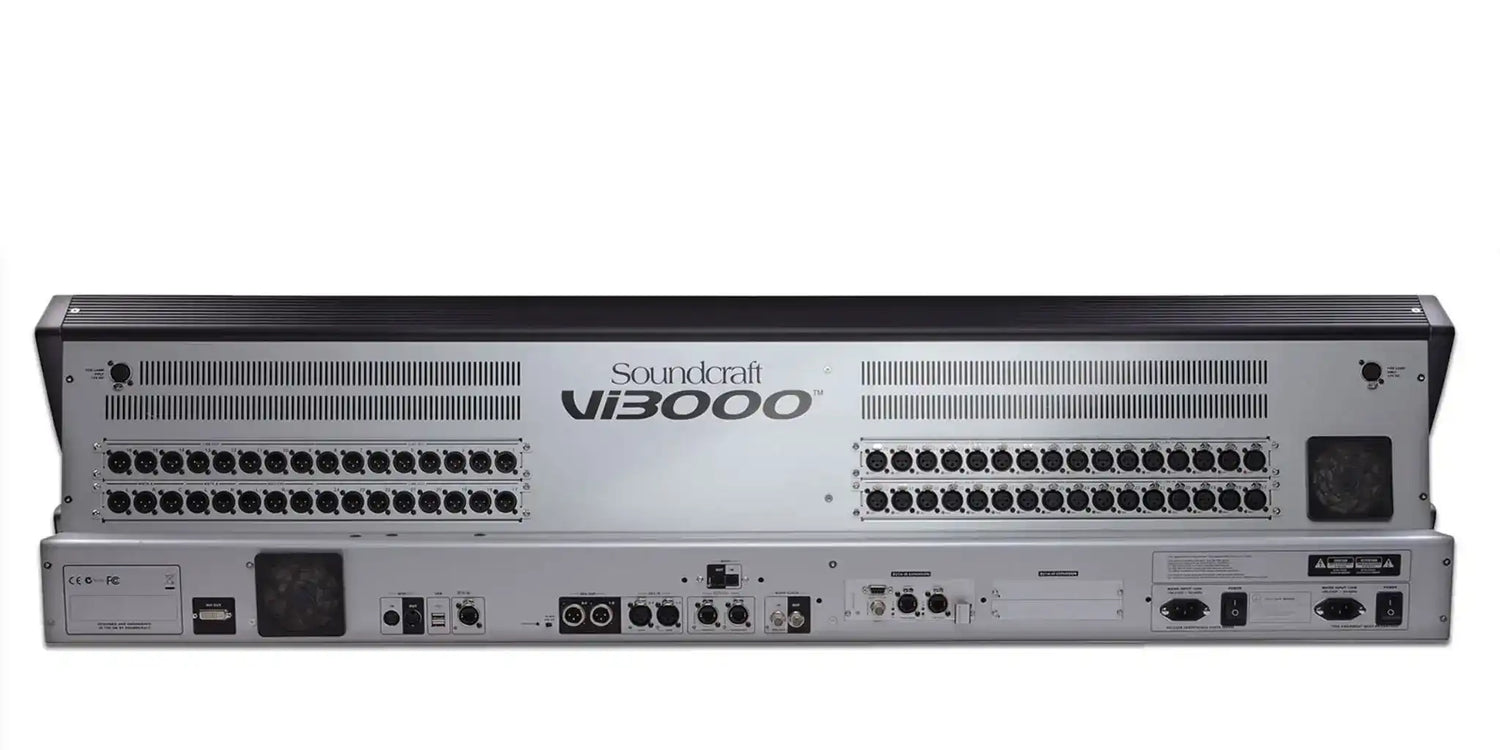

Rear panel connectivity includes a full complement of analog and digital I/O alongside MIDI, USB, Ethernet, DVI output, Dante/MADI record feed outputs, and a redundant power supply. Two expansion bays accept MADI Stagebox cards for connecting multiple Soundcraft Stagebox input expander modules, supporting large-scale multitrack recording and monitor drive applications. The Vi3000 is also compatible with the Soundcraft Realtime Rack — a hardware/software unit built in partnership with Universal Audio that provides access to 74 UAD plug-ins within the live mix environment.
Built-in processing includes BSS DPR901ii Dynamic EQ (8 instances), Lexicon reverb/delays, dbx compression, and STUDER vMIX automated microphone mixing for up to two groups of 16 inputs. FaderGlow illuminated faders display function-based color coding across all 36 faders. Snapshot and cue list management supports per-snapshot recall scope, MIDI/GPIO event triggering, and crossfade transitions between cues. The ViSi Remote iPad app allows remote control of EQ, dynamics, and mix levels from anywhere in the venue.
Key Features
- Four Vistonics II Touchscreen Interfaces — Enables dual-engineer operation; each interface controls 8 input channels with on-screen rotary encoders and switches for immediate parameter access.
- 36 Faders / 24 Mono-Stereo Busses — Full-scale fader layout with all busses convertible to stereo for 24-stereo mix capability.
- Dante Networking as Standard — Built-in Dante interface for digital audio networking with any Dante-enabled device; also supports MADI stagebox expansion via two expansion bays.
- BSS DPR901ii Dynamic EQ — 8 instances of the industry-standard dynamic equalizer available for insertion on any input or output channel alongside standard channel EQ.
- STUDER vMIX Automixing — Processes up to two separate groups of 16 inputs for automatic microphone mixing in corporate and multi-presenter applications.
- FaderGlow Illuminated Faders — Color-coded fader illumination changes based on function (VCA, aux, channel), reducing operational errors during complex shows.
- Soundcraft Realtime Rack Compatible — Optional UAD plug-in integration delivers 74 Universal Audio plug-ins directly within the console's workflow.
- VM2 Radio Mic Status Monitoring — Real-time battery life, RF status, and mute state monitoring for compatible Shure ULX-D, QLX-D, and AKG HiQnet wireless systems.
- Virtual Vi Offline Editor — Pre-program shows offline using the free Virtual Vi software and load sessions via USB, reducing on-site setup time.
- Redundant Power Supply — Internal redundant PSU provides power continuity for mission-critical live events and broadcast applications.
- ViSi Remote iPad App — Remote control of EQ, dynamics, and monitor levels from anywhere in the venue via the iOS app.
- 4 Aux Send Points Per Channel — Selectable pre-EQ, pre-compressor, pre-fade, or post-fade send points on a per-channel/per-bus basis for monitor engineering flexibility.
Typical Applications
- Touring FOH and monitor mixing
- Theatrical productions and performing arts venues
- Broadcast studio and live-to-air applications
- Auditorium and large multi-purpose venue installations
- House of worship with large-scale production requirements
- Corporate events requiring automated microphone mixing
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Response (Stagebox Mic In to Line Out) | +0/-1dB, 20Hz–20kHz |
| AES/EBU In to AES/EBU Out | +0/-0.2dB, 20Hz–20kHz |
| THD (Stagebox Mic In, min gain) | <0.003% @ 1kHz |
| THD (Stagebox Mic In, max gain) | <0.020% @ 1kHz |
| THD (Local Line In to Line Out) | <0.003% @ 1kHz |
| Mic Input E.I.N. | <-126dBu (150Ω source) |
| Residual Noise | -91dBu Stagebox line output; no inputs routed, Mix fader @0dB |
| CMRR | 80dB @ 1kHz |
| Sampling Frequency | 48kHz |
| Latency (Stagebox Mic In to Local Line Out) | <2ms @ 48kHz |
| AES/EBU Input Sample Rate | 32–108kHz (with SRC enabled) |
| DSP Resolution | 40-bit floating point |
| Internal Clock Accuracy | <+/-50ppm |
| Internal Clock Jitter | <+/-2ns |
| External Sync | BNC Wordclock |
| Mic Input Max Level | +28dBu |
| Line Input Max Level | +22dBu |
| Line Output Max Level | +22dBu |
| Nominal Operating Level | +4dBu (-18dBFS) |
| Mic Input Impedance | 2.7kΩ |
| All Other Analog Input Impedance | >10kΩ |
| Line Output Impedance | <75Ω |
| AES/EBU Output Impedance | 110Ω |
| EQ (HF & LF) | 20Hz–20kHz, +/-18dB, Q=0.3–8.7 or shelving |
| EQ (Hi-Mid & Lo-Mid) | 20Hz–20kHz, +/-18dB, Q=0.3–8.7 |
| Channel HP Filter | 20Hz–600Hz, 18dB/octave |
| Channel LP Filter | 1kHz–20kHz, 18dB/octave |
| Mains Voltage | 90–264V, 47–63Hz, auto-ranging |
| Power Consumption | 300W |
| Console Dimensions (H x W x D) | 351 x 1446 x 803mm (13.8 x 56.9 x 31.6 in) |
| Console Weight | 54kg (119lb) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 0%–90%, non-condensing @ 40°C |
Frequently Asked Questions
- What stagebox options are compatible with the Vi3000?
- The Vi3000 supports Soundcraft Vi Stageboxes connected via MADI Stagebox cards in its two expansion bays. It also supports Dante-connected devices natively through its built-in Dante interface, giving engineers flexibility in how they distribute I/O across a venue.
- Does the Vi3000 support 96kHz operation?
- No. The Vi3000 operates at a fixed 48kHz sampling frequency. The 96kHz option is available on the Vi5000 and Vi7000 with additional DSP cards installed.
- Can the Vi3000 be controlled remotely from a tablet?
- Yes. The ViSi Remote iPad app provides remote control of EQ, dynamics, metering overview, and monitor levels from anywhere in the venue over a standard Wi-Fi network.
- What is the warranty on the Soundcraft Vi3000?
- Soundcraft products are covered by the HARMAN Professional Solutions warranty. Contact Creation Networks for current warranty terms applicable to your purchase and region.
- Is the Vi3000 compatible with Universal Audio plug-ins?
- Yes, with the optional Soundcraft Realtime Rack accessory. This hardware/software unit integrates UAD plug-ins directly into the Vi3000's workflow, giving access to up to 74 UAD Powered Plug-Ins on individual channels, aux sends, and master busses.
- How does the Vi3000 handle monitor mixing from a single surface?
- The Vi3000 provides 24 mono/stereo busses (all convertible to stereo for 24-stereo output), 4 aux send pick-off points per channel, and Aux VCA mode — allowing a single engineer to manage both FOH and monitor requirements from one console surface.
- Where can I purchase the Soundcraft Vi3000 or request a quote?
- The Vi3000 is available through Creation Networks, a commercial AV reseller specializing in professional audio systems. Contact us for project pricing, system integration, and freight quotes.
