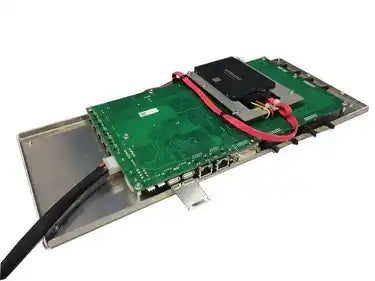

Soundcraft Vi Series Control Module Upgrade – Vi2/4/6 to Vi200/400/600

Product Overview

The Soundcraft Vi Series Control Module Upgrade replaces the original Vi4/6 'silver box' Control Module with a faster processor, DisplayLink-based graphics outputs, and the V6.x software platform — extending the operational life of existing Vi2, Vi4, and Vi6 consoles without requiring a full system replacement. The upgraded console identifies as a Vi200, Vi400, or Vi600 and gains access to 3D-Vistonics touchscreen graphics, 30-second fast boot, full ViSi Remote functionality, and console mirroring capabilities. It is available at Creation Networks.

Product Description

The Vi400/600 Control Module is a direct connector-compatible replacement for the Vi4/6 silver box, using the same chassis fixings and mounting points. Installation requires only basic tools, takes approximately one hour, and does not require soldering. The new module ships with operating software pre-installed; a post-installation software update to the latest V6.x release is recommended and available at no charge from the Soundcraft website.

The upgrade is designed for organisations with existing Vi2, Vi4, or Vi6 consoles that want to move to the V6.x software platform to gain modern Vistonics touchscreen graphics, faster layer switching, and expanded remote control capabilities through ViSi Remote v3.2 or later. It is also a practical approach for installations purchasing a new Vi5000 or Vi7000 system but wishing to retain the older surface as a functional emergency backup rather than decommissioning it.

Once upgraded, the console surface will operate with either a Vi4/6 Classic Local Rack or a Vi5000/7000 Local Rack, and local I/O can use either the original passive breakout box or the ABB from a Vi5/7000 rack. Channel count remains at 96 inputs (dependent on DSP card population), and the console benefits from ongoing V6.x software updates, subject to surface and DSP limitations. The upgrade is also available for Vi2 consoles, which become Vi200 after installation.

Features not carried over from the full Vi5000/7000 platform include 128-input operation, 96kHz sample rate, BSS DPR 901ii Dynamic EQ, and vMIX automatic microphone mixing. These capabilities require a full Vi5000/7000 upgrade or new system purchase.

Key Features

• Direct Drop-In Replacement — Connector-compatible with the original Vi4/6 silver box; mounts to the same chassis fixings with no soldering required.
• 30-Second Fast Boot — Significantly reduced startup time compared to the original Vi4/6 Control Module.
• 3D-Vistonics Touchscreen Graphics — New-look interface matching the Vi000-series console generation for a consistent operator experience.
• Faster Surface Response — Noticeably improved layer change speed and overall surface responsiveness due to faster processor hardware.
• Full ViSi Remote Support — Complete EQ, dynamics, and metering control via ViSi Remote v3.2 or later (requires V6.2 software).
• Console Mirroring — Mirror two consoles for redundant FOH or FOH plus monitor configurations (V6.2 software or later).
• Virtual Vi Compatibility — Online console control and offline show preparation using the Virtual Vi editor.
• Expanded Insert Points and Tie Lines — 64 insert points and 128 tie lines, increased from the original Vi4/6 limits.
• Dual Rack Compatibility — Works with both the Vi4/6 Classic Local Rack and the Vi5000/7000 Local Rack, including ABB support.
• Functioning Setup Buttons — Encoder USER mode assign and F1-F6 key assign buttons operational after upgrade.
• Shure Mic Monitoring — Wireless microphone status monitoring for Shure wireless systems.
• Input Channels Assignable to Master Bay — Expanded routing flexibility for complex productions (V6.2 software or later).

Typical Applications

• House of worship — upgrading an existing Vi4/6 console to current V6.x software without full system replacement cost
• Auditorium — retaining a proven Vi surface while gaining modern graphics and remote control for technical staff
• Broadcast studio — redundant backup surface for primary Vi5000/7000 installations
• Multi-purpose room — extending the operational lifespan of installed Vi consoles in permanent AV systems

Technical Specifications

Frequently Asked Questions

Which Soundcraft consoles does this Control Module Upgrade support?

The upgrade is available for Vi2, Vi4, and Vi6 consoles. After installation, the console identifies as a Vi200, Vi400, or Vi600 respectively on its main menu screen. The external surface appearance remains unchanged.

How difficult is installation?

Installation requires basic tools only. The new module is connector-compatible with the original silver box and uses the same chassis fixings. Some internal cable re-routing and removal of legacy components is necessary, but no soldering is involved. Soundcraft estimates approximately one hour for the process. Printed installation instructions are included, and a Soundcraft distributor or dealer can perform the installation if preferred.

What features are not available after upgrading to the Vi400/600 Control Module?

The Vi400/600 Control Module upgrade does not provide 128-input operation, 96kHz sample rate, BSS DPR 901ii Dynamic EQ, or vMIX automatic microphone mixing. These features require a complete Vi5000/7000 system or full upgrade path.

Can the upgraded console work with a Vi5000/7000 Local Rack?

Yes. The upgraded surface is compatible with both the Vi4/6 Classic Local Rack (with the original passive breakout box) and the Vi5000/7000 Local Rack (with ABB). This provides a migration path for installations moving toward the Vi5/7000 platform incrementally.

Does the upgrade include future software updates?

Yes. The upgraded console runs on the V6.x software platform and receives ongoing software updates from Soundcraft. New features may be restricted compared to the full Vi000-series due to hardware limitations of the Vi2/4/6 surface and DSP. The current software version is V6.4.8.360, released January 2026.

What is the warranty on the Vi Series Control Module Upgrade?

The module carries the standard Harman Professional manufacturer's warranty when purchased through an authorised dealer. Contact Creation Networks at creationnetworks.net for purchasing, installation guidance, and warranty support.

Is the offline editor available for the upgraded console?

Yes. The Virtual Vi Offline Editor (current version 6.4.8.360) is available as a free download from the Soundcraft website and supports show preparation and offline console programming for the upgraded Vi200/400/600.
