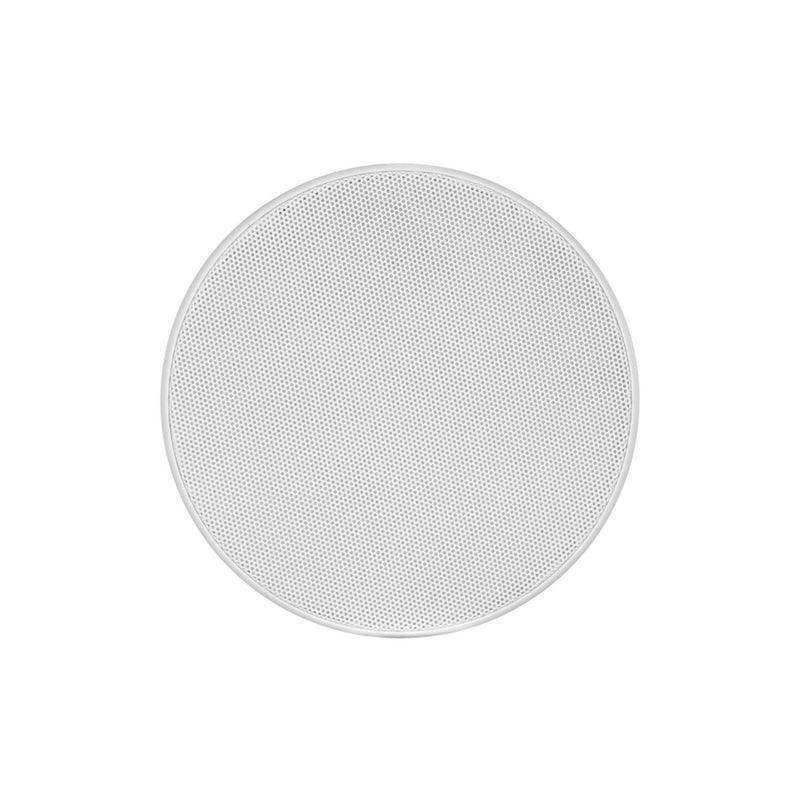

Sonance VX46R 4" Round In-Ceiling Speaker with White Micro Trim Grille (Pair)

Sold as a Pair

Product Overview

The Sonance VX46R is a 4" round in-ceiling speaker engineered for discreet, high-fidelity audio in commercial and architectural interiors. Its micro trim grille sits nearly flush with the ceiling for a clean, low-profile finish, while the coincident woofer-and-tweeter pivot directs sound toward the listening area. With 8-ohm operation and an 80-watt maximum power rating, the VX46R integrates with standard low-impedance distributed audio systems. Sold as a pair, it suits foreground and background music in spaces where appearance and intelligibility both matter.

Product Description

The Sonance VX46R 4" round in-ceiling speaker pairs precise driver engineering with an unobtrusive aesthetic, making it well suited to boardrooms, conference rooms, and other commercial interiors. A 4.5" Kevlar/Nomex woofer with a rubber surround handles midrange and low frequencies, while a 0.75" ferrofluid-cooled ceramic dome tweeter with an acoustic back chamber delivers clear high-frequency detail. Sonance's sinusoidal textured waveguide broadens dispersion so coverage stays consistent across the room. The coincident pivoting design lets installers aim both drivers toward the primary seating area, improving intelligibility for speech and program material alike. A frequency response of 58Hz to 20kHz reproduces voice and music with even tonal balance at the speaker's rated 90dB sensitivity. The Flex Frame mounting system with three RotoLock clamps supports one- or two-stage installation across a range of ceiling constructions. This pair ships with the round micro trim grille; square and trimless grille options are available separately. Designed for low-impedance distributed audio, the VX46R works with most commercial amplifiers and matrix audio processors. Explore the full Sonance commercial audio collection for matched components across your installation. Note: this version does not include square grilles.

Key Features

• 4" round in-ceiling design — Compact footprint integrates into commercial ceilings with minimal visual impact.
• Micro trim grille — Near-flush grille creates a clean, low-profile ceiling appearance.
• Coincident pivoting drivers — Woofer and tweeter pivot together to aim sound at the listening area.
• Sinusoidal textured waveguide — Widens dispersion for consistent coverage across the room.
• Ferrofluid-cooled ceramic dome tweeter — 0.75" tweeter with acoustic back chamber reproduces clear high-frequency detail.
• Kevlar/Nomex woofer — 4.5" cone with rubber surround delivers controlled midrange and bass.
• Flex Frame mounting — Three RotoLock clamps support one- or two-stage installation in various ceiling types.
• 8-ohm operation — Compatible with standard low-impedance commercial amplifiers.

Typical Applications

• Boardrooms and conference rooms requiring discreet, intelligible audio
• Huddle rooms and commercial meeting spaces
• Training rooms and multi-purpose rooms
• House of worship and government spaces with architectural ceiling finishes

Technical Specifications

Frequently Asked Questions

Is the Sonance VX46R sold individually or as a pair?
This listing is for a pair (SKU 96010), making it ready for stereo or multi-zone commercial coverage.

What size ceiling cutout does the VX46R require?
Each speaker needs a 5.875" (149mm) diameter cutout, with a mounting depth of 4.61" or 5.75" when used with the retrofit enclosure.

Does this version include square grilles?
No. This version ships with the round micro trim grille only. Square micro trim and trimless grille options are available separately.

Is the VX46R compatible with 70V/100V systems?
The VX46R is an 8-ohm low-impedance speaker. For constant-voltage distributed audio, add an appropriate 70V/100V transformer.

What warranty applies to the VX46R?
The VX46R is covered by Sonance's manufacturer warranty. Contact Creation Networks for current warranty terms and installation support.
