Sonance Pro Series PS-C63RTLP 6" Low Profile In-Ceiling Speaker (Each) - White

Product Overview

The Sonance PS-C63RTLP is a 6-inch low profile in-ceiling speaker engineered for installations with limited plenum depth. Its shallow 4.37-inch (111 mm) construction fits beneath HVAC ducting and other obstructions where standard ceiling speakers will not. A high-excursion 6.5-inch woofer and pivoting tweeter deliver full-range audio despite the compact enclosure. The white, bezel-less grille keeps the finished ceiling clean and unobtrusive.

Product Description

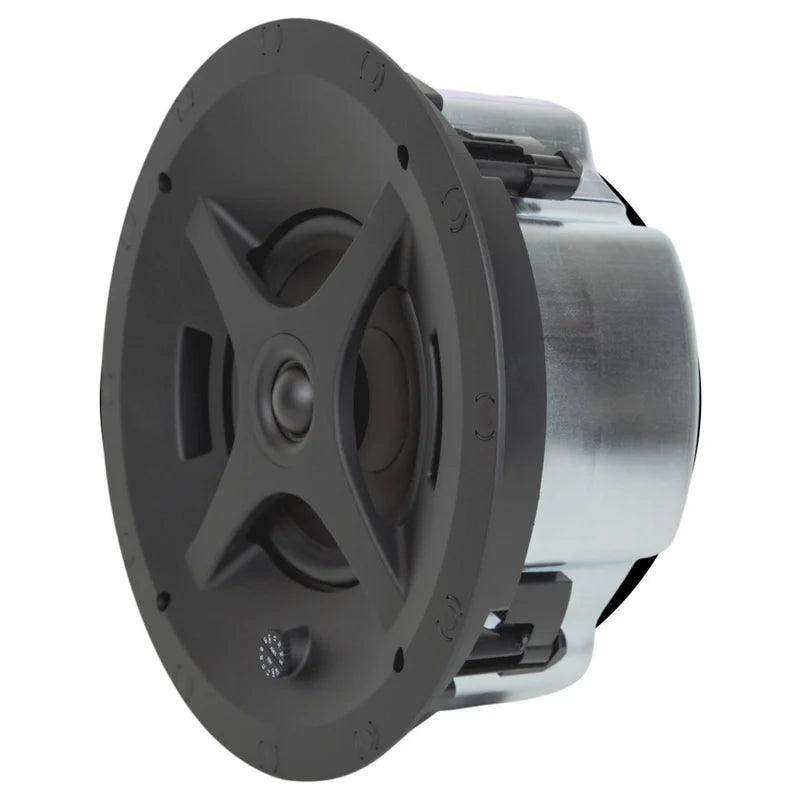

The Sonance PS-C63RTLP low profile in-ceiling speaker is purpose-built for custom commercial installations where depth is constrained. Its sealed metal enclosure measures just 4.37 inches deep, allowing integration under ductwork and in tight ceiling cavities while preserving sound quality. A high-excursion 6.5-inch polypropylene woofer provides low bass extension even at higher volumes, and a pivoting chambered 1-inch soft dome tweeter can be aimed for accurate coverage when speaker placement is compromised.

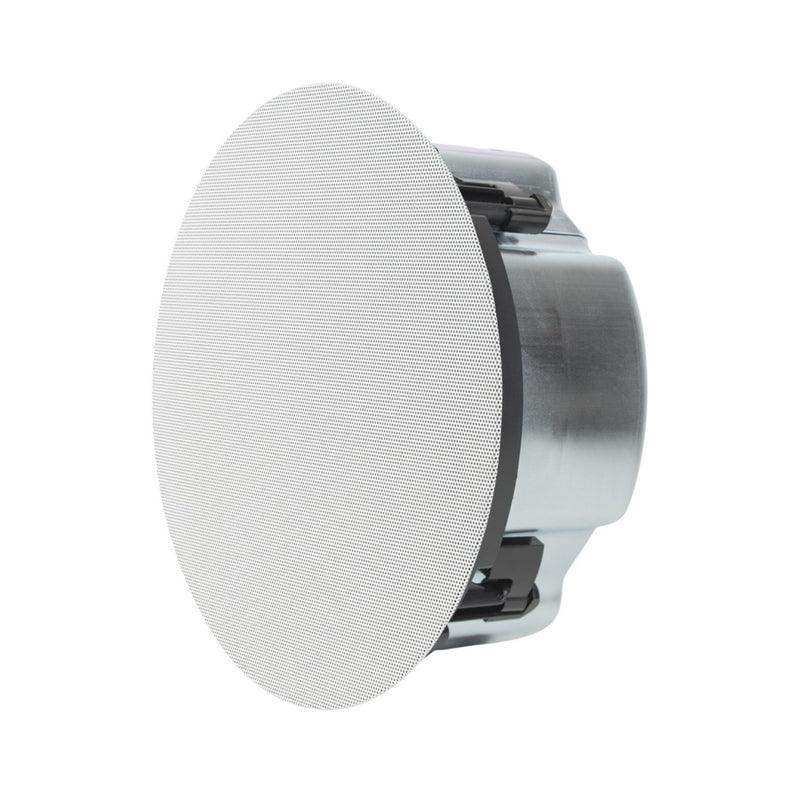

The one-piece bezel-less grille is magnetically secured for fast installation and minimal visual distraction, and it supports a one-step painting process so the speaker can match the ceiling finish. For spaces with square downlights or HVAC grilles, an optional Square Grille Adapter maintains consistent sightlines across the ceiling plane. These details make the PS-C63RTLP a strong fit for design-conscious commercial interiors.

Installation is supported by included mounting hardware and step-by-step instructions, allowing professional results without specialized tooling. The sealed metal enclosure includes back and side knock-outs, a removable Euroblock connector with loop-through wiring, and seismic attachment points for stability and code compliance. The PS-C63RTLP is certified to UL 1480 and UL 2043, the latter required for plenum-rated air-handling spaces. Browse the full Sonance commercial audio collection at Creation Networks. This model is designed for use with the Large Flex Bracket (92247).

Key Features

• Shallow 4.37" depth — Fits restricted spaces and areas beneath HVAC ducting where standard speakers cannot.
• 6.5" polypropylene woofer — High-excursion driver delivers low bass extension at higher volumes.
• Pivoting 1" soft dome tweeter — Chambered, aimable tweeter maintains accurate coverage when placement is compromised.
• Bezel-less magnetic grille — One-piece, paintable grille installs quickly and minimizes visual distraction.
• Sealed metal enclosure — Includes back and side knock-outs, Euroblock loop-through connector, and seismic attachment.
• Optional Square Grille Adapter — Matches square downlights and HVAC grilles for consistent sightlines.
• UL 1480 and UL 2043 certified — Rated for commercial sound and plenum air-handling spaces.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Commercial meeting space
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Why choose a low profile speaker?
The 4.37-inch sealed enclosure fits ceilings with limited depth, including areas beneath HVAC ducting where standard in-ceiling speakers will not physically fit.

Can the tweeter be aimed?
Yes. The pivoting 1-inch soft dome tweeter can be directed to maintain accurate coverage when speaker placement is constrained.

Is it suitable for plenum spaces?
Yes. The PS-C63RTLP is certified to UL 2043 in addition to UL 1480, making it appropriate for plenum air-handling spaces.

What bracket does it use?
This model is designed for use with the Large Flex Bracket (92247).

Is it sold individually?
Yes. This listing is for each unit. Contact the Creation Networks team for project support or volume pricing.
