Sonance - FIRE-RATED SHALLOW BACKCAN (Each) - Light Blue

Product Overview

The Sonance fire-rated shallow backcan adds code-compliant fire protection to hardwired in-wall speaker installations. This shallow-depth enclosure is engineered for select Sonance Visual Performance and Visual Experience rectangle in-wall speakers, fitting tight wall cavities where standard back boxes will not. When installed with the appropriate Sonance flex bracket in a gypsum board wall assembly, it delivers a one-hour fire rating. Snap2it wire clamps streamline the wiring and mounting process for the installer.

Product Description

This fire-rated shallow backcan is a single-piece acoustic and safety enclosure for commercial and residential in-wall speaker projects that must meet fire-rated wall assembly requirements. The painted steel construction is lined with ceramic fiber insulation, providing both structural durability and the thermal barrier required for the one-hour fire rating. It carries ratings in accordance with ASTM E814-06, ASTM E119, UL 263, NFPA 251, and CN/ULC-S101 when installed as part of a qualifying gypsum board wall assembly with an appropriate Sonance flex bracket. The enclosure is compatible with Sonance Visual Performance models VP42, VP46, VP48, VP62, VP66, VP68, VP66 SUR/SST, and VP66 TL, plus Visual Experience models VX42, VX46, VX62, VX66, and VX66 SST. Integrated Snap2it wire clamps allow quick, tool-light cable termination and a secure hold on the speaker wire. The shallow profile suits applications where wall depth is limited but a fire-rated backcan is still required by code. This unit is supplied as a single backcan and is not compatible with large VP models. Browse the full Sonance commercial audio collection at Creation Networks to pair this backcan with matching speakers and flex brackets.

Key Features

• One-hour fire rating — Provides a one-hour rating per ASTM E814-06, ASTM E119, UL 263, NFPA 251, and CN/ULC-S101 when installed in a qualifying gypsum board wall assembly with an appropriate Sonance flex bracket.

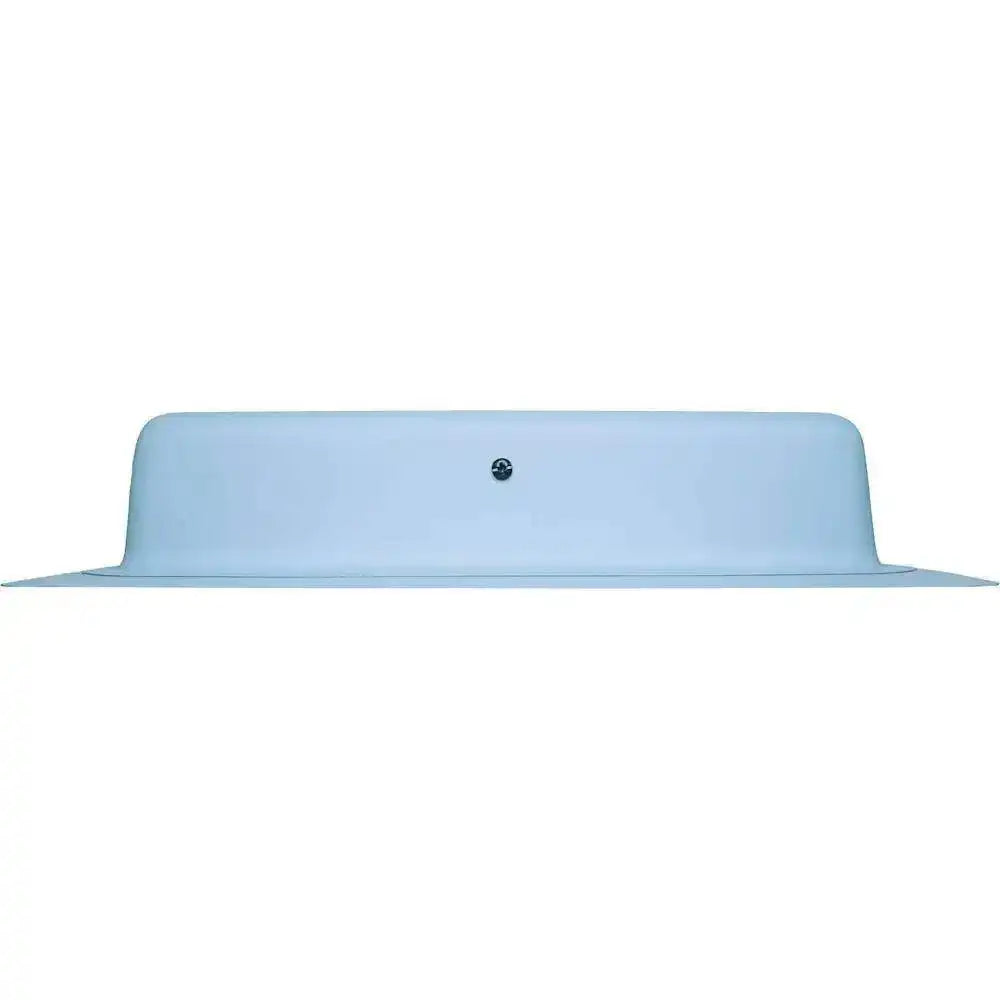

• Shallow-depth enclosure — The reduced-depth profile fits tight wall cavities where deeper back boxes cannot be installed.

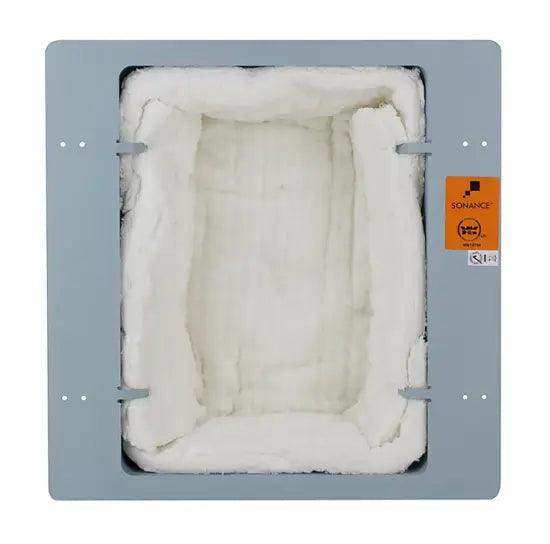

• Painted steel with ceramic fiber — Steel construction lined with ceramic fiber insulation provides durability and the thermal barrier needed for the fire rating.
• Snap2it wire clamps — Integrated clamps deliver quick speaker-wire termination and a secure hold during installation.
• Broad speaker compatibility — Fits select Sonance Visual Performance and Visual Experience rectangle in-wall models for a precise acoustic seal.
• Sold individually — Supplied as a single backcan for flexible per-location ordering.

Technical Specifications
