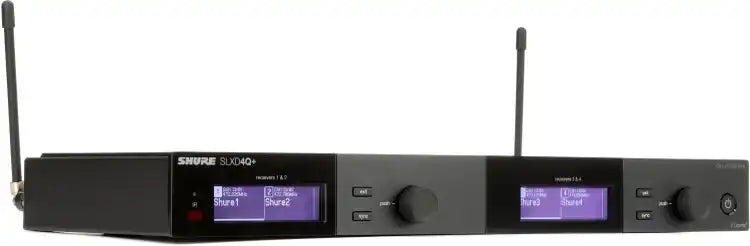

Shure SLXD4Q+ Quad Wireless Receiver – 4-Channel G57 Digital Rack Receiver
Shure SLXD4Q+ Quad Wireless Receiver – 4-Channel G57 Digital Rack Receiver is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure SLXD4Q+ Quad Wireless Receiver – 4-Channel G57 Digital Rack R...
The Shure SLXD4Q+ Quad Wireless Receiver in the G57 band is a powerful all-metal, single-rack unit designed for live sound, corporate AV, houses of worship, or any environment requiring multiple wireless channels with compact deployment. Built for use with Shure SLX-D transmitters, it delivers four discrete channels in one rack space, offering streamlined rack setups without sacrificing audio quality or RF performance.
With a wide tuning range of 138 MHz (G57 band: 470-608 MHz), it provides flexible frequency planning and helps avoid interference, especially in RF-crowded environments. The system features Digital Predictive Switching Diversity to maintain clean signal paths, reducing dropouts before they occur. The SLXD4Q+ offers 24-bit digital audio resolution with a dynamic range of around 118 dB, ensuring clean, transparent sound with low distortion.
Outputs include 4 XLRs plus 4 balanced 1/4-inch jacks, allowing direct feed to mixers, monitors, or other gear. There are also dual Ethernet ports for remote control and monitoring. Summing functionality allows for combining audio outputs to match available mixer inputs (4, 3, 2, or 1), simplifying smaller shows or constrained front-of-house racks. RF Cascading lets two units be paired to create up to an 8-channel system without needing extra accessories. The SLXD4Q+ is rugged, dependable, and engineered to be deployed from portable racks to fixed installs.
Features Chart
| Feature | Benefit / Description |
|---|---|
| 4 Channels in 1U Rackmount | Saves rack space while providing multiple wireless channels |
| Wide 138 MHz Tuning Range (G57) | Flexible frequency assignments; better adaptability in crowded RF conditions |
| Digital Predictive Switching Diversity | Maintains clean RF signal; reduces dropouts |
| 24-bit Digital Audio & 118 dB Dynamic Range | High fidelity and clarity in audio output |
| 4 XLR + 4 1/4-inch Outputs | Flexible connectivity to mixers, monitors, or stage gear |
| Dual Ethernet Ports | Remote control and monitoring; integration into networked AV environments |
| Audio Summing Options | Combine channels to match mixer or FOH input capacity |
| RF Cascading Capability | Scale up system to 8 channels using two units |
| Bias Voltage for Antennas | Supports active directional antennas without extra power supplies |
| Detachable Antennas | Easier rigging and transport; better antenna placement options |
Specifications Table
| Specification | Value |
|---|---|
| Number of Channels | 4 independent SLX-D wireless channels |
| Frequency Band (G57) | 470-608 MHz |
| Tuning Bandwidth | 138 MHz |
| RF Diversity | Digital Predictive Switching Diversity |
| Audio Format | 24-bit digital audio |
| Dynamic Range | ~118 dB |
| Latency | ~3.2 ms |
| Output Connectors | 4 × XLR (mic/line switchable), 4 × 1/4-inch balanced |
| Gain Range | -18 dB to +42 dB in 1 dB steps |
| Frequency Response | 20 Hz to 20 kHz (microphone dependent) |
| Operating Range (Line of Sight) | ~100 m / 330 ft |
| RF Sensitivity | -97 dBm at 10⁻⁵ BER |
| RF Input Connectors | BNC, detachable antennas |
| Bias Voltage for Antennas | 15 V switchable per antenna |
| Power Requirements | 15 V DC, approx. 0.9-1.0 A |
| Housing | Galvanized steel, rugged metal |
| Dimensions (H × W × D) | 1.65 × 15.47 × 5.98 in. (42 × 393 × 152 mm) |
| Weight (without antennas) | ~1.75 kg (approx. 3.86 lbs) |
| Operating Temperature | −18 °C to +50 °C |
