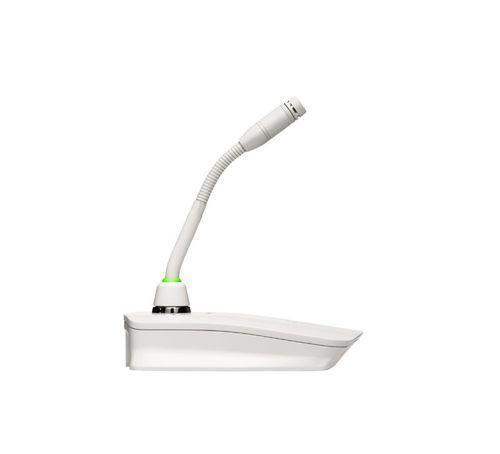

Shure ULXD8 Digital Wireless Gooseneck Base Transmitter with No Mic (White, G50) - ULXD8W=-G50

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ULXD8W=-G50
No reviews
Price:
$553.00 $774.00

Description

Spec Sheet

The white Shure ULXD8W=-G50 is a digital wireless base transmitter for Shure Microflex gooseneck microphones (available separately) and is compatible with ULX-D and QLX-D receivers. The gooseneck design allows you to place the mic close to the speaker and above the table surface, away from paper rustling or other noises. Ideal for use where wired mics are impractical, this tabletop transmitter is designed for quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.

With rugged, yet lightweight plastic housing, the ULXD8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it suitable for use in large meetings at conference and convention centers.

 Clear, Accurate Audio with Interchangeable Gooseneck Mics
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range.
  • The base fits 5", 10", and 15" Microflex Series gooseneck microphones with either one or two bendable sections and a choice of polar patterns to suit different coverage needs— simply screw the mic onto the base.
 User-Friendly Features in a Discreet Housing
  • The mute button can be configured for momentary or push-on/push-off operation, with a bicolor LED indicating the mute status.
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • The high-pass filter reduces low-frequency noise caused by table vibration or air-conditioning systems.
  • A power lockout function disables the power switch and prevents accidental changes during events.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
  • Low latency makes the ULXD8 ideal for meetings that require live sound reinforcement.
  • The transmitter is compatible with the full line of Shure's antenna-distribution components.
 Convenient Power Management Options
  • The ULXD8 operates for up to 8 hours and 20 minutes on two AA batteries.
  • An optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • A USB port allows for docked battery charging with the SBC450 (4-bay) and SBC850 (8-bay) networked charging stations (available separately).
  • The charging stations enable remote power monitoring via Shure's Wireless Workbench software.
  • For ULX-D and QLX-D Digital Wireless
  • Works with Shure Microflex Gooseneck Mic
  • 1/10/20mW RF Output Power
  • Configurable Mute Button with Status LED
  • High-Pass Filter Reduces Noise
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 9 Hr with SB900A Rechargeable Battery

Shure ULXD8 Specs
Wireless Technology Digital UHF
RF Frequency Band G50: 470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 3 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Gooseneck Base
RF Output Power 1 / 10 / 20 mW
Audio I/O 1 x Proprietary 6-Pin Female Unbalanced Input (Lockable)
Muting Programmable Mute Switch
Gain Range 0 to 21 dB (3 dB Steps)
Signal Processing High-Pass Filter:
-12 dB at 150 Hz, 12 dB/Octave Slope
Sync Method IR
Antenna 1 x Internal
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included)
Approx. Battery Life Med.:
8 Hours (Alkaline)
Med.:
9 Hours (Lithium Shure SB900A)
USB/Lightning I/O 1 x USB-A (Charging, Host Connection)
Display & Indicators 1 x LED (Mute)
Housing Plastic
Operating Temperature 0 to 122°F / -17 to 50°C
Dimensions 3.1 x 1.6 x 5.4" / 78 x 41 x 137 mm
Weight 10.3 oz / 292 g (with Batteries)
