Shure ULXD6/O Digital Wireless Omni Boundary Microphone Transmitter (White,J50A) - ULXD6W/O-J50A

Save 29%
Shure SKU: ULXD6W/O=-J50A
No reviews
Price:
$609.00 $852.00

Description

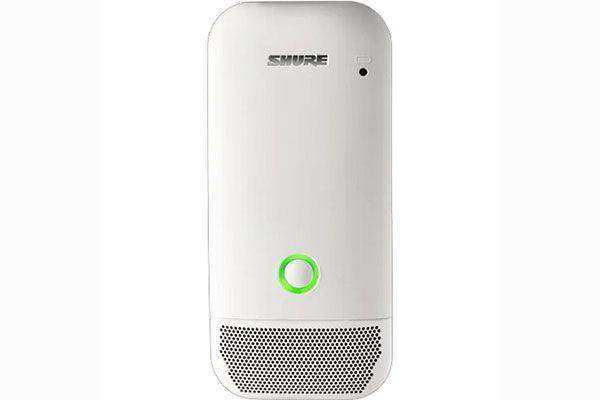

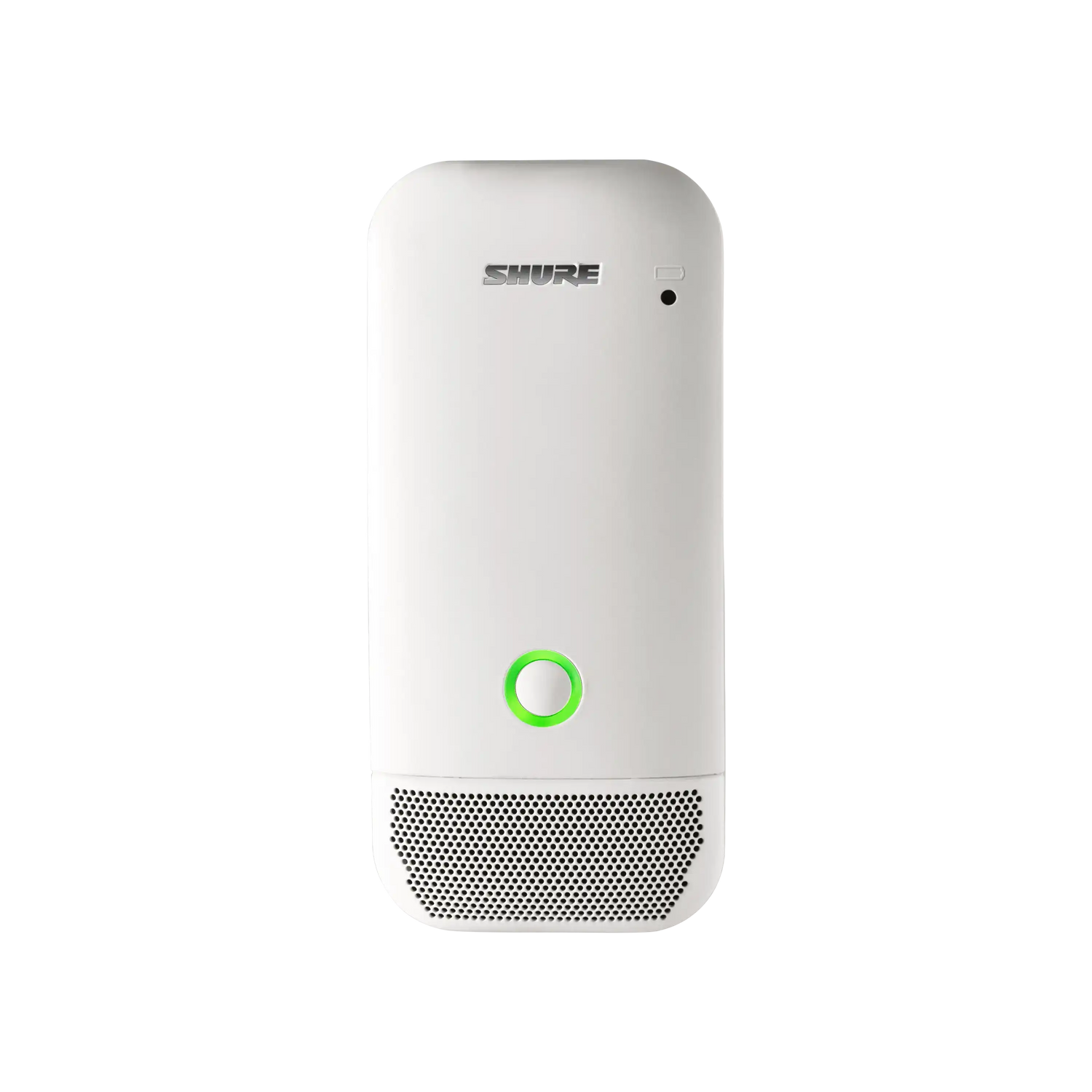

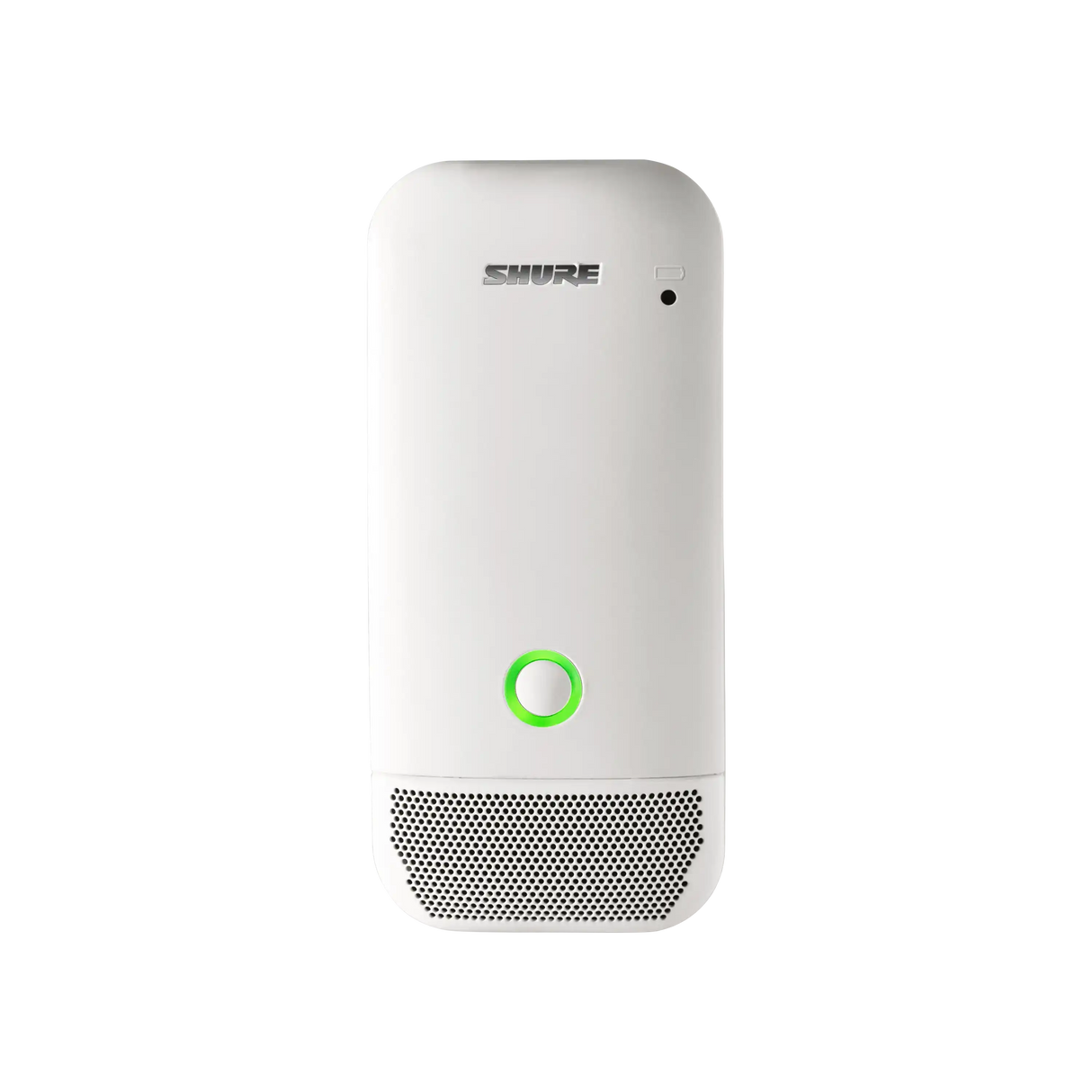

The white Shure ULXD6/O is a digital tabletop transmitter equipped with an omnidirectional boundary mic and compatible with ULX-D and QLX-D receivers. The omnidirectional polar pattern provides 360° pickup, allowing several speakers at a small table to use a single mic. The unit's low profile is ideal for applications such as video-conferencing where minimum visibility is required. A smart choice for situations where wired mics are impractical, this tabletop transmitter enables quick setup and tear down, and can be put away in a docking station (available separately) for storing and charging when the mic is not in use.

With rugged, yet lightweight plastic housing, the ULXD6/O transmitter delivers pristine 24-bit/48 kHz audio quality and RF performance over its entire 330' range. It offers AES 256-bit encryption for secure transmission and advanced rechargeability options, making it suitable for use in large meetings at conference and convention centers.

User-Friendly Features in a Low-Profile Housing
  • The mute button can be configured for momentary or push-on/push-off operation and features a bicolor LED indicating the mute status.
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • The high-pass filter reduces low-frequency noise caused by table vibrations or air-conditioning systems.
  • A power lockout function disables the power switch and prevents accidental changes during events.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
  • Low latency makes the ULXD6 ideal for meetings that require live sound reinforcement.
  • The transmitter is compatible with the full line of Shure's antenna-distribution components.
 Convenient Power Management Options
  • The unit operates for up to 8 hours and 40 minutes on two AA batteries.
  • An optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • A USB port allows for docked battery charging with the SBC450 (4-bay) and SBC850 (8-bay) networked charging stations (available separately).
  • The charging stations enable remote power monitoring via Shure's Wireless Workbench software.
Wireless Technology Digital UHF
RF Frequency Band J50A: 572 to 608 MHz
614 to 616 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 3 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Tabletop
RF Output Power 1 / 10 / 20 mW
Audio I/O None
Muting Programmable Mute Switch
Auto-Level Control No
Gain Range 0 to 21 dB (3 dB Steps)
Signal Processing High-Pass Filter:
-12 dB at 150 Hz, 12 dB/Octave Slope
Sync Method IR
Antenna 1 x Internal
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included)
Approx. Battery Life Med.:
8 Hours (Alkaline)
Med.:
9 Hours (Lithium Shure SB900A)
USB/Lightning Connectivity 1 x USB-A (Charging, Host Connection)
Display & Indicators 1 x LED (Mute)
Housing Plastic
Dimensions 2.4 x 1.3 x 4.5" / 62 x 34 x 114 mm
Weight 8.5 oz / 241 g (with Batteries)
Microphone
Microphone Type Boundary
Color White
Sound Field Mono
Polar Pattern Omnidirectional
