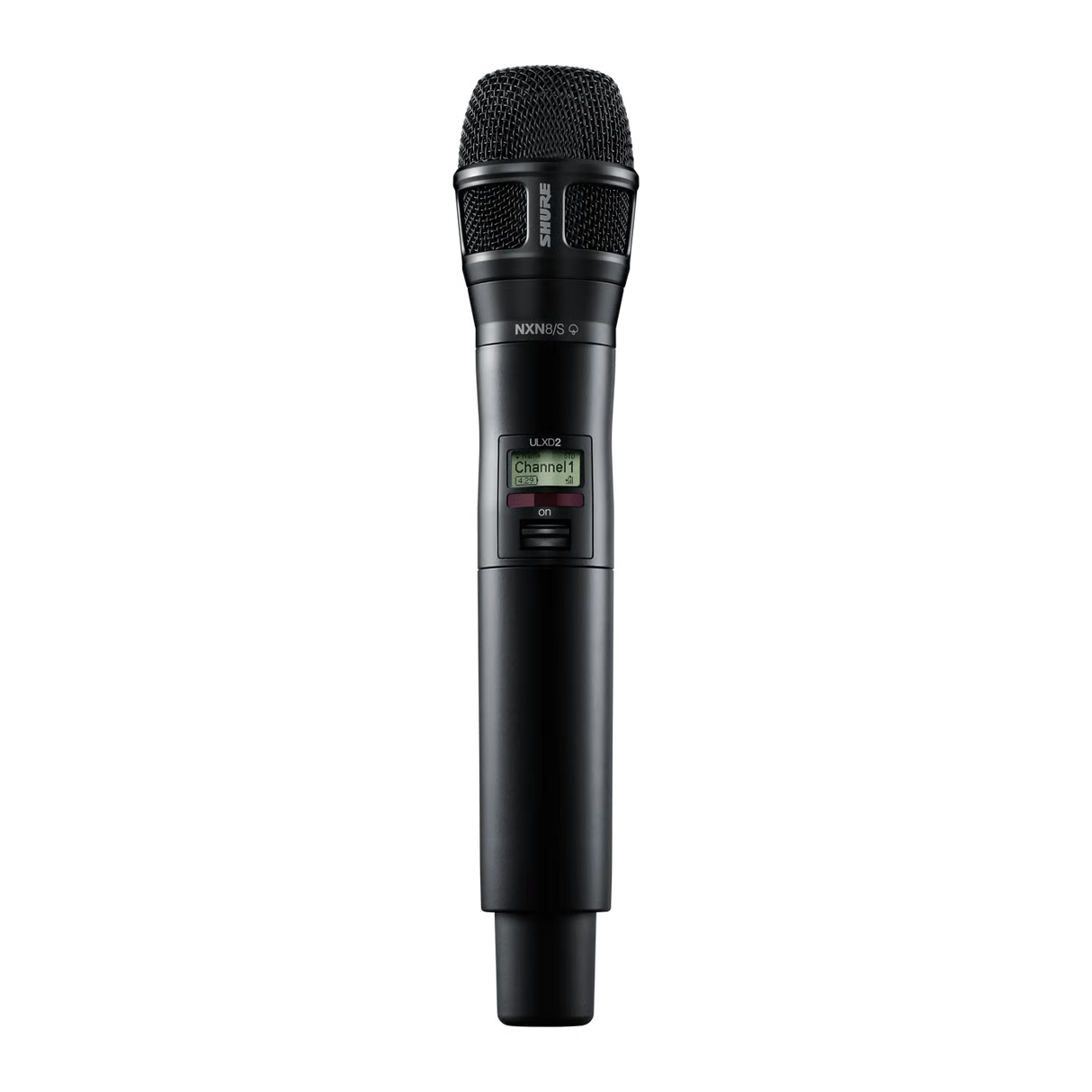

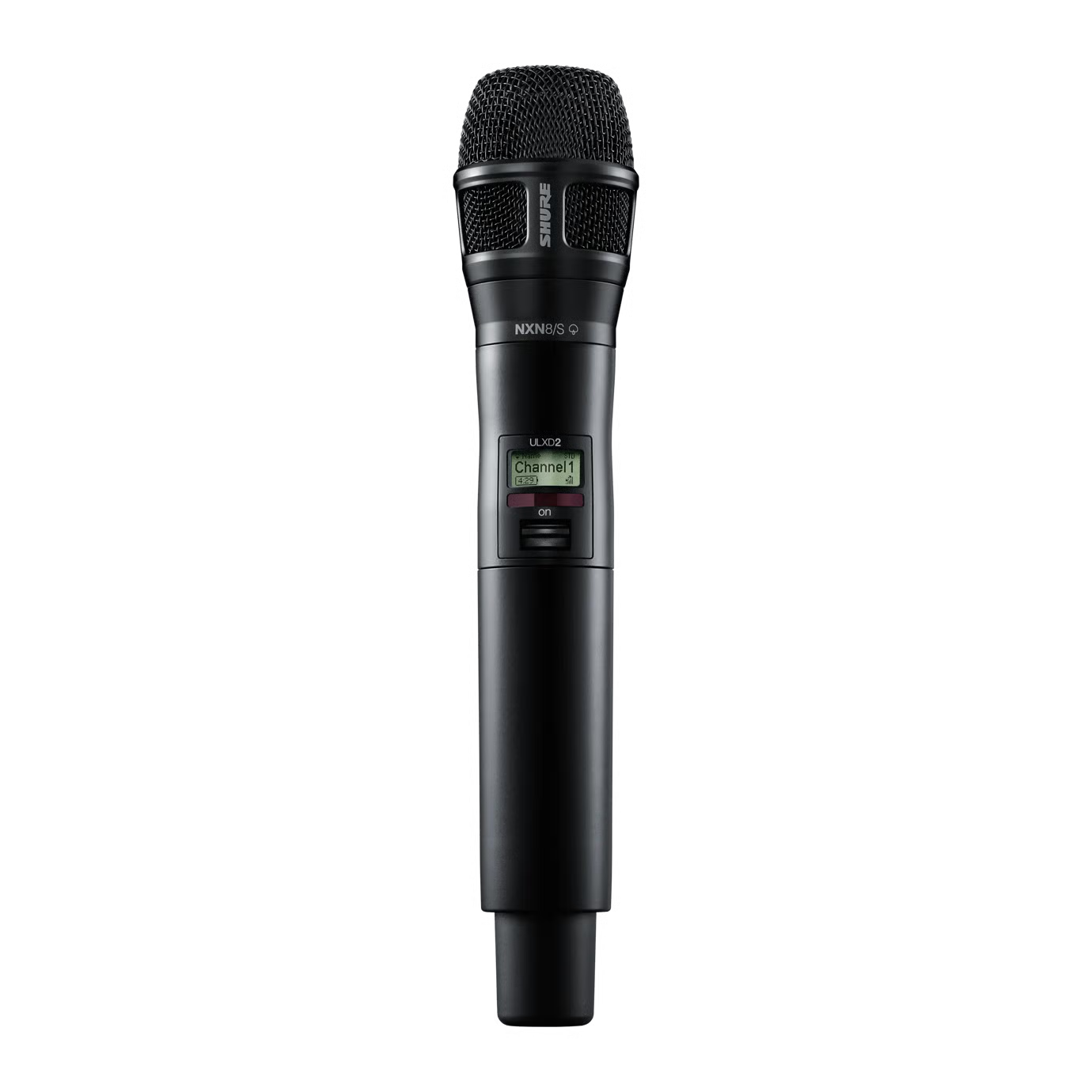

Shure ULXD2/N8SB Digital Handheld Wireless Transmitter with Nexadyne 8/S Capsule G57 Band

The Shure ULXD2/N8SB delivers premium 24-bit/48 kHz digital wireless vocal performance with uncompromising audio clarity and RF reliability for professional live sound, broadcast, and installed applications. Equipped with the Nexadyne 8/S supercardioid dynamic microphone capsule featuring patented Revonic dual-engine transducer technology, it provides focused, natural vocal reproduction with strong off-axis rejection and minimized handling noise. Operating in the G57 band (470–608 MHz) with wide tuning, the transmitter supports AES 256-bit encryption for secure transmission and Shure Gain Ranging that optimizes dynamic range without manual transmitter adjustments.

Constructed with a rugged machined aluminum body, the ULXD2 includes a backlit LCD for intuitive menu navigation, selectable RF output power (1, 10, or 20 mW), frequency and power lockout, and an integrated helical antenna. It offers over 12 hours of runtime with the optional SB900C lithium-ion rechargeable battery (precision metering in hours and minutes) or up to 8 hours with two AA alkaline batteries. The transmitter mute mode repurposes the power switch for audio muting while maintaining RF presence. It integrates seamlessly with ULX-D receivers and supports Dante networking when paired with compatible ULX-D components.

This handheld transmitter excels in high-channel-count environments such as theaters, houses of worship, corporate events, and touring productions where secure, high-fidelity vocal wireless is required with minimal setup and maximum control.

FAQ

• What is the Nexadyne 8/S capsule? It is a supercardioid dynamic microphone with patented Revonic dual-engine transducer technology that delivers focused vocals, strong off-axis rejection, and minimized handling noise.
• How long does the battery last? The optional SB900C lithium-ion rechargeable battery provides over 12 hours of runtime with precision metering; two AA alkaline batteries offer up to 8–9 hours.
• Is the transmitter compatible with ULX-D receivers? Yes, it pairs seamlessly with all ULX-D digital wireless receivers in matching frequency bands.
• What is the typical operating range? Reliable performance extends up to 330 feet (100 m) line of sight under standard conditions.
• Does the system support secure transmission? AES 256-bit encryption is built-in for protected audio in applications requiring security.
• How is setup performed? Quick IR sync links the transmitter to the receiver, with automatic frequency scanning available on the receiver for clear channels.
• Can the transmitter be used with other Shure capsules? Yes, the ULXD2 accepts interchangeable Shure wireless microphone capsules for different sound signatures.
