Shure ULXD2/K8N Digital Handheld Wireless Microphone Transmitter with KSM8 Capsule (Nickel)

Shure SKU: ULXD2/K8N=-G50
No reviews

Model: ULXD2/K8N=-G50 (470 to 534 MHz)
Price:
Sale price$1,169.00 Regular price$1,636.00

Description

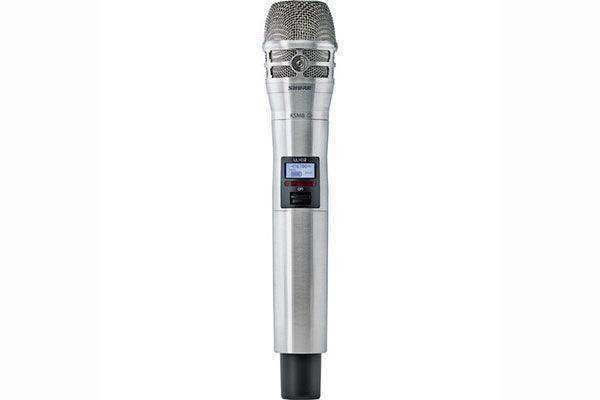

The brushed-nickel Shure ULXD2/K8 is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with a KSM8 dual-diaphragm dynamic capsule that minimizes proximity effect, delivering a consistent sound even when the distance between the mic and the sound source varies. The cardioid polar pattern provides a clean, richly detailed signal with reduced feedback, great for speech and vocals in live venues.

With a rugged, yet lightweight aluminum housing, the ULXD2/K8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule
The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
The KSM8's hardened, dent-resistant grille is lined with hydrophobic woven fabric, which rejects moisture as well as plosives.
The interchangeable capsule design allows you to replace the KSM8 capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C capsules, and more.

User-Friendly Features in a Rugged Housing
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
The power button conveniently doubles as mute switch, while preserving RF lock.
Frequency and power lockout functions prevent accidental or unauthorized changes during events.
A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Convenient Power Management Options
Operates for up to 11 hours on two AA batteries.
Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

  • For ULX-D and QLX-D Digital Systems
  • KSM8 Dynamic Cardioid Mic, Nickel
  • Dual-Diaphragm Capsule
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Shure ULXD2 Specs

Wireless Technology Digital UHF
RF Frequency Band -
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 1 / 10 / 20 mW (Switchable)
Audio I/O None
Muting Off/On Switch
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.9 x 2" / 278 x 51 mm
Weight 12.3 oz / 348 g
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 40 Hz to 16 kHz
Sensitivity -51 dBV/Pa at 1 kHz
Dynamic Range Hypercardioid: 130.8 dB
Wide-Angle Cardioid: 131.3 dB
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 12.7 x 4.9 x 3.4"
