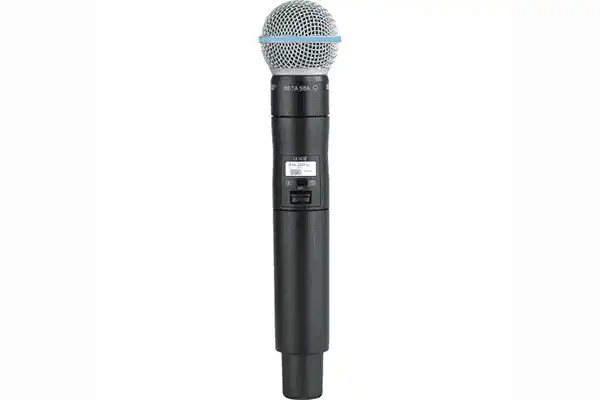

Shure ULXD2-B58 Digital Handheld Wireless Microphone Transmitter with Beta 58A Capsule - (J50A: 572 to 608 + 614 to 616 MHz)

Save 29%
ShureSKU: ULXD2/B58=-J50A
No reviews
Price:
$714.00 $1,000.00

Description

The Shure ULXD2/B58=-J50A is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with a Beta 58A dynamic capsule designed for close-up vocals, with brightened midrange and bass roll-off to control proximity effect. The capsule features a supercardioid polar pattern that ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration.

With a rugged, yet lightweight aluminum housing, the ULXD2/B58 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
  • The Beta 58A features a neodymium magnet for high signal-to-noise output
  • The hardened steel-mesh grille resists wear and abuse
  • The interchangeable capsule design allows you to replace the Beta 58A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, KSM8, SM58, SM86, SM87A, Beta 87A, Beta 87C capsules, and more.
  • For ULX-D and QLX-D Digital Systems
  • Beta 58A Dynamic Supercardioid Mic
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Shure ULXD2 Specs
Wireless Technology Digital UHF
RF Frequency Band J50A: 572 to 608 MHz
614 to 616 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 1 / 10 / 20 mW (Switchable)
Audio I/O None
Muting Off/On Switch
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.9 x 2" / 278 x 51 mm
Weight 12.3 oz / 348 g
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Frequency Range 50 Hz to 16 kHz
Sensitivity -51 dBV/Pa at 1 kHz
Packaging Info
Package Weight 1.39 lb
Box Dimensions (LxWxH) 12.8 x 4.9 x 3.4"
