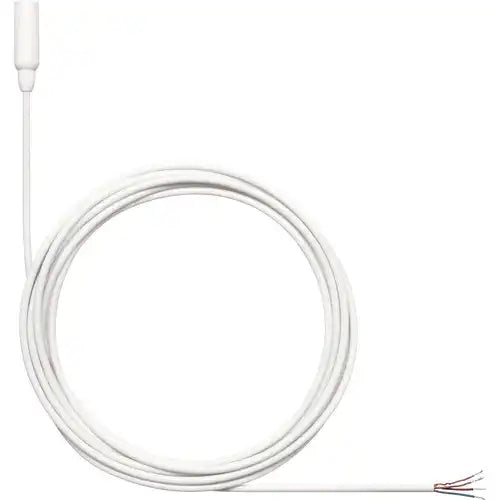

Shure TwinPlex TL48W/O-NC-A Omnidirectional Lavalier Microphone with Accessories (White, Pigtail)
Shure TwinPlex TL48W/O-NC-A Omnidirectional Lavalier Microphone with Accessories (White, Pigtail) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TwinPlex TL48W/O-NC-A Omnidirectional Lavalier Microphone wit...
Hi my name is Phil, the Shure TwinPlex TL48W/O-NC-A is an ultralightweight, omnidirectional lavalier microphone designed for film and television production. Featuring a patent-pending dual-diaphragm condenser capsule, it delivers a full, natural tone with consistent off-axis response, low self-noise, and a wide dynamic range. The microphone includes a paintable, fixed frequency cap that imparts a mid-band boost to enhance speech clarity. An internal hydrophobic woven lining resists sweat and moisture, ensuring reliable performance in various environments. The medical-grade, 1.6 mm diameter cable is kink-resistant and incorporates a redundant ground for enhanced shielding. The microphone comes with a pigtail termination, allowing for custom wiring to preferred connectors (available separately), and includes a bundle of accessories for versatile and secure mounting, along with a case for convenient storage and transport.
Features Chart:
| Feature | Description |
|---|---|
| Microphone Type | Dual-diaphragm condenser, omnidirectional |
| Frequency Response | Tailored for speech/dialogue |
| Sensitivity | -45.0 dBV (5.62 mV) |
| Maximum SPL | 142 dB SPL at 1 kHz (1% THD) |
| Self-Noise | 24.5 dB SPL-A |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Cable Length | 1.67 m (5.5 ft) |
| Connector Type | Pigtail (un-terminated) |
| Color | White |
| Moisture Resistance | Hydrophobic woven lining on frequency cap |

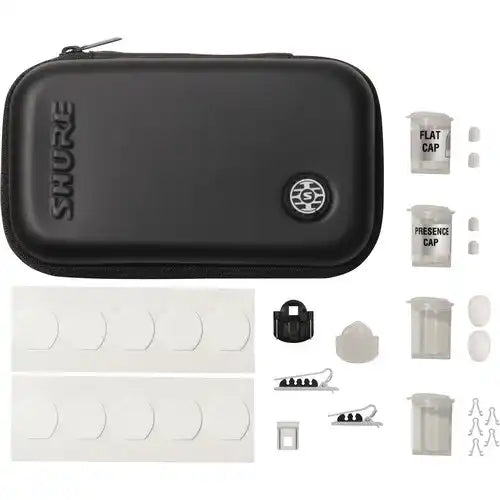

| Included Accessories | Windscreens, tie clips, mounts, storage case |
| Application | Film and TV production |
Specifications Table:
| Specification | Value |
|---|---|
| Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | Tailored for speech/dialogue |
| Sensitivity | -45.0 dBV (5.62 mV) |
| Self-Noise (A-Weighted) | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Output Clipping Level | 3.0 dBV at 1 kHz (1% THD, typical) |
| Maximum SPL | 142.0 dB SPL at 1 kHz (1% THD, typical) |
| Dynamic Range | 117.5 dB |
| Microphone Current Draw | 120 to 240 µA, typical |
| Bias Voltage | 5 VDC (recommended operating voltage) |
| Cable Length | 1.67 m (5.5 ft) |
| Cable Diameter | 1.6 mm |
| Connector Type | Pigtail (un-terminated) |
| Color | White |
| Weight with Cable | 12.0 g (0.42 oz) |
| Included Accessories | Windscreens, tie clips, mounts, storage case |
