Shure TL48T/O-NC-A TwinPlex Omnidirectional Subminiature Lavalier Microphone (Tan, No Connector)
Shure TL48T/O-NC-A TwinPlex Omnidirectional Subminiature Lavalier Microphone (Tan, No Connector) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL48T/O-NC-A TwinPlex Omnidirectional Subminiature Lavalier M...

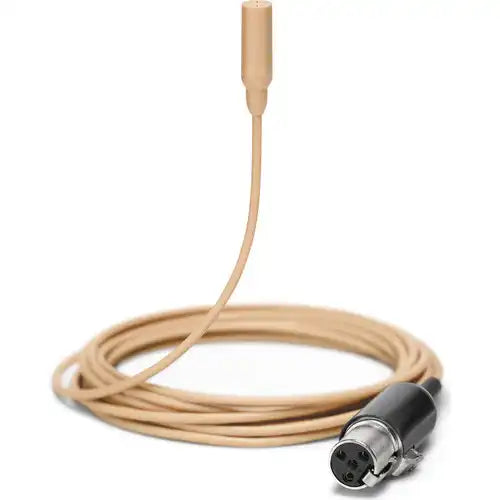

The Shure TL48T/O-NC-A TwinPlex is a subminiature omnidirectional lavalier microphone optimized for dialogue and speech in film, television, broadcast, and professional presentation applications. Its patent-pending dual-diaphragm condenser capsule provides full, natural tone with low self-noise and a wide dynamic range. A fixed mid-frequency boost enhances speech clarity and articulation, making it ideal for capturing clear, intelligible dialogue even in challenging acoustic environments.
The microphone features a durable, paintable 1.6 mm medical-grade cable that resists kinks and maintains flexibility, with a redundant ground for enhanced shielding. An internal hydrophobic woven lining protects against moisture, perspiration, and humidity to prevent signal dropouts. Low sensitivity allows handling of high sound pressure levels without distortion, and the compact size ensures easy concealment for on-camera or discreet use. This no-connector version allows custom termination for specific wireless or wired setups.
| Feature | Benefit |
|---|---|
| Dual-Diaphragm Condenser Capsule | Provides full, natural tone, low self-noise, and wide dynamic range for cleaner audio |
| Omnidirectional Polar Pattern | Delivers consistent off-axis response for accurate capture regardless of source position |
| Tailored Mid-Frequency Boost | Enhances speech clarity and articulation for dialogue applications |
| Internal Hydrophobic Woven Lining | Protects against perspiration, humidity, and moisture to prevent signal dropouts |
| Paintable 1.6 mm Medical-Grade Cable | Offers durability, flexibility, and discreet concealment while resisting kinks |
| Low Sensitivity Design | Handles high SPLs without distortion for versatile use in loud environments |
| Redundant Ground Shielding | Improves RF immunity and signal integrity |
| Subminiature Size | Enables easy concealment for film, TV, and on-camera applications |
| Specification | Details |
|---|---|
| Microphone Type | Subminiature Omnidirectional Lavalier |
| Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -45 dBV/Pa (5.62 mV) at 1 kHz |
| Maximum SPL | 142 dB SPL (1 kHz at 1% THD) |
| Dynamic Range | 117.5 dB |
| Equivalent Noise Level | 24.5 dB SPL-A (self-noise) |
| Connector | No Connector (bare wire / NC) |
| Cable Length | 66 inches (1.68 m) |
| Cable Diameter | 1.6 mm (paintable) |
| Color | Tan |
| Weight | 0.42 oz (12 g) |
| Aspect | Shure TL48T/O-NC-A | Shure TL48W/O-MTQG-A | Shure TL48T/O-LEMO-A |
|---|---|---|---|
| Connector | No Connector (bare wire) | TA4F (MTQG) | LEMO 3-Pin |
| Color | Tan | White | Tan |
| Capsule Design | Dual-diaphragm TwinPlex | Dual-diaphragm TwinPlex | Dual-diaphragm TwinPlex |
| Tailored Response | Mid-frequency boost for speech | Mid-frequency boost for speech | Mid-frequency boost for speech |
| Cable Diameter | 1.6 mm (paintable) | 1.6 mm (paintable) | 1.6 mm (paintable) |
| Self-Noise | 24.5 dB SPL-A | 24.5 dB SPL-A | 24.5 dB SPL-A |
| Maximum SPL | 142 dB | 142 dB | 142 dB |
| Primary Application | Dialogue / speech in film & TV | Dialogue / speech in film & TV | Dialogue / speech in film & TV |
FAQ
- What applications is the TL48 optimized for? It is tailored for dialogue and speech in film, television, broadcast, and professional presentation environments.
- What connector does this variant have? It features no connector (bare wire / NC) for custom termination to specific wireless or wired setups.
- Is the microphone suitable for high-humidity or sweaty conditions? Yes, the internal hydrophobic woven lining helps prevent signal dropouts from perspiration, humidity, and moisture.
- Can the cable be painted? Yes, the 1.6 mm medical-grade cable is paintable for better concealment.
- What power does it require? It operates on plug-in power (5 V DC) and does not require phantom power.

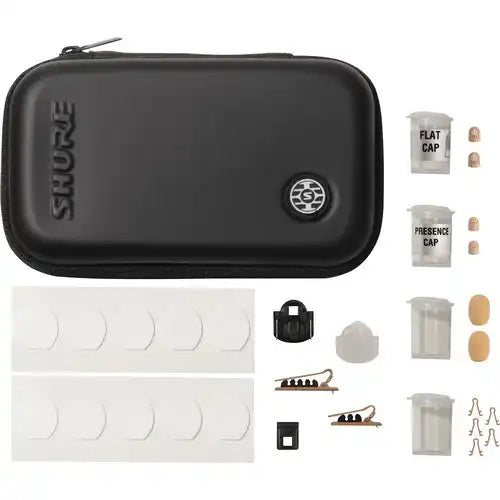

- Are mounting accessories included? Yes, it comes with a bundle of accessories for versatile and secure mounting plus a storage case.
