Shure TL47W/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (White, Low Sensitivity, No Connector)
Shure TL47W/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (White, Low Sensitivity, No Connector) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL47W/O-NC-A TwinPlex Omnidirectional Lavalier Microphone (Wh...

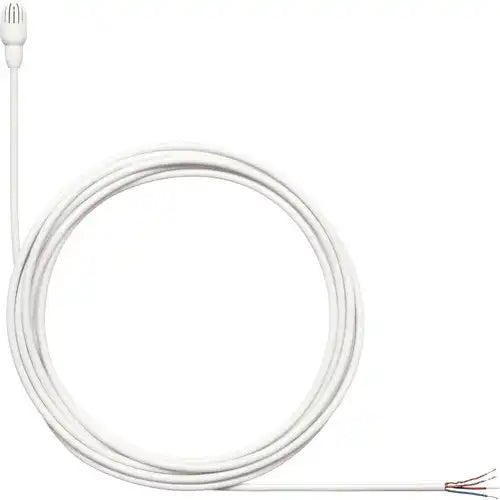

The Shure TL47W/O-NC-A is a subminiature omnidirectional lavalier microphone designed for professional applications where discretion and high-quality audio are paramount. Its patent-pending dual-diaphragm condenser capsule offers a natural, full-range frequency response from 20 Hz to 20 kHz, ensuring clear and accurate sound reproduction. With a low sensitivity of -45.0 dBV, it effectively handles high sound pressure levels up to 142 dB SPL, making it suitable for dynamic environments. The microphone features a 1.6 mm paintable cable that resists kinks and memory effect, ensuring durability and ease of concealment. Its superhydrophobic coating on the frequency caps prevents moisture-related issues, enhancing reliability in sweaty or humid conditions. This version comes with unterminated pigtail leads, allowing for custom wiring to your preferred connector. Ideal for theater, broadcast, and speech applications, the TL47W/O-NC-A combines performance with versatility.
Features
| Feature | Description |
|---|---|
| Microphone Type | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142.0 dB SPL at 1 kHz with 1% THD |
| Dynamic Range | 117.5 dB |
| Cable | 1.6 mm paintable, medical-grade, flexible, and kink-resistant |
| Connector Type | Unterminated pigtail leads for custom wiring |
| Moisture Resistance | Superhydrophobic coating on frequency caps to prevent sweat-outs |
| Applications | Theater, broadcast, speech, and other professional audio applications |
Specifications
| Specification | Value |
|---|---|
| Microphone Capsule | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142.0 dB SPL at 1 kHz with 1% THD |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Cable Material | Medical-grade, flexible, and kink-resistant |
| Connector Type | Unterminated pigtail leads for custom wiring |
| Moisture Resistance | Superhydrophobic coating on frequency caps to prevent sweat-outs |
| Operating Voltage | 5 VDC |
| Current Draw | 120 to 240 µA |
| Weight | 12.0 g (0.42 oz) |
