Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (J52: 558 to 602 + 614 to 616 MHz) - SLXD5=-J52

Product Overview

The Shure SLXD5 is a single-channel portable digital wireless receiver in the J52 frequency band (558–602 + 614–616 MHz), designed for camera-mount or audio bag use in field production, ENG, and live event coverage. Built on the SLX-D platform, it delivers 24-bit digital audio with a 20 Hz–20 kHz frequency response and 118 dB dynamic range for clean, broadcast-grade wireless audio. The compact metal chassis mounts directly to a camera hot shoe via the included cold shoe adapter, making it a reliable choice for videographers, journalists, and AV system integrators deploying wireless audio in mobile production environments.

Product Description

The Shure SLXD5 (J52: 558–602 + 614–616 MHz) uses IR sync to coordinate frequency with compatible SLX-D transmitters, with Multi-Mic Mode for managing large channel configurations at events. The OLED display shows battery life in hours and minutes when used with optional SB903 rechargeable lithium-ion batteries, reducing downtime on long production days. Dual 3.5mm outputs deliver a headphone monitor feed and a switchable line/mic-level output for flexible connection to cameras, audio bags, and portable recorders. The J52 band operates across 558–602 MHz and 614–616 MHz (with a gap at 608–614 MHz per FCC spectrum allocation), offering a wide selection of interference-free UHF channels suitable for dense production environments. For complete wireless systems on the SLX-D platform, see the Shure SLXD14/DL4B Digital Wireless Lavalier System or the Shure SLXD14D Dual-Channel Bodypack System.

Key Features

• 24-Bit Digital Audio — Delivers 24-bit audio with 20 Hz–20 kHz frequency response and 118 dB dynamic range for broadcast-grade clarity in field and event production applications.
• J52 Band (558–602 + 614–616 MHz) — Operates in the J52 UHF band with 1760 selectable frequencies; the split spectrum accounts for the 608–614 MHz guard band reserved for radio astronomy and wireless medical telemetry.

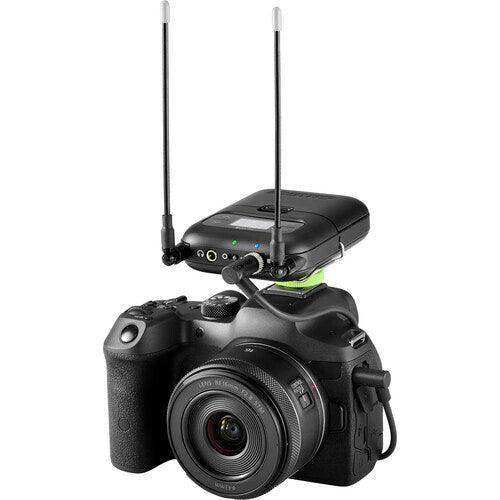

• Camera Hot Shoe Mount — Ships with a cold shoe mount adapter for direct attachment to DSLRs, mirrorless cameras, and cinema cameras, keeping the production rig compact.
• Dual 3.5mm Outputs — Provides both a headphone monitor output and a switchable line/mic-level output for simultaneous monitoring and camera or recorder connection.

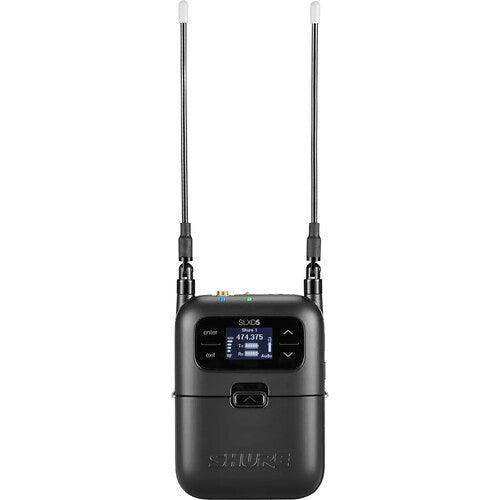

• OLED Display — Shows channel, group, and battery life in hours and minutes (with optional SB903 rechargeable batteries), enabling at-a-glance status checks during live events.
• IR Sync — Rapid transmitter-receiver frequency coordination via infrared sync reduces setup time when deploying multiple SLX-D channels.
• Multi-Mic Mode — Manages large multi-channel wireless configurations for production environments with many simultaneous wireless links.
• Metal Chassis — Durable all-metal construction suited for field production, ENG, and rental inventory in demanding commercial AV environments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which Shure transmitters are compatible with the SLXD5?
The SLXD5 is compatible with all SLX-D system transmitters, including the SLXD1 bodypack, SLXD2 handheld, and SLXD3 plug-on transmitters in the matching J52 frequency band.

Why is the J52 band split (558–602 + 614–616 MHz)?
The gap at 608–614 MHz is an FCC-protected band reserved for radio astronomy and wireless medical telemetry. Wireless microphone systems cannot legally operate in this range, so the J52 band spans around it.

Can the SLXD5 be used in an audio bag?
Yes. While the cold shoe adapter makes it ideal for camera mounting, the SLXD5 works equally well in an audio bag or on a belt with the dual 3.5mm outputs connecting to a portable mixer or recorder.

What batteries does the SLXD5 use?

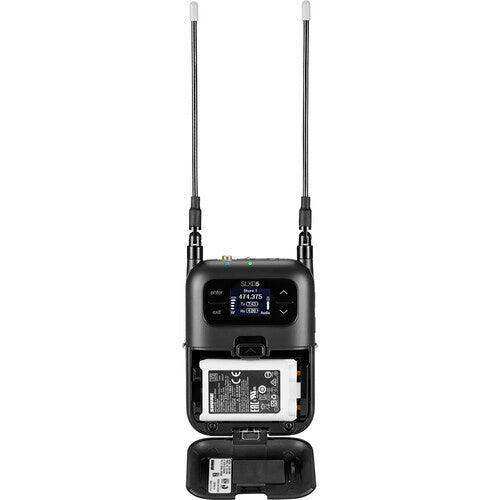

The SLXD5 accepts standard AA batteries. For battery life display in hours and minutes on the OLED screen, Shure's optional SB903 rechargeable lithium-ion battery is required.

What is the difference between G58, H55, and J52 bands?
G58 covers 470–514 MHz, H55 covers 514–558 MHz, and J52 covers 558–602 + 614–616 MHz. Select the band with the least RF interference in your deployment area and match your transmitter to the same band.
