Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (H55: 514 to 558 MHz) - SLXD5=-H55

Product Overview

The Shure SLXD5 is a single-channel portable digital wireless receiver in the H55 frequency band (514–558 MHz), designed for camera-mount or audio bag use in field production, ENG, and live event coverage. Built on the SLX-D platform, it delivers 24-bit digital audio with a 20 Hz–20 kHz frequency response and 118 dB dynamic range for clean, broadcast-grade wireless audio. The compact metal chassis mounts directly to a camera hot shoe via the included cold shoe adapter, making it a reliable choice for videographers, journalists, and AV system integrators deploying wireless audio in mobile production environments.

Product Description

The Shure SLXD5 (H55: 514–558 MHz) uses IR sync to coordinate frequency with compatible SLX-D transmitters, with Multi-Mic Mode for managing large channel configurations at events. The OLED display shows battery life in hours and minutes when used with optional SB903 rechargeable lithium-ion batteries, reducing downtime on long production days. Dual 3.5mm outputs deliver a headphone monitor feed and a switchable line/mic-level output for flexible connection to cameras, audio bags, and portable recorders. With 1760 selectable UHF frequencies across a 44 MHz tuning range in the H55 band, the SLXD5 scans for open channels and syncs to transmitters quickly. For complete wireless systems on the SLX-D platform, see the Shure SLXD14D Dual-Channel Bodypack System (H55) or the Shure SLXD14/DL4B Digital Wireless Lavalier System.

Key Features

• 24-Bit Digital Audio — Delivers 24-bit audio with 20 Hz–20 kHz frequency response and 118 dB dynamic range for broadcast-grade clarity in field and event production applications.
• H55 Band (514–558 MHz) — Operates in the H55 UHF band with a 44 MHz tuning range and 1760 selectable frequencies for reliable interference avoidance in dense RF environments.

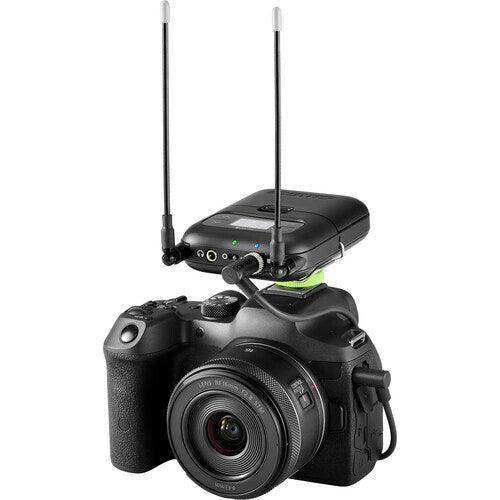

• Camera Hot Shoe Mount — Ships with a cold shoe mount adapter for direct attachment to DSLRs, mirrorless cameras, and cinema cameras, keeping the production rig compact.
• Dual 3.5mm Outputs — Provides both a headphone monitor output and a switchable line/mic-level output for simultaneous monitoring and camera or recorder connection.
• OLED Display — Shows channel, group, and battery life in hours and minutes (with optional SB903 rechargeable batteries), enabling at-a-glance status checks during live events.
• IR Sync — Rapid transmitter-receiver frequency coordination via infrared sync reduces setup time when deploying multiple SLX-D channels.
• Multi-Mic Mode — Manages large multi-channel wireless configurations for production environments with many simultaneous wireless links.
• Metal Chassis — Durable all-metal construction suited for field production, ENG, and rental inventory in demanding commercial AV environments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which Shure transmitters are compatible with the SLXD5?
The SLXD5 is compatible with all SLX-D system transmitters, including the SLXD1 bodypack, SLXD2 handheld, and SLXD3 plug-on transmitters in the matching H55 frequency band.

Can the SLXD5 be used in an audio bag as well as on a camera?
Yes. The SLXD5 includes a cold shoe adapter for camera mounting but also works in an audio bag or on a belt. The dual 3.5mm outputs support flexible connection to cameras, portable recorders, or mixers.

What batteries does the SLXD5 use?
The SLXD5 accepts standard AA batteries. For runtime display in hours and minutes on the OLED screen, Shure’s optional SB903 rechargeable lithium-ion battery is required.

Does the SLXD5 support multi-channel deployments?
Yes. Multi-Mic Mode supports coordinating multiple SLX-D channels simultaneously. The H55 band (514–558 MHz) offers 1,760 selectable frequencies for dense multi-channel configurations.

What is the difference between G58, H55, and J52 bands?
G58 covers 470–514 MHz, H55 covers 514–558 MHz, and J52 covers 558–602 + 614–616 MHz. Select the band with the least RF interference in your area, and ensure your transmitter and receiver share the same band.
