Shure SLXD4D Dual-Channel Digital Wireless Receiver J52 Band
Shure SLXD4D Dual-Channel Digital Wireless Receiver J52 Band is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure SLXD4D Dual-Channel Digital Wireless Receiver J52 Band
The Shure SLXD4D delivers professional dual-channel digital wireless reception with transparent 24-bit audio and over 120 dB dynamic range for natural sound reproduction in live and installed environments. Operating in the J52 band with a 46 MHz tuning range and 1840 selectable frequencies, it provides reliable UHF performance far from Wi-Fi interference. Digital Predictive Switching Diversity ensures solid RF signal integrity without dropouts, while automatic frequency scanning and IR sync enable fast, effortless setup.

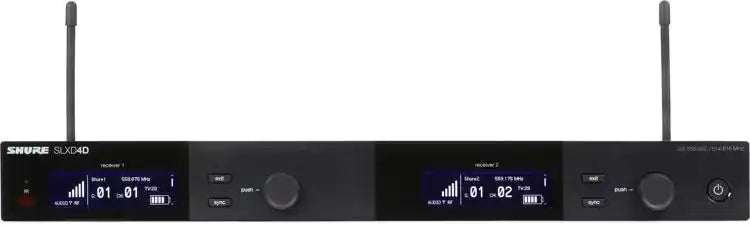

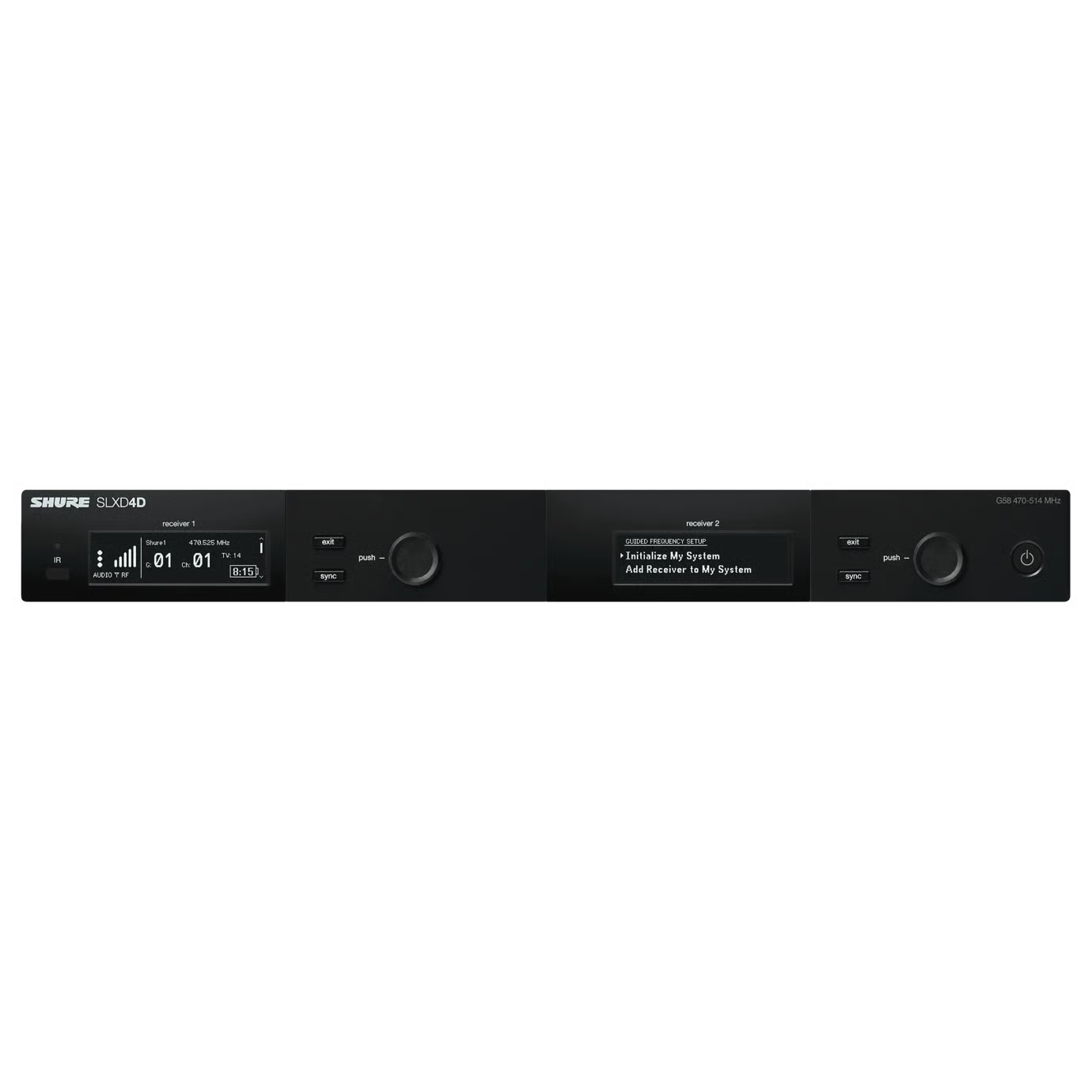

Constructed in a rugged all-metal single-rack 1U chassis with two removable 1/4 wave antennas, the receiver features balanced XLR and 1/4-inch outputs per channel, 60 dB gain control, and Ethernet networking for coordinated multi-system management via Wireless Workbench software. It pairs seamlessly with all SLX-D handheld and bodypack transmitters for vocals, presentations, instruments, and more. Ideal for small to medium venues, houses of worship, conference rooms, and education facilities requiring scalable, dependable wireless audio.
This receiver supports up to 32 compatible systems per band and integrates with Shure antenna distribution options for expanded coverage in complex installations.
| Feature | Benefit |
|---|---|
| Dual-Channel Design | Supports two transmitters simultaneously in a compact single-rack unit for efficient multi-performer or multi-presenter setups |
| 24-Bit Digital Audio | Provides crystal-clear sound with over 120 dB dynamic range and extended 20 Hz to 20 kHz frequency response |
| Digital Predictive Switching Diversity | Maintains uninterrupted RF performance by anticipating and switching to the strongest signal path |
| J52 Band Operation | Delivers 46 MHz tuning range with 1840 frequencies for reliable performance in regulated UHF spectrum |
| Ethernet Networking | Allows remote monitoring, coordinated scanning, and control across multiple receivers using Wireless Workbench |
| Automatic Frequency Scanning and IR Sync | Enables quick, accurate linking of transmitters and receivers with minimal setup time |
| Removable 1/4 Wave Antennas | Supports optional remote antenna placement or distribution systems for improved coverage |
| Balanced XLR and 1/4-Inch Outputs | Offers flexible connectivity to mixers and amplifiers with independent mic/line level switching per channel |
| All-Metal 1U Chassis | Ensures durability for both portable racks and permanent installations |
| 60 dB Gain Control | Allows precise adjustment to match varying input levels without distortion |
| Specification | Details |
|---|---|
| Frequency Band | J52: 558–602 MHz + 614–616 MHz |
| Audio Quality | 24-bit digital, >120 dB dynamic range, 20 Hz–20 kHz frequency response |
| Working Range | Up to 328 feet (100 m) line of sight |
| Latency | 3.2 ms |

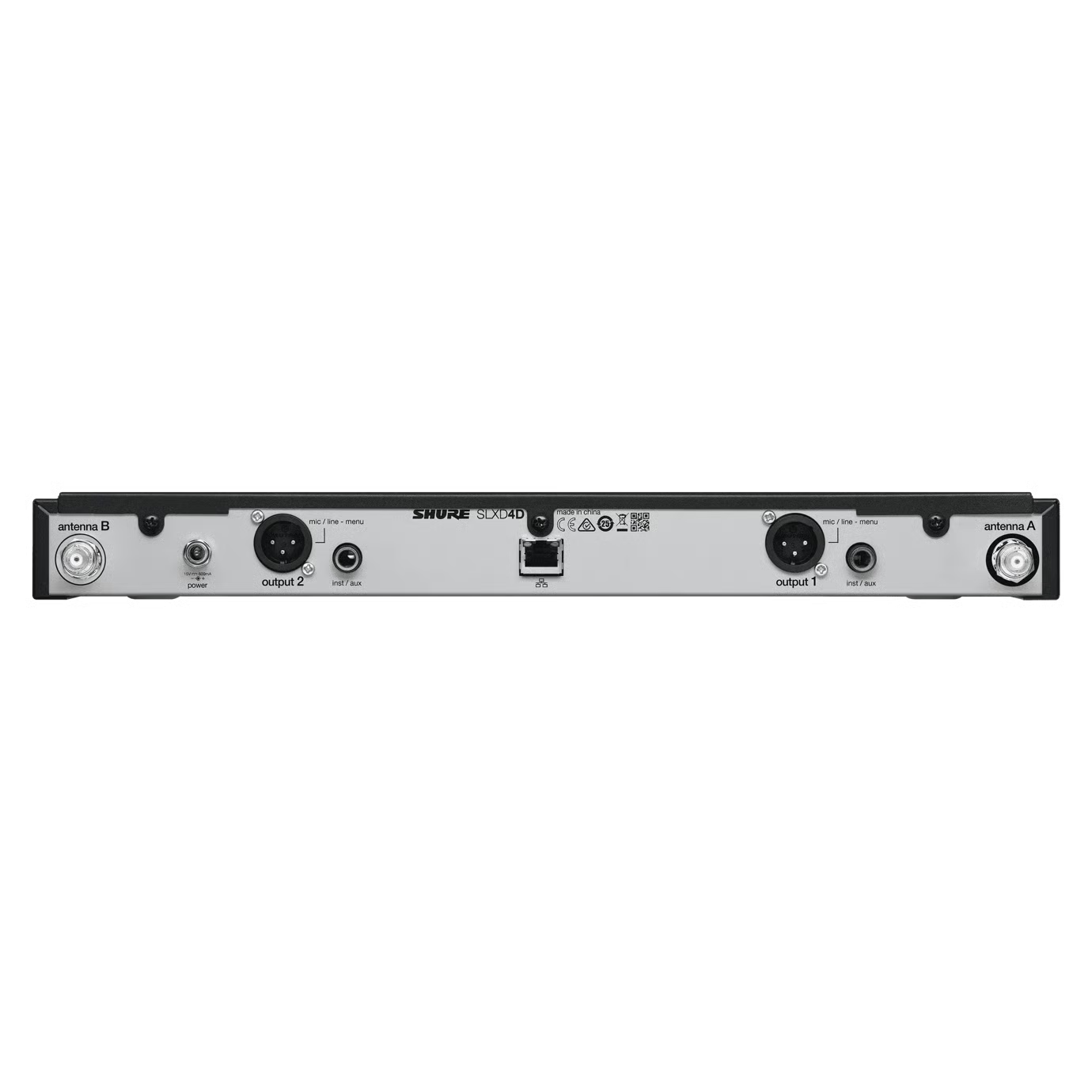

| Outputs | 2 x balanced XLR, 2 x 1/4-inch TRS |
| Antennas | 2 x removable BNC 1/4 wave |
| Networking | 1 x Ethernet (RJ45) port |
| Power | 15 V DC adapter (included), 100–240 VAC input |
| Rack Size | 1U single-rack with included hardware |
| Dimensions | 15.5 x 6 x 1.7 inches (393 x 152 x 42 mm) |
| Weight | 3.1 lb (1.4 kg) without antennas |
| Construction | Rugged all-metal steel housing |
| Aspect | Shure SLXD4D J52 | Shure QLXD4 | Sennheiser EW-DX EM 2 |
|---|---|---|---|
| Frequency Bands | UHF J52 (46 MHz tuning) | UHF (wider per band options) | UHF with wide tuning |
| Working Range | 328 feet typical | 328 feet typical | 300 feet typical |
| Channels per Receiver | Dual-channel | Single-channel | Dual-channel |
| Audio Quality | 24-bit, >120 dB dynamic | 24-bit, high dynamic range | 24-bit digital |
| Max Compatible Systems | Up to 32 per band | Up to 32 per band | High density options |
| Networking | Ethernet with Wireless Workbench | Ethernet with Wireless Workbench | App and Dante support |
| Latency | 3.2 ms | Low latency | Lower latency digital |
| Durability | All-metal 1U chassis | Metal half-rack | Robust metal construction |
FAQ
- What frequency band does the SLXD4D operate in? The J52 model covers 558–602 MHz plus 614–616 MHz with a 46 MHz tuning range for reliable UHF performance.
- How many systems can run simultaneously? Up to 32 compatible SLX-D systems per band are supported, with Ethernet enabling coordinated frequency management.
- Is this receiver compatible with SLX-D transmitters? Yes, it works with all SLX-D handheld and bodypack transmitters across matching frequency bands.
- What is the typical operating range? Reliable transmission extends up to 328 feet line of sight under standard conditions.
- Does the receiver support rack mounting? The 1U single-rack metal chassis includes hardware for secure installation in standard equipment racks.
- How is wireless interference handled? Digital Predictive Switching Diversity and automatic scanning provide stable connections even in crowded RF environments.
- What outputs are available? Each channel features balanced XLR mic/line and 1/4-inch TRS outputs with 60 dB gain control.
