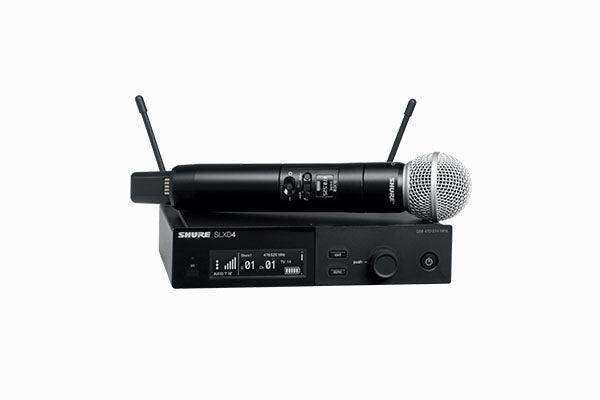

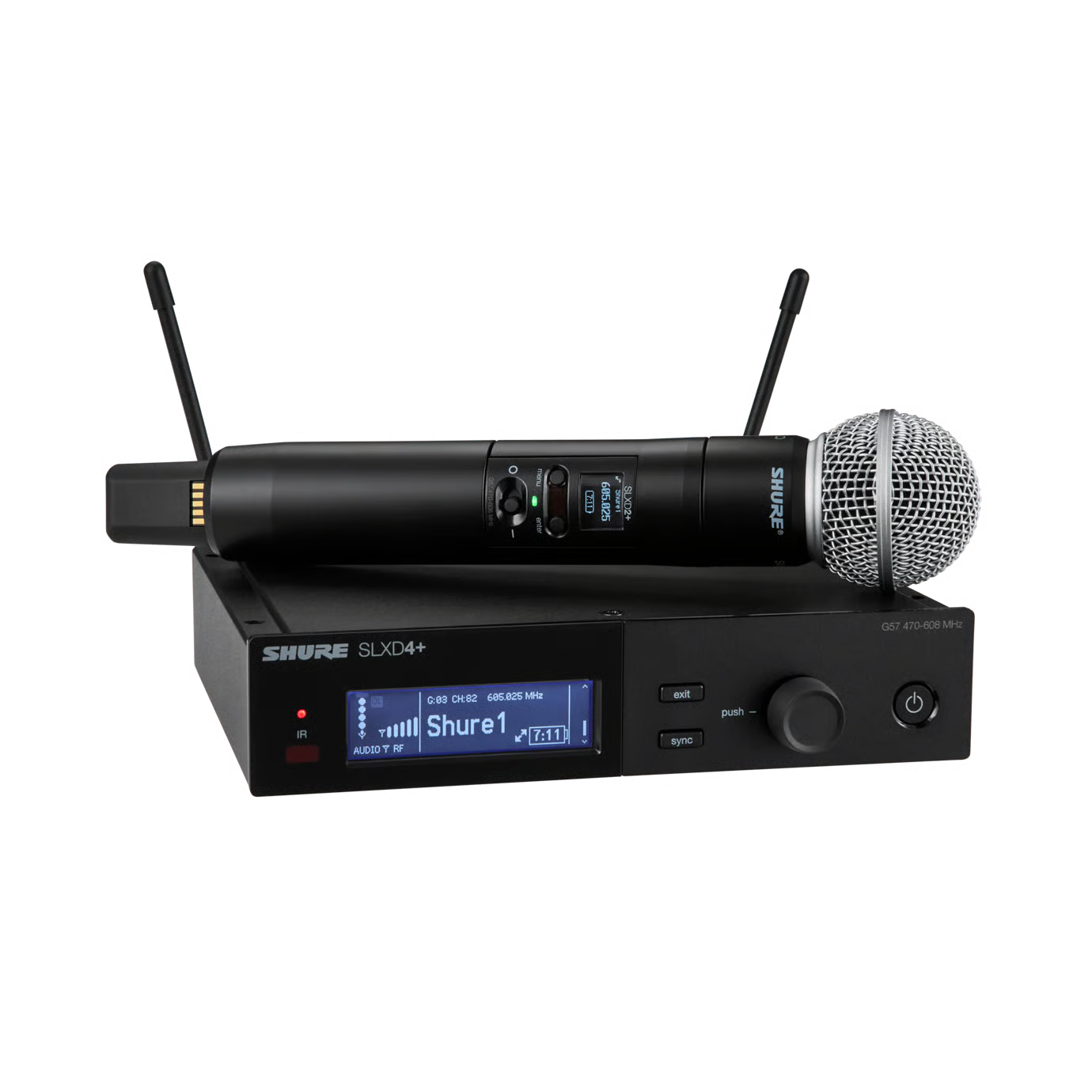

Shure SLXD24+/58-G57 Digital Wireless Vocal System with SM58 Handheld Transmitter

Product Overview

The Shure SLXD24/SM58 is a professional single-channel digital wireless vocal system pairing the SLXD4 receiver with the SLXD2/SM58 handheld transmitter, delivering 24-bit digital audio for live sound, installed AV, and speech reinforcement applications. The SM58 cardioid dynamic capsule is the industry standard for live vocals, combining consistent directional pickup with feedback rejection suited to commercial AV environments. AV integrators specify the SLXD24/SM58 digital wireless vocal system for installations requiring reliable wireless performance with a familiar, field-proven microphone capsule.

Product Description

The Shure SLXD24/SM58 wireless vocal system provides transparent 24-bit digital audio with over 120 dB of dynamic range and 3.2 ms latency—performance well suited to live event production, podium installations, and permanent AV infrastructure. The SLXD4 half-rack receiver uses Digital Predictive Switching Diversity to maintain stable RF reception before signal dropouts can occur, and supports up to 32 simultaneous SLX-D systems within a frequency band. The SM58 capsule’s cardioid polar pattern reduces ambient noise and feedback pickup from stage monitors or loudspeakers in conference rooms and multipurpose venues. The system ships ready for deployment with receiver and transmitter matched to the same frequency band.

Key Features

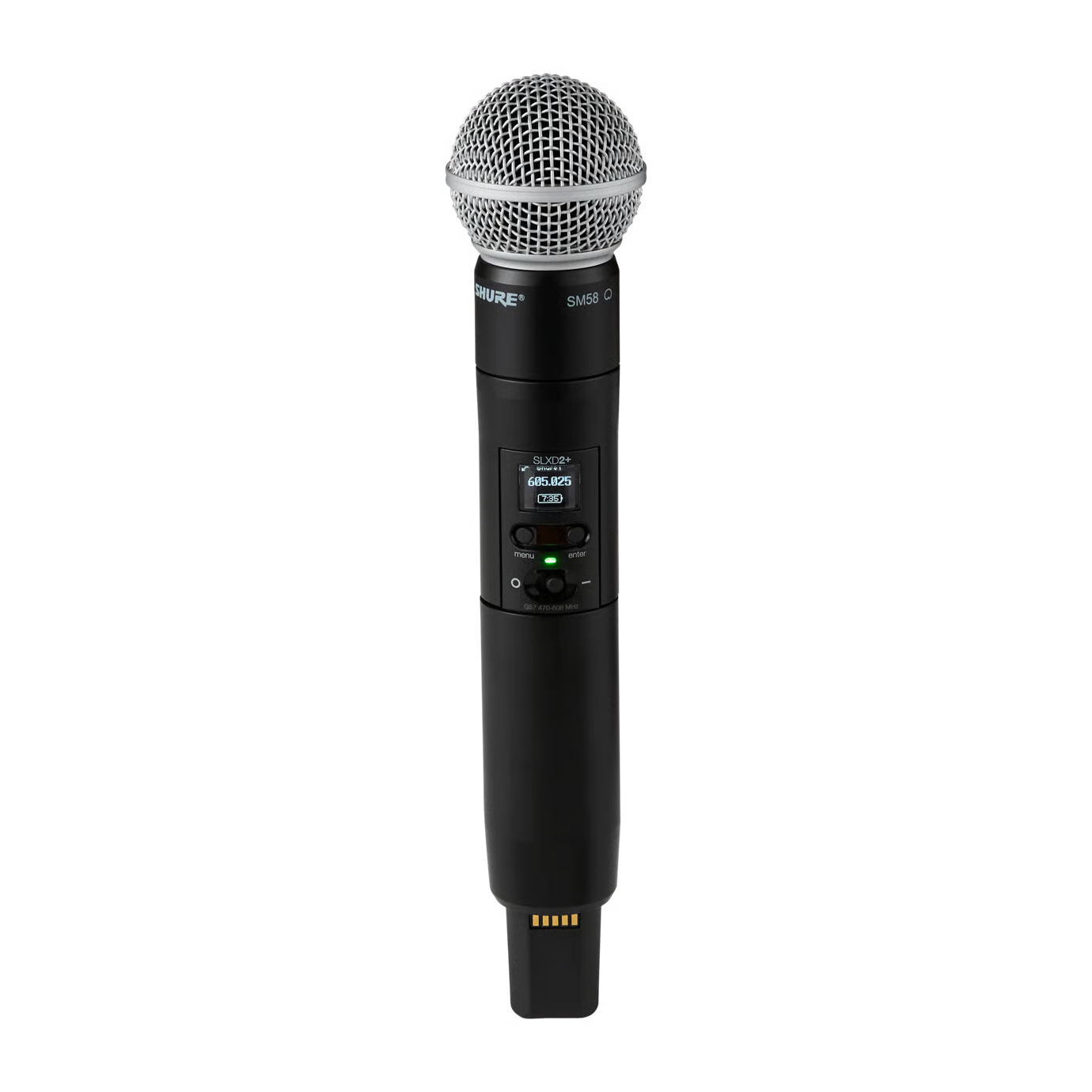

• SM58 Cardioid Dynamic Capsule — The industry-standard live vocal microphone provides consistent directional pickup and natural feedback rejection, making it the proven choice for presenters, vocalists, and event production in commercial spaces.
• 24-Bit Digital Audio with 120+ dB Dynamic Range — Transparent digital audio quality with over 120 dB of dynamic range captures the full range of vocals and speech without compression artifacts.
• 3.2 ms System Latency — Near-imperceptible latency supports live sound reinforcement and in-ear monitoring without audible delay between speech and amplified output.
• Digital Predictive Switching Diversity — Microprocessor-controlled antenna diversity switches to the cleaner antenna signal before dropouts occur, maintaining uninterrupted wireless reception in congested RF environments.
• Up to 32 Simultaneous Systems — Spectrum-efficient digital transmission supports dense wireless deployments in large auditoriums, conference centers, and multi-room AV installations.

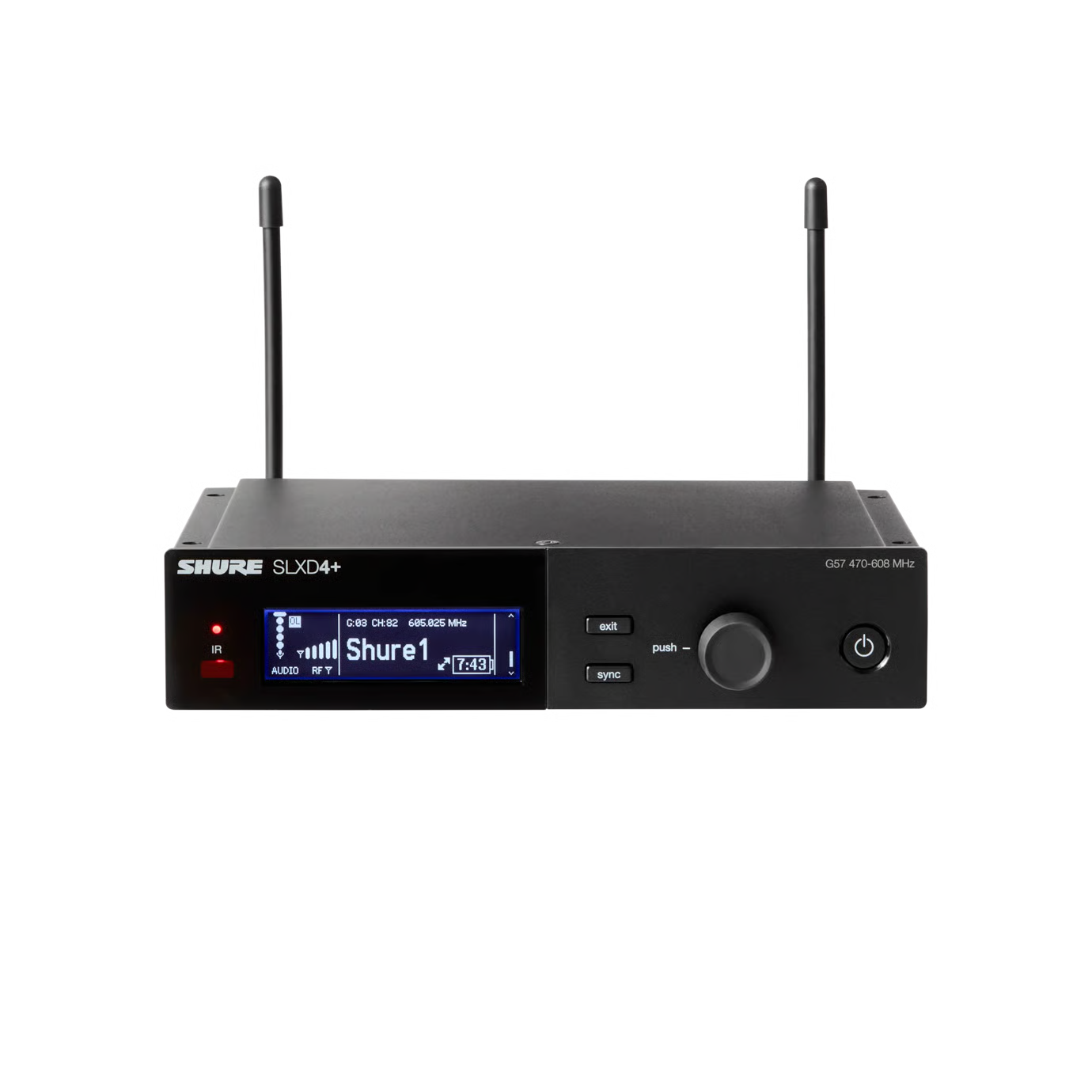

• SLXD4 Half-Rack Receiver with LCD Metering — All-metal half-rack receiver includes an LCD interface with RF, battery, and audio output metering for at-a-glance system status monitoring during live events.
• XLR and ¼" Outputs with 60 dB Gain Control — Dual outputs and adjustable gain enable direct integration with mixing consoles, DSP processors, and fixed-installation AV systems.

Typical Applications

• Conference room and boardroom speech reinforcement for mobile presenters
• House of worship vocal reinforcement for vocalists and worship leaders
• All-hands rooms and auditorium installations requiring digital wireless vocals
• Government and municipal meeting spaces with permanent wireless microphone infrastructure
• Multipurpose rooms and training facilities with varying presenter requirements

Technical Specifications

Frequently Asked Questions

Does the SLXD24/SM58 ship as a complete system?
Yes. The system includes the SLXD4 receiver and SLXD2/SM58 handheld transmitter matched to the same frequency band. No additional components are required for single-channel wireless operation.

Can the SLXD2/SM58 transmitter be used with other SLXD receivers?
Yes. The SLXD2/SM58 transmitter is compatible with any SLXD receiver (SLXD4, SLXD4D, SLXD4Q) within the same frequency band, allowing the transmitter to be integrated into a larger multi-channel SLX-D system.

What frequency band should I select for my installation?
Frequency band selection depends on your regional spectrum regulations and existing wireless infrastructure. Match the frequency band across all SLX-D components in your system. Use Shure’s online Frequency Finder tool to identify cleared frequencies in your area.

How many SLXD24/SM58 systems can operate simultaneously at one venue?
The SLX-D system supports up to 32 simultaneous systems within the same frequency band, making it suitable for large venues with multi-channel wireless requirements.

What is the warranty coverage on this system?
Shure wireless systems are backed by a two-year limited warranty covering defects in materials and workmanship. Contact Shure or an authorized Shure service center for warranty support.
