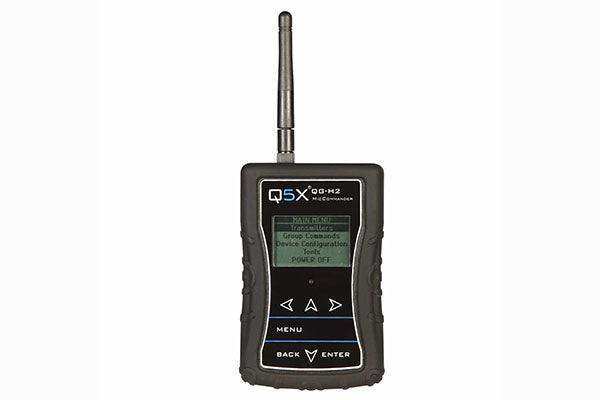

Shure QG-H2-US – Q5X MicCommander Remote with US Power Adapter

Product Overview

The Shure QG-H2-US Q5X MicCommander is a handheld wireless remote control for Q5X series wireless transmitters, enabling operators to manage up to 32 Q5X transmitters from a single device over a 2.4 GHz RCAS control channel with a range of up to 40 meters. It is the US version of the QG-H2, including a North American 6V DC power adapter in addition to battery and USB power options. The MicCommander is designed for broadcast engineers, live sound operators, and AV system integrators managing multi-transmitter Q5X wireless deployments in commercial production environments.

Product Description

The QG-H2-US provides all the transmitter management capabilities of the QG-H2 with the added convenience of an included US power adapter, making it the appropriate specification for North American commercial AV installations where AC-powered operation is preferred. Via the RCAS (Remote Control Audio System) 2.4 GHz protocol, operators can remotely turn Q5X transmitters on and off, change frequencies, adjust RF power and mic offset, monitor battery levels and encryption status, and organize transmitters into groups — from up to 40 meters away and through walls. USB connectivity enables integration with Q5X MicControl software for PC-based system coordination and also powers the device when connected. For installations outside North America, specify the QG-H2 (adapter not included) and source a locally-compatible 6V DC adapter.

Key Features

• US Power Adapter Included — Ships with a North American 6V DC power adapter for AC-powered operation, in addition to battery (2x AA) and USB power options.
• Controls Up to 32 Q5X Transmitters — Manages up to 32 Q5X wireless transmitters from a single handheld device as a standalone controller.
• 2.4 GHz RCAS Communication, Up to 40m Range — Operates through clothing and walls at distances up to 40 meters, suitable for front-of-house, broadcast, and large venue deployments.
• Remote On/Off, Frequency, RF Power, and Mic Offset Control — Full transmitter parameter control without physical access to each unit, supporting efficient live production workflows.
• Battery Level and Encryption Status Monitoring — Real-time visibility into all managed Q5X transmitters, supporting operational awareness during live events.
• USB Port for MicControl Software — Connects to PC or laptop for Q5X MicControl software integration; USB also supplies device power when connected.
• Transmitter Group Management and Storage Mode — Organizes transmitters into logical groups and enables remote storage mode for battery conservation in multi-channel deployments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What is the difference between QG-H2 and QG-H2-US?
The QG-H2-US is identical to the QG-H2 in function but includes a North American 6V DC power adapter. The QG-H2 does not include a power adapter. Both models support battery (2x AA) and USB power operation.

How many Q5X transmitters can the QG-H2-US manage?
Up to 32 Q5X transmitters can be managed from a single QG-H2-US MicCommander as a standalone device.

What is the wireless operating range?
The RCAS 2.4 GHz control channel supports operation up to 40 meters and operates through clothing and walls, providing practical reach in auditorium, broadcast studio, and government AV environments.

Is the QG-H2-US compatible with Shure ULX-D or SLXD+ wireless systems?
No. The MicCommander is designed exclusively for Q5X wireless transmitters. It is not compatible with Shure ULX-D, SLXD+, or other non-Q5X wireless platforms.

Can I use the MicCommander with PC-based software?
Yes. The USB port enables connection to a PC or laptop running Q5X MicControl software for advanced system coordination and configuration. USB also provides power to the device when connected.
