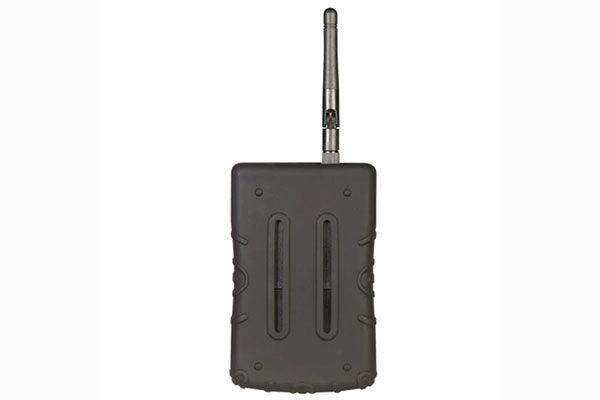

Shure QG-H2 – Q5X MicCommander Wireless Transmitter Remote Control

Product Overview

The Shure QG-H2 Q5X MicCommander is a handheld wireless remote control for Q5X series wireless transmitters, enabling AV system operators and broadcast engineers to manage up to 32 Q5X transmitters from a single device over a 2.4 GHz control channel with a range of up to 40 meters. It communicates through clothing, walls, and at distance, making it practical for live event production, broadcast studio operations, government AV deployments, and any commercial AV installation where transmitter management from a remote position is required. The MicCommander gives operators real-time control of transmitter on/off state, frequency, RF power, mic offset, and battery status without physically accessing each transmitter.

Product Description

Managing multiple wireless transmitters during live production typically requires either physical access to each unit or a dedicated control interface. The QG-H2 MicCommander solves this by providing a single handheld controller capable of monitoring and adjusting up to 32 Q5X transmitters simultaneously via the RCAS (Remote Control Audio System) 2.4 GHz communication protocol. Operators can remotely turn transmitters on and off, change frequencies, adjust RF power levels, set mic offset, monitor battery levels, manage encryption status, and organize transmitters into logical groups — all from a distance of up to 40 meters. The USB port enables connection to a PC or laptop for use with Q5X MicControl software, and also provides power when USB-connected. The device can also operate on 2x AA batteries or via a DC power adapter (6V DC, sold separately). The QG-H2-US variant includes a US power adapter; this QG-H2 model does not include an adapter.

Key Features

• Controls Up to 32 Q5X Transmitters — A single MicCommander manages up to 32 Q5X wireless transmitters as a standalone device, reducing the operational complexity of large wireless deployments.
• 2.4 GHz RCAS Communication, Up to 40m Range — The RCAS wireless protocol operates through clothing, walls, and over distances up to 40 meters, providing practical reach for stage, studio, and large venue deployments.
• Remote Transmitter On/Off, Frequency, and RF Power Control — Operators can power transmitters on and off, change operating frequencies, and adjust RF power levels without accessing the transmitter physically.
• Mic Offset and Group Management — Supports per-transmitter mic offset adjustment and logical group organization for structured multi-transmitter AV system control.
• Battery Level and Encryption Status Monitoring — Displays real-time battery levels and encryption status for all managed Q5X transmitters, supporting operational awareness during live events.
• USB Port for MicControl Software Integration — USB connection to PC or laptop enables use with Q5X MicControl software for advanced coordination; USB also supplies device power when connected.
• Flexible Power Options — Operates on 2x AA batteries, USB power, or a 6V DC adapter (adapter not included in this model; see QG-H2-US for US adapter version).
• Storage Mode — Remotely places transmitters in storage mode to conserve battery life when not in use, valuable for multi-channel touring and broadcast deployments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

How many Q5X transmitters can the QG-H2 control at once?
The QG-H2 can manage up to 32 Q5X transmitters as a standalone device via the 2.4 GHz RCAS wireless protocol.

Can the MicCommander operate through walls and obstacles?
Yes. The RCAS 2.4 GHz communication channel is designed to operate through clothing, walls, and at distances up to 40 meters, making it usable from front-of-house positions or off-stage during live productions.

What power sources does the QG-H2 support?
The QG-H2 operates on 2x AA batteries, USB power when connected to a PC or laptop, or via a 6V DC power adapter (sold separately). The QG-H2-US model includes a US power adapter.

What functions can I control remotely with the MicCommander?
You can remotely control transmitter on/off state, frequency, RF power level, mic offset, transmitter group assignments, and storage mode. You can also monitor battery levels and encryption status for all managed transmitters.

Does the QG-H2 work with Shure ULX-D or SLXD wireless systems?
No. The QG-H2 MicCommander is designed exclusively for Q5X series wireless transmitters and uses the RCAS protocol. It is not compatible with other Shure wireless platforms such as ULX-D or SLXD+.

What software is compatible with the QG-H2 USB connection?
The USB port supports Q5X MicControl software for PC or laptop, enabling advanced coordination and configuration of Q5X transmitters. USB connection also powers the device when connected.
