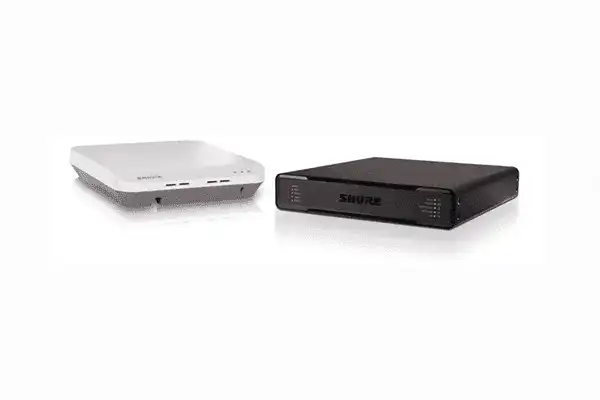

Shure MXWAPT4 4-Channel Access Point Transceiver with ANIUSB-MATRIX USB Audio Network Interface - MXWAPT4-Z10+USB-P
Shure MXWAPT4 4-Channel Access Point Transceiver with ANIUSB-MATRIX USB Audio Network Interface - MXWAPT4-Z10+USB-P is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Shure MXWAPT4 4-Channel Access Point Transceiver with ANIUSB-MATRIX...
The Shure MXWAPT4 4-Channel Access Point Transceiver with ANIUSB-MATRIX USB Audio Network Interface is bundled together to provide users of Shure's MicroFlex Wireless conferencing system with both a 4-channel wireless access point and a USB interface with matrix mixing for the system. The bundle allows four wireless microphones and a USB device to access the conference system.
The MXWAPT4 4-Channel Access Point Transceiver from Shure is a bi-directional transceiver designed for use in Shure's Microflex wireless systems. It receives and sends up to 4 channels of AES 256-bit encrypted transmissions to and from compatible transmitters and audio network interfaces in an AV environment. The unit itself is wall and ceiling mountable and has a paintable cover, allowing it to blend in to its environment.
The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
Features
- For Conferencing Applications
- Works with Microflex Wireless Systems
- For Dante Digital Networked Audio
- Connect Wireless Mics to Network
- Connect USB Devices to Network
- Power over Ethernet
- Automatic Frequency Coordination
- AES 256-Bit Encryption
- USB Memory Stick Included
Specification
| Network Interface | RJ45: Gigabit Ethernet, Dante digital audio |
| Plenum | Rating: UL 2043 |
| Power Requirement | Power over Ethernet (PoE) Class 0, 6.5 W |
| Antenna Type | Internal, spacial diversity, circular polarization |
| Housing | Molded plastic, cast zinc |
| Dimensions | 1.35 x 6.70 x 6.70" (24 x 170 x 170 mm) |
| Weight | Unit: 1.88 lb (856 g) Paintable Cover: 0.2 lb (85 g) Mounting Bracket: 0.15 lb (68 g) |
| Package Weight | 2.9 lb |
| Box Dimensions (LxWxH) | 8.268 x 7.559 x 2.992" |
Shure ANIUSB-MATRIX USB Audio Network Interface Specs
| Inputs (Analog) | 1 x 3-pin block connector (active balanced) |
| Outputs (Analog) | 1 x 3-pin block connector (impedance balanced) |
| USB Connection | 1 x USB 2.0, Type-B |
| Dante Connection | 1 x RJ45 Channel Count: 4 inputs, 2 outputs |
| Polarity | Non-inverting, any input to any output |
| Power Requirements | Power over Ethernet (PoE), Class 0 (PoE Plus compatible) |
| Power Consumption | 6.5 W maximum |
| Application Control | HTML5 browser based |
| Operating Temperature Range | 20 to 104°F (-6.7 to 40°C) |
| Storage Temperature Range | 20 to 165°F (-29 to 74°C) |
| Thermal Dissipation | Maximum: 6.8 W (23.0 BTU/hr) Typical: 6.0 W (20.8 BTU/hr) |
| Frequency Response | 20 Hz to 20 kHz +1, -1.5 dB |
| Dante Audio Flows | Sampling Rate: 24-bit/48 kHz |
| USB Audio | 16-, 24-bit/44.1, 48 kHz |
| Latency | Does not include Dante latency Analog to Analog: 0.98 ms Analog to Dante 0.39 ms Dante to Analog: 0.72 ms Dante to Dante: 0.14 ms |
| Dynamic Range | 20 Hz to 20 kHz, A-weighted, typical Analog to Dante: 113 dB Dante to Analog: 117 dB |
| Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms Line: -86 dBV Aux: -98 dBV |
| Total Harmonic Distortion (THD) | <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain |
| Common Mode Rejection Ratio | >70 dB, 150 Ohms balanced source @ 1 kHz |
| Impedance | 10.6 kOhms |
| Input Clipping Level | Line: +27 dBV Aux: +15 dBV |
| Output Clip Level | Line: +20 dBV Aux: 0 dBV Mic: -26 dBV |
| Digital Signal Processing (DSP) | Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range) System: Matrix mixer |
| Networking | Cat 5e or higher (shielded cable recommended) |
| Dimensions | 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm) |
| Weight | 1.5 lb (672 g) |
| Package Weight | 2.65 lb |
| Box Dimensions (LxWxH) | 10.1 x 6.6 x 3.3" |
