Shure MXA310B-USB-P Microflex Advance Table Array Microphone and ANIUSB-MATRIX Audio Network Interface Bundle
Shure MXA310B-USB-P Microflex Advance Table Array Microphone and ANIUSB-MATRIX Audio Network Interface Bundle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXA310B-USB-P Microflex Advance Table Array Microphone and AN...

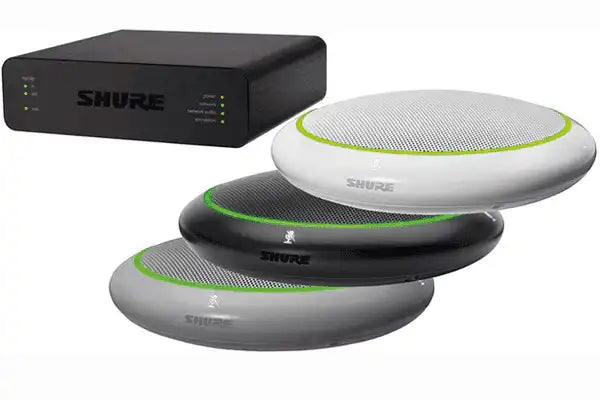

The Shure MXA310B-USB-P bundle combines the MXA310B table array microphone with the ANIUSB-MATRIX audio network interface to deliver premium conferencing audio with flexible connectivity. The MXA310B provides steerable coverage with multiple polar patterns and a unique toroid pattern that rejects overhead noise from HVAC systems. The ANIUSB-MATRIX adds convenient USB connectivity for direct connection to room PCs or BYOD devices running conferencing platforms, along with Dante networking for integration into larger AV systems.

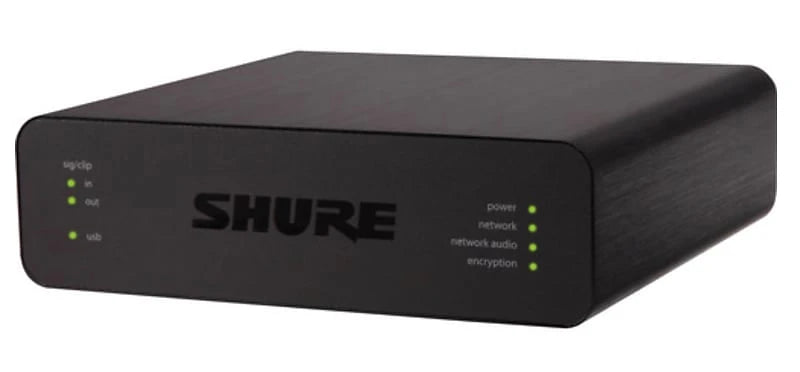

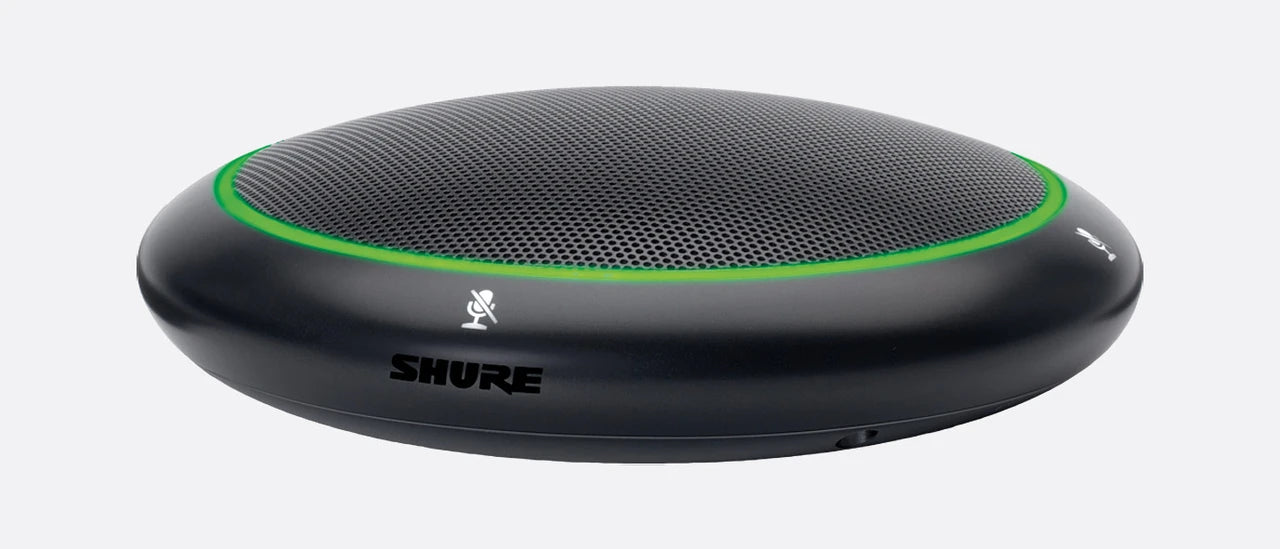

The MXA310B features a compact black aluminum design for discreet surface mounting on conference tables. The ANIUSB-MATRIX offers a compact form factor suitable for under-table or behind-display mounting. Both components integrate via Dante for low-latency audio routing, with predefined presets and matrix mixing to simplify setup.
This bundle suits boardrooms, meeting rooms, and collaboration spaces requiring high-quality audio for video conferencing. It supports USB for laptops, Dante for networked AV, and analog options, with compatibility for Shure Designer software and third-party control systems.
Features Chart
| Feature | Benefit |
|---|---|
| Steerable Coverage with Multiple Polar Patterns | Allows precise adjustment of pickup areas to focus on participants while minimizing unwanted room noise |
| Toroid Polar Pattern | Effectively rejects overhead HVAC and fan noise for cleaner audio capture |
| USB Audio Interface | Provides direct plug-and-play connectivity to PCs and laptops for popular conferencing platforms |
| Dante Network Audio | Enables low-latency digital audio transport and integration into existing AV networks |
| IntelliMix DSP Features | Includes acoustic echo cancellation, noise reduction, and automatic mixing for natural-sounding conversations |
| Compact Low-Profile Design | Enables discreet placement on tables without visual intrusion |
| Predefined Presets and Matrix Mixer | Speeds up system configuration and ensures consistent performance |
| Shure Designer Software Compatibility | Supports easy setup, monitoring, and control of the entire system |
Specifications Table
| Specification | Details |
|---|---|
| Bundle Components | MXA310B Table Array Microphone and ANIUSB-MATRIX Audio Network Interface |
| Microphone Channels | 8 channels with steerable coverage |
| Polar Patterns | Cardioid, supercardioid, toroid, omnidirectional options |
| Frequency Response | 20 Hz to 20,000 Hz |
| Dante Connectivity | Multiple channels via ANIUSB-MATRIX |
| USB Connectivity | USB audio for direct PC/laptop connection |
| Power Requirements | PoE+ for microphone and interface |
| Typical Use | Boardrooms and meeting rooms with USB or Dante conferencing |
| Operating Temperature | Standard professional range for installed AV |
Compare Chart
| Aspect | Shure MXA310B-USB-P | Shure MXA310AL-USB-P | Standard USB Microphones |
|---|---|---|---|
| Microphone Type | Steerable table array (black) | Steerable table array (aluminum) | Basic USB microphone |
| Connectivity | USB + Dante | USB + Dante | USB only |
| Noise Rejection | Toroid pattern for overhead rejection | Toroid pattern for overhead rejection | Basic |
| DSP Features | Via ANIUSB-MATRIX | Via ANIUSB-MATRIX | Minimal or none |
| Typical Applications | USB-based conferencing with network option | USB-based conferencing with network option | Simple laptop use |
| Installation | Table surface | Table surface | Plug-and-play |
| Scalability | High with Dante | High with Dante | Limited |
FAQ
- What connectivity options does the bundle provide? It includes USB for direct connection to PCs/laptops and Dante networking for integration into larger AV systems.
- Is the MXA310 suitable for permanent table installations? Yes, its low-profile design allows discreet surface mounting on conference tables.
- Can polar patterns be adjusted? Yes, steerable coverage and multiple polar patterns can be configured via Shure Designer software.
- What conferencing platforms are supported? It works with major platforms through USB for laptops or Dante for room systems.
- Does the bundle include advanced echo cancellation? The ANIUSB-MATRIX provides essential audio interfacing; advanced IntelliMix DSP is available in other bundles like the P300 version.
- Is the system expandable? Yes, additional Microflex Advance microphones can be added via Dante for larger meeting spaces.
