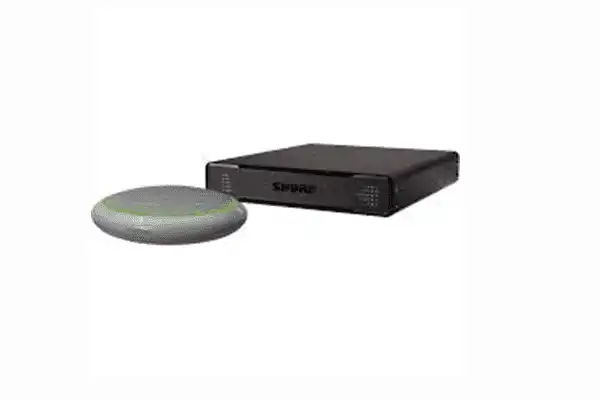

Shure MXA310AL-P300-P Microflex Advance Table Array Microphone and IntelliMix Audio Conferencing Processor Bundle
Shure MXA310AL-P300-P Microflex Advance Table Array Microphone and IntelliMix Audio Conferencing Processor Bundle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXA310AL-P300-P Microflex Advance Table Array Microphone and ...
The Shure MXA310AL-P300-P bundle combines a low-profile table array microphone with an advanced audio processor to deliver clear, intelligible speech for professional conferencing. The MXA310 provides steerable coverage with multiple polar patterns and a unique toroid pattern that rejects overhead noise from HVAC systems. Paired with the P300-IMX processor, it offers automated DSP including acoustic echo cancellation, noise reduction, and automatic gain control for natural-sounding audio in meetings.
Built for discreet installation, the MXA310 features a compact aluminum design for surface mounting on conference tables. The P300 processor uses a compact form factor suitable for under-table or behind-display mounting. Both components integrate seamlessly via Dante networking for flexible signal routing in modern AV systems. Predefined presets and matrix mixing simplify setup for reliable performance.
This bundle suits boardrooms, meeting rooms, and collaboration spaces requiring high-quality audio for video conferencing. It connects easily with Dante-enabled devices, USB for laptops, analog interfaces for room systems, and mobile devices. Compatibility with Shure Designer software and third-party control systems supports scalable installations with other Microflex Advance microphones or wireless systems.
Features Chart
| Feature | Benefit |
|---|---|
| Steerable Coverage with 4 Polar Patterns | Allows precise adjustment of pickup areas to focus on participants while minimizing unwanted room noise |
| Toroid Polar Pattern | Effectively rejects overhead HVAC and fan noise for cleaner audio capture in typical meeting environments |
| 8 Channels of Acoustic Echo Cancellation | Removes echo from remote participants for natural, uninterrupted conversations |
| IntelliMix Automatic Mixing | Dynamically gates and mixes multiple microphone channels to prioritize active speakers |
| Dante Network Audio | Provides low-latency digital audio transport with easy integration into existing AV networks |
| PoE+ Power for Processor | Eliminates separate power supplies for simplified installation and reduced cabling |
| Predefined Matrix Mixer and Presets | Speeds up system configuration and ensures consistent performance across different room setups |
| Compact Low-Profile Design | Enables discreet placement on tables and under furniture without visual intrusion |
Specifications Table
| Specification | Details |
|---|---|
| Bundle Components | MXA310AL Table Array Microphone and P300-IMX IntelliMix Processor |
| Microphone Channels | 8 channels with steerable coverage |
| Polar Patterns | Cardioid, supercardioid, toroid, and omnidirectional options |
| Frequency Response | 20 Hz to 20,000 Hz |
| Dante Connectivity | 10 inputs / 8 outputs on processor |
| Analog I/O | 2 balanced inputs / 2 outputs on processor |
| USB and Mobile Connections | USB 2.0 (1 in/out summed mono) and 3.5 mm TRRS for mobile devices |
| Power Requirements | PoE+ (802.3at Type 2, Class 4) for processor |
| Processor Power Consumption | Maximum 17.5 W |
| Processor Dimensions | 4 x 21 x 22.6 cm (1.6 x 8.3 x 8.9 in) |
| Processor Weight | 1710 g (3.8 lbs) |
| Operating Temperature | -6.7°C to 50°C (20°F to 122°F) |
Compare Chart
| Aspect | Shure MXA310AL-P300-P | Sennheiser TeamConnect Ceiling 2 | ClearOne Converge Pro 2 |
|---|---|---|---|
| Microphone Type | Table array with steerable coverage | Ceiling array with dynamic beamforming | DSP processor with optional mics |
| Noise Rejection | Toroid pattern for overhead HVAC rejection | Beamforming for room noise control | Standard noise reduction algorithms |
| Echo Cancellation | 8 channels AEC in processor | Integrated AEC channels | Multiple AEC channels available |
| Network Audio | Dante 10 in / 8 out | Dante or AVB options | Dante support in select models |
| Installation | Table surface mic with under-table processor | Ceiling mounted array | Rack or under-table mounting |
| Connectivity | Dante, analog, USB, mobile TRRS | Dante, analog, USB | Dante, analog, USB options |
| Durability | Rugged for professional installed use | Reliable for permanent ceiling install | Solid for conferencing applications |
| Setup Simplicity | Predefined presets and Designer software | Software configuration tools | Configuration software with templates |
FAQ
- Does the bundle require separate power supplies? The P300 processor uses PoE+ for power, while the MXA310 microphone receives power over the network connection.
- Is the MXA310 suitable for permanent table installations? Yes, its low-profile design allows discreet surface mounting on conference tables with cable routing options.
- Can the polar patterns be adjusted after installation? Yes, steerable coverage and multiple polar patterns including toroid can be configured via Shure Designer software.
- What conferencing platforms does this bundle support? It works with major video conferencing applications through Dante, USB, or analog connections for laptops and room systems.
- How does the toroid pattern improve audio quality? It specifically rejects noise from ceiling sources like HVAC systems while maintaining clear pickup of voices at table level.
- Is the system expandable for larger rooms? Yes, additional Microflex Advance microphones can be added via Dante networking for coverage in bigger meeting spaces.
