Shure MXA310 + P300-IMX AV Conferencing Bundle - MXA310B-P300-P

Shure SKU: MXA310B-P300-P
No reviews

Description

 

MXA310 Spec Sheet

P300 Spec Sheet

Please call or email our sales for team for pricing, consultation, and more info

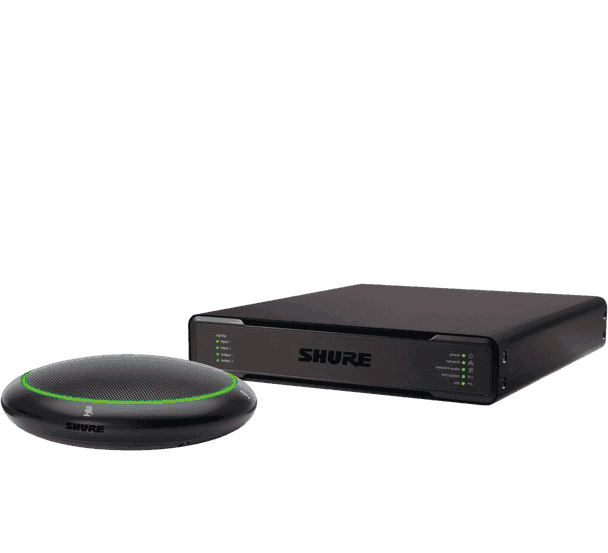

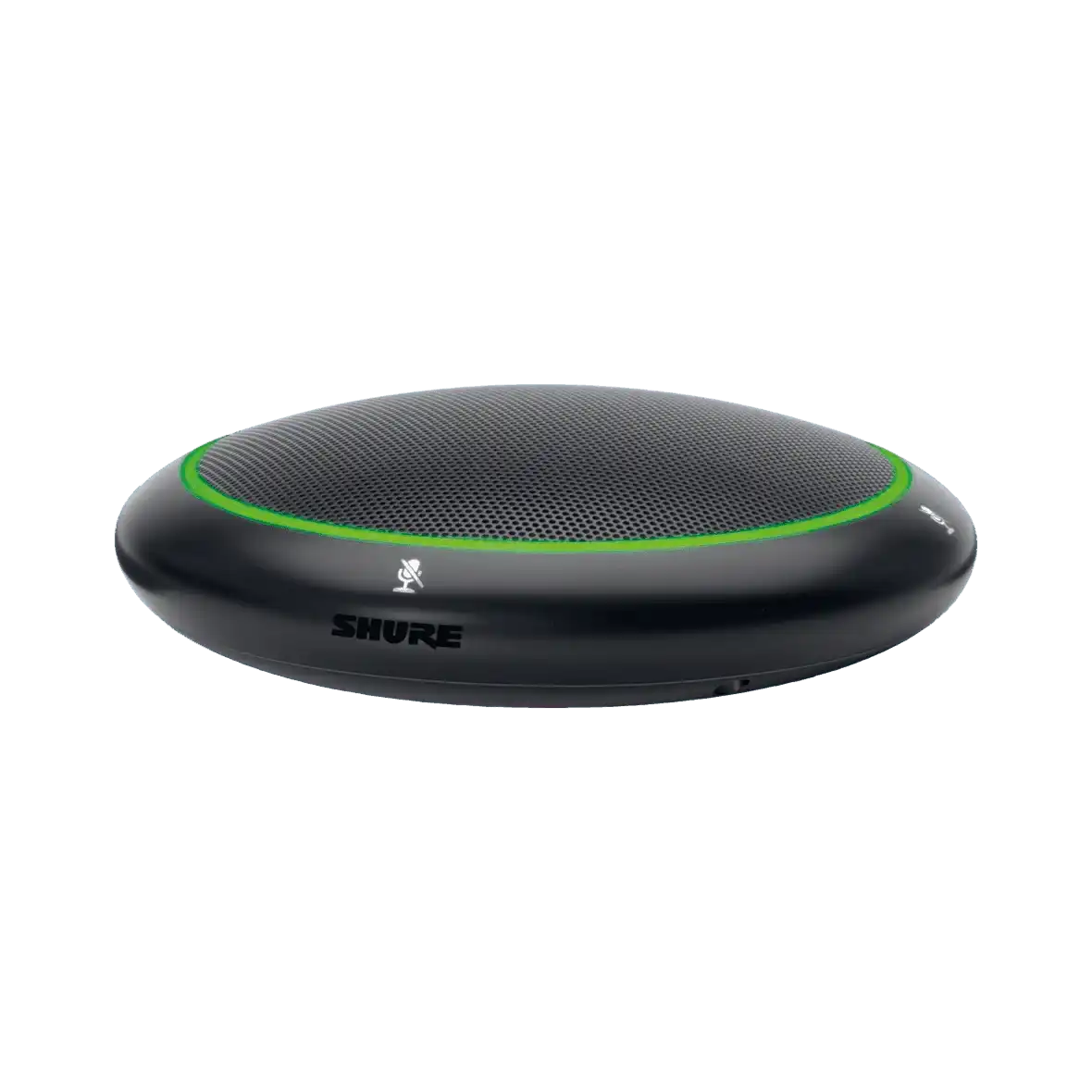

The Shure Microflex® Advance™ MXA310 Table Array Microphone together with the IntelliMix® P300-IMX Audio Conferencing Processor deliver natural voice quality and excellent speech intelligibility for audio / video conferencing applications.

The P300-IMX offers multi-channel acoustic echo cancellation and noise reduction plus IntelliMix® automatic mixing optimized for audio/video conferencing applications. A predefined matrix and presets simplify the set up process. With the compact P300-IMX mounted under the table or behind the display, and the compact MXA310 mounted on the table, this bundle provides superior audio and discreetly integrates into boardrooms and meeting spaces.

Versatile features and connectivity options provide freedom of choice when joining a room system, a computer running soft codecs like Skype for Business or BlueJeans, or to other all-in-one collaboration devices equipped with a USB or analog audio interface.

  • Steerable Coverage™ of 4 separate polar patterns
  • Toroid polar pattern that rejects overhead HVAC and fan noise
  • 8 channels of acoustic echo cancellation and noise reduction
  • Shure Network Audio Encryption
  • Dante (10 in / 2 out), analog (2 in / 2 out)
  • USB (1 in / out) and 3.5 mm connectivity options for connecting to room systems, laptops and mobile devices

The P300-IMX offers multi-channel acoustic echo cancellation and noise reduction plus IntelliMix® automatic mixing optimized for audio/video conferencing applications. A predefined matrix and presets simplify the set up process. With the compact P300-IMX mounted under the table or behind the display, and the compact MXA310 mounted on the table, this bundle provides superior audio and discreetly integrates into boardrooms and meeting spaces.

Audio Capture / DSP

  • Up to four simultaneous polar patterns including the innovative “toroid” pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional—all steerable to any angle in 15 degree increments)
  • Shure DSP Utilities:
    • Steerable Coverage Technology
    • Automatic Mixing
    • 4 Band C/S PEQ assignable to any one channel at a time

Software Control

  • Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
  • Stores 10 presets


Connectivity

  • Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
  • Control strings for third-party preset controllers including Crestron and AMX


Hardware / Installation

  • Configurable multi-color LED
    • Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
    • Brightness controls (default, dim, disabled)
  • Mute Switch modes
    • Toggle, Push-to-Talk, Push-to-Mute, Disable
    • Backlit LED indicator of enabled/disabled mute switch
    • Generates external control signal to mute a downstream device or trigger camera presets
  • Available in white, black and aluminum
  • Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations
  • Device Reboot/Factory Reset Options
    • Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details
