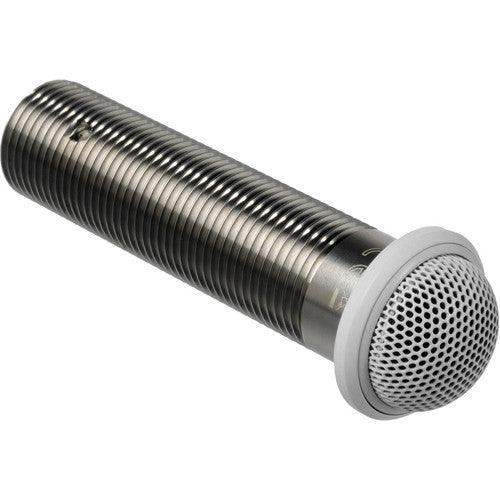

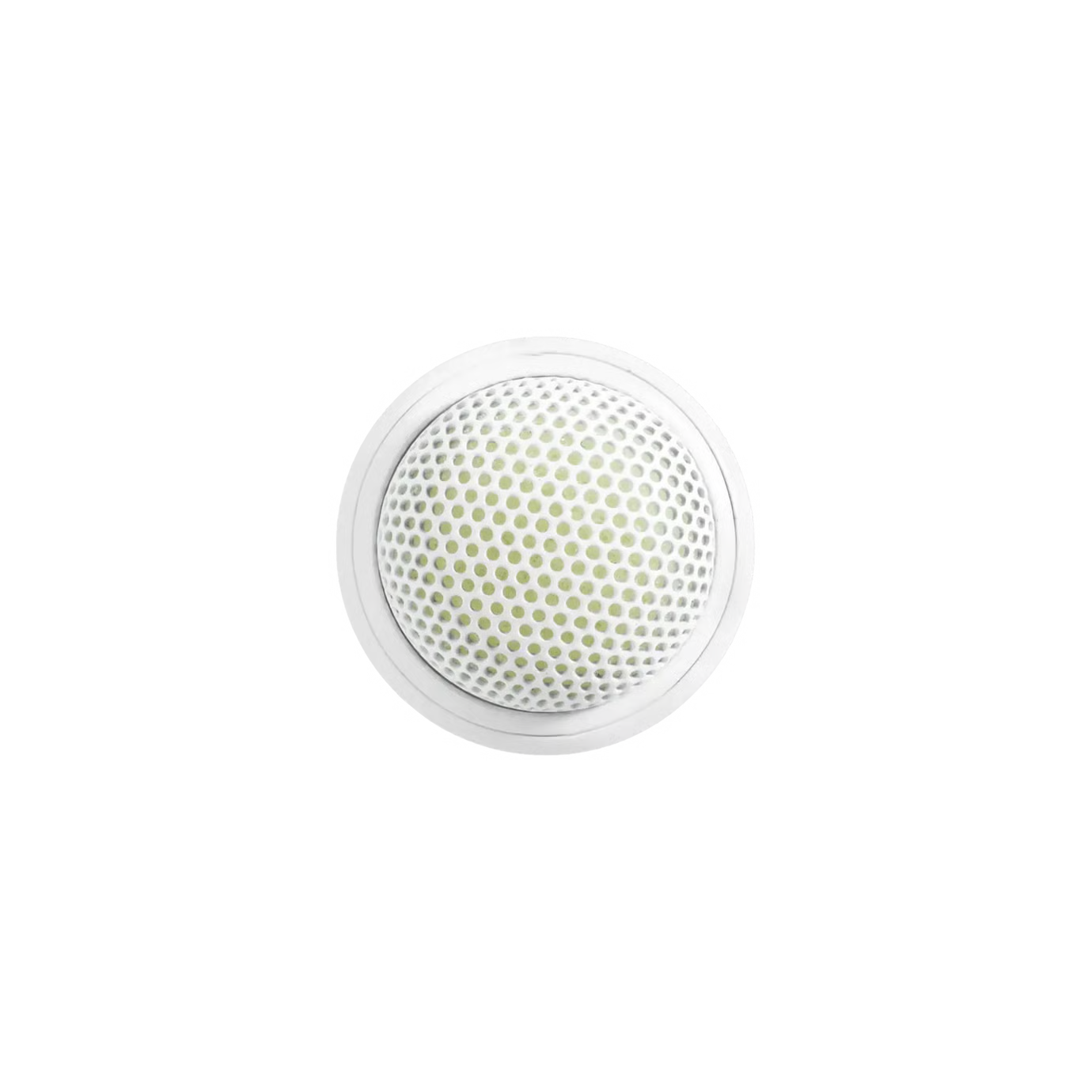

Shure MX395W/O Microflex Low-Profile Boundary Microphone (Omnidirectional)
Shure MX395W/O Microflex Low-Profile Boundary Microphone (Omnidirectional) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MX395W/O Microflex Low-Profile Boundary Microphone (Omnidirec...
The Shure MX395W/O is a low-profile boundary condenser microphone from the Microflex series, designed for clear, natural speech capture in conference rooms, boardrooms, and meeting spaces where minimal visual presence is preferred. It features an omnidirectional polar pattern that provides uniform pickup from all directions, making it ideal when natural ambient sound is desired or when the talker may move.
The white finish and ultra-compact 1.25-inch diameter design deliver a clean, discreet appearance that blends well with light-colored surfaces. It includes CommShield Technology for superior RF rejection and supports wide dynamic range with smooth frequency response for natural, high-quality audio.
| Feature | Benefit |
|---|---|
| Omnidirectional Polar Pattern | Provides uniform pickup from all directions for natural voice capture |
| Ultra Low-Profile Design | Only 1.25 inches in diameter for minimal visual impact |
| White Finish | Provides a clean, discreet appearance on light-colored surfaces |
| CommShield Technology | Reduces RF interference from mobile devices and wireless systems |
| Wide Dynamic Range | Delivers smooth, natural frequency response for speech |
| Surface Mount Boundary | Ensures stable, discreet table or surface installation |
| Specification | Details |
|---|---|
| Microphone Type | Low-Profile Boundary Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 50 Hz – 17 kHz |
| Sensitivity | –27.5 dBV/Pa (42.2 mV) at 1 kHz |
| Maximum SPL | 117 dB SPL (1 kHz at 1% THD) |
| Self Noise | 23 dB SPL-A (typical) |
| Output Impedance | 150 ohms (170 ohms actual) |
| Connector | 3-Pin XLR Male |
| Power Requirement | 11–52 V DC phantom power (2.0 mA) |
| Diameter | 1.25 inches (3.8 cm) |
| Color | White |
| Applications | Conference rooms, boardrooms, meeting spaces, table installations |
| Aspect | Shure MX395W/O | Shure MX395W/C | Shure MX395W/BI |
|---|---|---|---|
| Polar Pattern | Omnidirectional | Cardioid | Bidirectional |
| Primary Use | Natural ambient sound | General focused speech | End-of-table or zone-focused |
| Diameter | 1.25 inches | 1.25 inches | 1.25 inches |
| Finish | White | White | White |
| RF Rejection | CommShield | CommShield | CommShield |
| LED Option | Available | Available | Available |
FAQ
- What applications is the MX395W/O best suited for? It is ideal for conference rooms and boardrooms requiring natural omnidirectional pickup with a clean white low-profile design.
- Does it require phantom power? Yes, it operates on standard 11–52 V DC phantom power.
- What is the polar pattern? It features an omnidirectional pattern for uniform pickup from all directions.
- Is the LED indicator available? Yes, bi-color LED models are available for visual status feedback.
- What is CommShield Technology? It provides enhanced RF filtering to minimize interference from wireless devices.
- Is it compatible with standard mixers? Yes, the 3-pin XLR connector makes it compatible with most professional audio mixers and interfaces.
