Shure 712P AL-V – Small Room Conferencing Audio Bundle

Product Overview

The Shure 712P AL-V is a Shure MXA710 conferencing bundle purpose-built for small conference rooms and huddle rooms that need clean, intelligible audio without a rack full of gear. It pairs a 2-foot aluminum MXA710 linear array microphone with a P300 IntelliMix DSP and two networked ceiling speakers, giving integrators a single-cable, Dante-based audio system for AV system integration in tight footprints. This bundle is aimed at conference room installation projects where wall or table placement of the microphone matters more than ceiling coverage. The result is a complete small conference room audio system that can be deployed and tuned in a single site visit.

Product Description

At the center of this bundle is the MXA710-2FT, a 2-foot aluminum-finish linear array microphone that uses 50 built-in MEMS elements and Shure's Autofocus technology to form four steerable pickup lobes. Because it is a linear array rather than a ceiling tile mic, it mounts flush on a wall, below a display, or on a credenza rail, which makes it well suited for rooms where ceiling access is limited or a discreet, wall mount microphone treatment is preferred. The microphone is PoE-powered and communicates over Dante and AES67, so it drops into an existing AV network without a dedicated matrix mixer.\n\nAudio processing is handled by the P300 IntelliMix Audio Conferencing Processor, an unobtrusive, rackless DSP that provides acoustic echo cancellation, noise reduction, and automatic gain control across up to 8 channels, along with USB and analog connections for the room's codec or PC. This makes P300 DSP integration straightforward for Microsoft Teams Rooms, Zoom Rooms, or BYOD conferencing setups.\n\nTwo MXN5W-C networked ceiling speakers round out the system, each built around a 5.25-inch coaxial driver tuned for speech intelligibility and powered directly over PoE/PoE+, eliminating the need for an outboard amplifier. Included tile bridges simplify mounting in standard drop-ceiling grids, which speeds up commercial deployment for integrators working on a schedule. Every component in this bundle rides on the same Dante audio network, so gain structure, mixing, and mute control are managed centrally rather than through separate analog wiring.

Key Features

• MXA710-2FT Linear Array Microphone — 50 built-in MEMS microphones and Autofocus deliver four steerable pickup lobes from a slim, wall-mountable enclosure.
• Aluminum Finish — A low-profile, architectural finish that blends into modern conference room design.
• P300 IntelliMix Processor — Rackless DSP with AEC, noise reduction, and automatic gain control for consistent, echo-free audio.
• Dante and AES67 Networking — Single-cable audio, power, and control over standard PoE infrastructure.

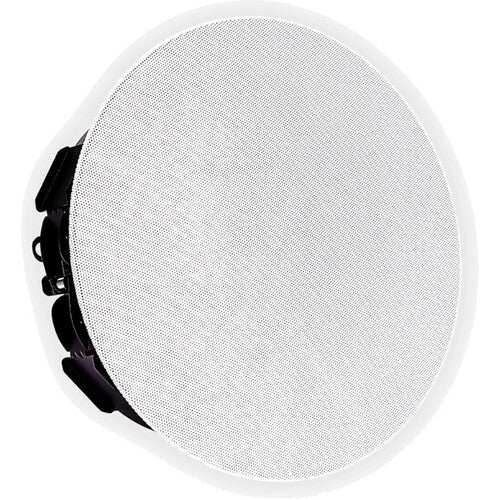

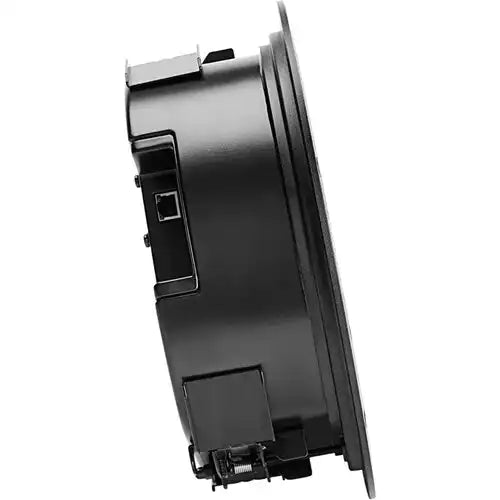

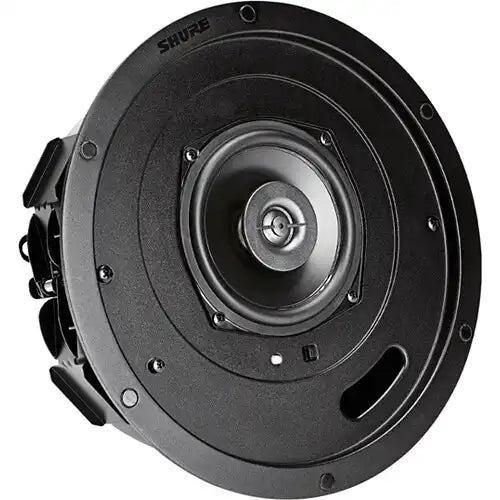

• Two MXN5W-C Ceiling Speakers — PoE/PoE+ powered coaxial loudspeakers tuned for speech reproduction.
• Included Tile Bridges — Drop-ceiling mounting hardware for faster, cleaner speaker installation.
• UC Platform Certified — Works with Microsoft Teams Rooms, Zoom Rooms, and other leading conferencing platforms.

Typical Applications

• Huddle room
• Conference room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Is this bundle compatible with Microsoft Teams Rooms and Zoom Rooms? Yes. Every component in this bundle is certified for use with leading UC platforms including Microsoft Teams Rooms, Zoom Rooms, and Cisco-based systems.
• Does the MXA710-2FT need to be ceiling-mounted? No. It is a linear array designed for wall, under-display, or tabletop placement, which differentiates it from Shure's ceiling array microphones.
• What network infrastructure is required? A PoE/PoE+ capable network switch supporting Dante or AES67 traffic. All four devices in this bundle draw power and carry audio over standard Ethernet.
• Can this system integrate with an existing Dante network? Yes. The MXA710, P300, and MXN5W-C speakers all natively support Dante and can be added to an existing Dante domain and managed through Dante Controller.
• What is the warranty on this bundle? Shure microphones, processors, and loudspeakers in this bundle carry Shure's standard manufacturer warranty; contact Creation Networks for current terms.
• Does Creation Networks provide installation support? Yes. Our AV integration team can assist with system design, Dante network configuration, and on-site commissioning.
