Shure AXT630US AXT630 ANTENNA DIST. 470-698 MHz

Product Overview

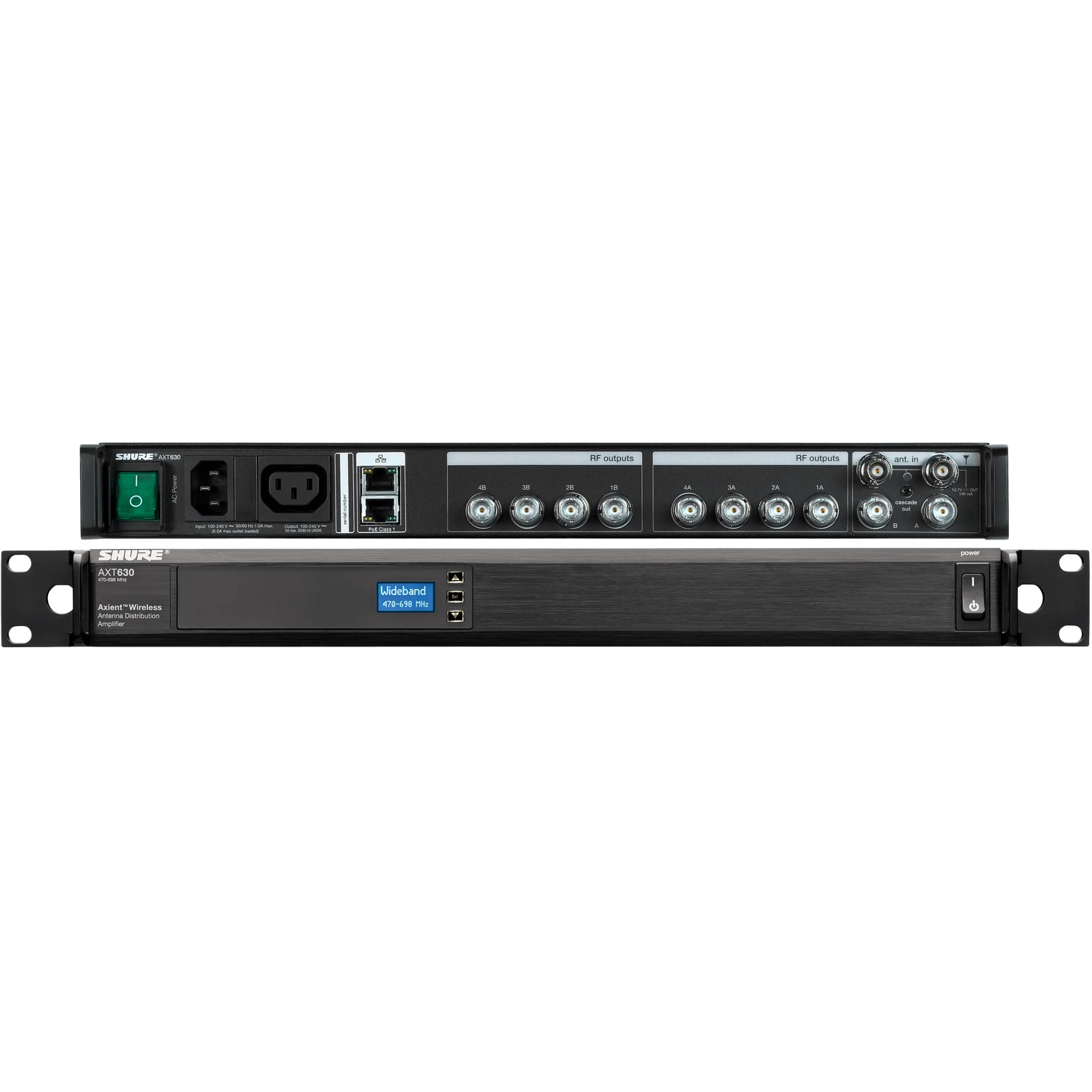

The Shure AXT630 is an Axient antenna distribution system covering 470-698 MHz, designed to feed multiple wireless microphone receivers from a shared pair of antennas. It is built for AV system designers and RF technicians running multi-channel wireless in broadcast studios, auditoriums, houses of worship, and large commercial events. Ultra-linear amplification and precision filtering help maintain a clean RF environment as channel counts grow.

Product Description

Multi-channel wireless microphone systems need clean, well-distributed RF, and feeding each receiver from its own antenna pair quickly becomes impractical, which is why an antenna distribution system is core infrastructure for professional wireless deployments. The AXT630 distributes filtered RF from a shared antenna pair across four BNC antenna output pairs, with ultra-linear amplification and precision wideband filtering. Selectable 60 MHz input filters match the frequency bands of Axient transmitters, providing extra protection from strong out-of-band signals and lowering the overall RF noise floor, while up to 15 dB of selectable RF attenuation supports signal-to-noise optimization. An unfiltered RF cascade port connects wideband devices such as the Axient Spectrum Manager. The unit is networkable over Ethernet, enabling Wireless Workbench (WWB6) control of filtering ranges, antenna power, and attenuation. As a commercial-grade RF component, it anchors reliable wireless coverage in demanding installations.

Key Features

• 470-698 MHz Coverage — The system operates across the 470-698 MHz range for UHF wireless microphone deployments.

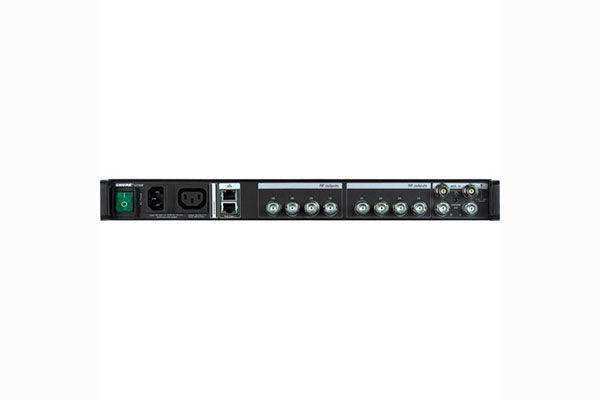

• Four BNC Antenna Output Pairs — Filtered RF is distributed to multiple receivers across four BNC antenna output pairs from a shared antenna pair.
• Selectable 60 MHz Input Filters — Input filters matched to Axient transmitter bands add protection from out-of-band signals and lower the RF noise floor.
• Selectable RF Attenuation — Up to 15 dB of selectable attenuation supports signal-to-noise optimization for each installation.
• RF Cascade Port — An unfiltered cascade port connects wideband devices such as the Axient Spectrum Manager.
• Networked Control — Ethernet networking enables WWB6 control of filtering ranges, antenna power, and attenuation.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Government space
• All-hands room

Technical Specifications

Specifications per Shure.

Frequently Asked Questions

How many receivers can the AXT630 feed?
It distributes filtered RF across four BNC antenna output pairs, allowing a shared antenna pair to feed multiple compatible receivers within the 470-698 MHz range.

What is the RF cascade port for?
The unfiltered RF cascade port connects wideband devices such as the Axient Spectrum Manager, which need access to the full spectrum rather than a filtered band.

How does the input filtering improve performance?
Selectable 60 MHz input filters matched to Axient transmitter bands add protection from strong out-of-band signals and lower the overall RF noise floor.

Can it be monitored and controlled remotely?
Yes. It is networkable over Ethernet and supports Wireless Workbench (WWB6) control of filtering ranges, antenna power, and attenuation.

Is it covered by a warranty?
The AXT630 is covered by Shure's standard limited warranty. Refer to Shure's warranty documentation for the term and conditions applicable to your region.
