Sharp PN-ZB03W – Wireless Board for PN-R Series LCD Monitors
Product Overview
The Sharp PN-ZB03W is a wireless board expansion module for Sharp PN-R556, PN-R496, and PN-R426 LCD monitors, enabling wireless screen sharing from up to 10 simultaneous devices including Windows PCs, Mac computers, smartphones, and tablets. Up to four input sources can be displayed simultaneously in a 2x2 split-screen layout at up to 1080p resolution, making it a practical add-on for collaborative meeting rooms and classrooms where multiple presenters need to share content without cables.
Product Description

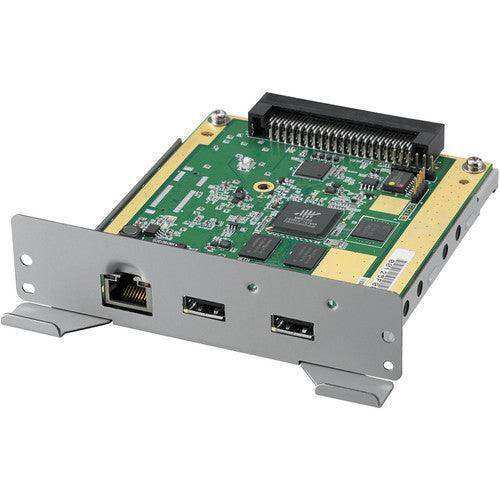

The PN-ZB03W is a plug-in module that installs in the expansion slot of compatible PN-R series monitors. It provides Wi-Fi connectivity on 2.4GHz and 5GHz bands (IEEE 802.11a/b/g/n) plus 100Base-TX Ethernet and two USB 2.0 ports. Up to 10 devices can connect simultaneously for wireless content sharing, and the multi-split display mode allows up to four sources to appear on screen at once in a 2x2 arrangement. No external power supply or additional cables are required — the module draws power from the display's expansion slot.
Key Features
- Wireless Screen Sharing for Up to 10 Devices — Simultaneous wireless connection for Windows, Mac, iOS, and Android devices.
- 2x2 Multi-Split Display — Show up to four input sources simultaneously at up to 1080p.
- Dual-Band Wi-Fi (2.4GHz and 5GHz) — IEEE 802.11a/b/g/n for flexible wireless connectivity.
- Plug-In Module Installation — No external power supply or cables required; powers from the display's expansion slot.
- 100Base-TX Ethernet and 2x USB 2.0 — Wired network and USB connectivity for additional device support.
- Compatible with PN-R556, PN-R496, PN-R426 — Designed specifically for Sharp PN-R series professional LCD monitors.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-ZB03W |
| Form Factor | Plug-in expansion module |
| Compatible Displays | Sharp PN-R556, PN-R496, PN-R426 |
| Wireless Standard | IEEE 802.11a/b/g/n (2.4GHz and 5GHz) |
| Max Simultaneous Devices | 10 |
| Max Split Screen | 2x2 (4 sources) |
| Max Resolution | 1080p |
| Wired Network | 100Base-TX (RJ45) |
| USB Ports | 2x USB 2.0 Type-A |
Frequently Asked Questions
- Q: Which displays is the PN-ZB03W compatible with?
- The PN-ZB03W is designed for the Sharp PN-R556, PN-R496, and PN-R426 LCD monitors. Contact Creation Networks to confirm compatibility with your specific display before ordering.
- Q: Does the module require an external power supply?
- No. The PN-ZB03W receives power directly from the display's expansion slot, requiring no external power supply or additional cables.
