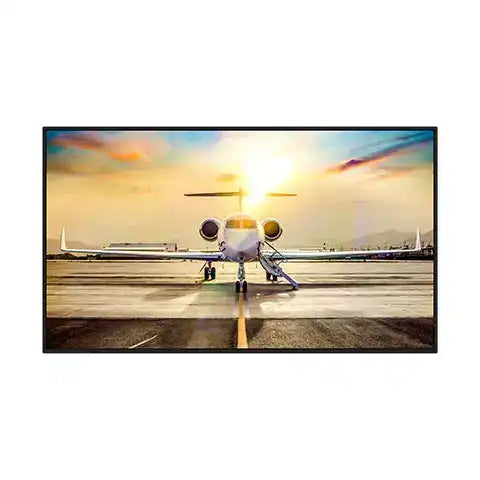

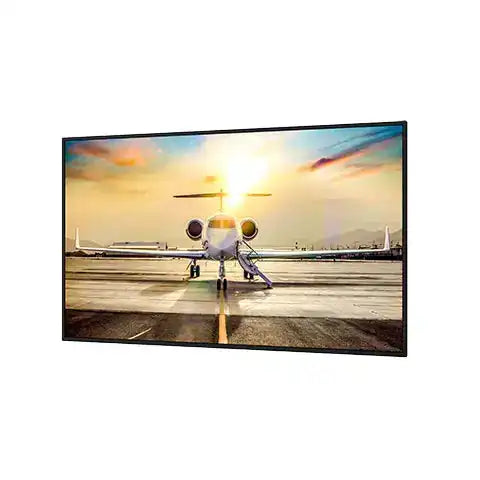

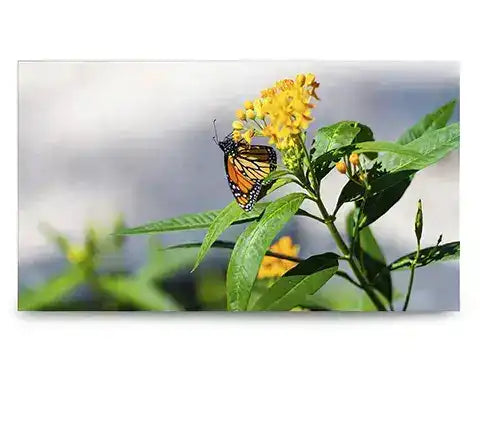

Sharp UN552V – 55" Ultra-Narrow Bezel FHD Video Wall Display
Product Overview
The Sharp UN552V is a 55-inch commercial-grade LCD display engineered specifically for tiled video wall configurations. With a 3.5mm total bezel gap between adjacent panels (1.8mm per side on most edges), it produces a near-seamless surface when configured in multi-display arrays for command centers, lobbies, digital signage walls, and broadcast environments. The UN552V incorporates Sharp's SpectraView Engine for advanced color management and per-panel factory calibration of gamma, intensity, and RGB uniformity, ensuring consistent image quality across an entire video wall installation.
Product Description
The UN552V delivers 1920x1080 Full HD resolution at 500 cd/m² brightness with direct LED backlighting. The SpectraView Engine enables white copy, self-calibration to an external color sensor, and manual CIE chromaticity adjustment — giving integrators precise control over uniformity and color matching across panels. DisplayPort and HDMI daisy chain outputs support up to 4K UHD signal distribution without external distribution amplifiers for smaller installations. The TileMatrix and TileCut functions allow fine-tuning of imagery positioning within the video wall grid. Industrial-strength thermal management with internal temperature sensors, self-diagnostics, and fan-based cooling supports 24/7 continuous operation. The NEC/Sharp NaViSet Administrator 2 software enables centralized network monitoring and management of multi-panel deployments.
Key Features
- 3.5mm Total Bezel Gap — Ultra-narrow bezel design produces a near-seamless tiled video wall surface for multi-panel configurations.
- SpectraView Engine — Proprietary color processing with white copy, self-calibration to external sensor, and CIE chromaticity adjustment for consistent cross-panel color accuracy.
- Factory-Calibrated per Panel — Gamma, intensity, and RGB uniformity are calibrated at the factory for consistent out-of-box performance across matched panels.
- 500 cd/m² Brightness — Direct LED backlighting for consistent brightness in ambient-lit video wall environments.
- 4K UHD Daisy Chain — DisplayPort and HDMI loop-through outputs support 4K daisy chaining for simplified signal distribution.
- TileMatrix + TileCut — On-screen display controls for video wall configuration and precise imagery adjustment within the grid.
- 24/7 Rated — Industrial thermal management with fan cooling, internal temperature sensors, and self-diagnostics for continuous operation.
- OPS/Expansion Slot — Accommodates Raspberry Pi compute modules and NEC expansion accessories for integrated signage playback.
- Internal Media Player — MicroSD or USB-based content playback for standalone digital signage operation.
- NaViSet Administrator 2 Compatible — Network-based centralized monitoring and management software for multi-panel video wall deployments.
- VESA 400x400 — Standard VESA mount pattern for compatibility with commercial video wall mounting systems.
Typical Applications
- Lobby display
- Government space
- Boardroom
- Conference room
- Digital signage
- Retail environment
- Commercial meeting space
Technical Specifications
| Spec | Value |
|---|---|
| Model | UN552V |
| Screen Size | 55 inches diagonal |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 cd/m² |
| Panel Technology | LCD (Direct LED backlight) |
| Bezel Gap (total) | 3.5mm (per unit: 1.8mm typical) |
| Pixel Pitch | 0.630mm (19.7 mil) |
| Color Engine | SpectraView Engine |

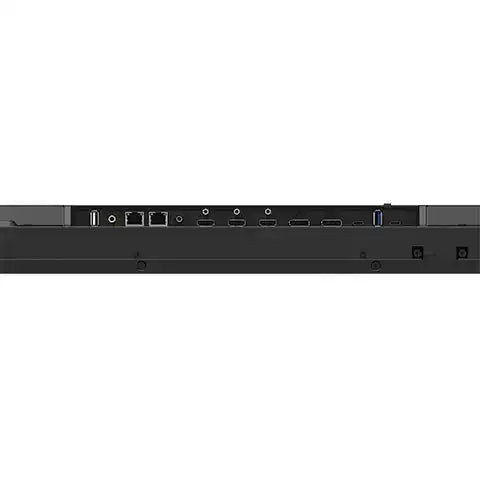

| Video Inputs | 2x HDMI, 3x DisplayPort, 1x DVI, 1x VGA |
| Loop Outputs | 1x HDMI Out, 1x DisplayPort Out |
| Daisy Chain | Up to 4K UHD (DP 1.2 / HDMI 2.0) |
| USB | Yes |
| LAN / Ethernet | Yes |
| RS-232 Control | Yes |
| Expansion Slot | OPS / Raspberry Pi compute module compatible |
| Internal Media Player | MicroSD / USB |
| Dimensions (WxHxD) | 47.8 x 27 x 4 in. |
| Weight | 61.9 lbs |
| VESA Mount | 400 x 400 mm |

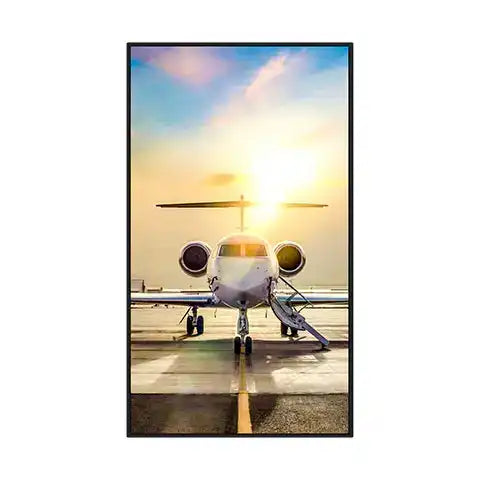

| Orientation | Landscape / Portrait |
| Operation | 24/7 rated |
| Warranty | 3 years |
Competitor Comparison
The UN552V competes primarily with Samsung UD55E and LG 55SVH7F in the 55-inch ultra-narrow bezel video wall display segment.
| Criteria | Sharp UN552V | Samsung UD55E | LG 55SVH7F |
|---|---|---|---|
| Total Bezel Gap | 3.5mm | 3.5mm | 3.5mm |
| Brightness | 500 cd/m² | 500 cd/m² | 500 cd/m² |
| SpectraView Color Engine | Yes (proprietary) | No | No |
| Factory Per-Panel Calibration | Yes | Partial | Partial |
| 4K Daisy Chain | Yes | Yes | Yes |
| OPS Expansion Slot | Yes | Yes | Yes |
| 24/7 Rated | Yes | Yes | Yes |
| Warranty | 3 years | 3 years | 3 years |
Frequently Asked Questions
What is the total bezel gap when tiling UN552V displays?
The total bezel gap between adjacent UN552V panels is 3.5mm, achieved by the ultra-narrow 1.75mm per-side bezel design. This is measured as the combined bezel width of two adjacent panels.
How many displays can be daisy chained?
The UN552V supports 4K UHD daisy chaining via DisplayPort 1.2 and HDMI 2.0 loop outputs. Chain depth depends on source resolution and the video processor used. Consult Creation Networks for system design guidance.
Does this display require a separate video wall processor?
For simple grid configurations (2x2, 3x3), TileMatrix functionality can be used with a single source signal without a dedicated video wall processor. Larger or complex configurations typically require an external video wall controller.
Is the UN552V rated for 24/7 operation?
Yes. The UN552V includes fan-based thermal management and internal temperature monitoring specifically designed for continuous 24/7 commercial operation.
What management software is compatible?
Sharp NaViSet Administrator 2 supports centralized network monitoring and control across multi-panel video wall installations.
