Sharp PN-ZB03H – HDBaseT 2.0 Receiver Board for PN-R Series Displays
Product Overview

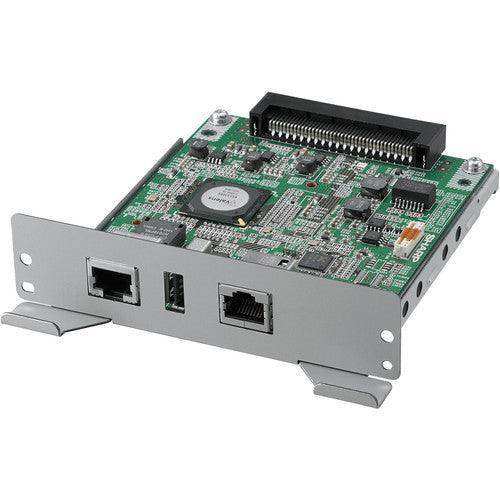

The Sharp PN-ZB03H is a Mini OPS HDBaseT 2.0 receiver module designed for installation in Sharp PN-R556, PN-R496, and PN-R426 professional LCD monitors, enabling transmission of HDMI video, audio, USB, LAN, and RS-232C signals up to 100 meters (328 feet) over a single Cat 6 cable. It eliminates the need for long HDMI cable runs in fixed installations where the display is located far from the signal source, providing a clean, integrated HDBaseT receiver solution without external boxes or power supplies.
Product Description
The PN-ZB03H installs directly into the Mini OPS expansion slot of compatible Sharp PN-R series displays, providing a true Plug and Go installation without external devices, power supplies, or additional cabling beyond the Cat 6 run. The HDBaseT 2.0 receiver supports 4K UHD resolution at up to 4096x2160 at 30Hz with HDCP pass-through, as well as HDMI audio, USB, LAN, and RS-232C signal transmission over the same Cat 6 cable. Industrial-grade components ensure reliable long-life performance in permanent commercial AV installations.
Key Features
- HDBaseT 2.0 Cat 6 Receiver — Receives HDMI video, audio, USB, LAN, and RS-232C signals over a single Cat 6 cable up to 100m.
- 4K UHD Support (4096x2160 at 30Hz) — High-resolution video transmission for 4K commercial display applications.
- Mini OPS Plug and Go Installation — Installs in the display's expansion slot with no external box, power supply, or extra cables.
- HDCP Pass-Through — Maintains HDCP copy protection for protected content sources.
- Multi-Signal Transmission — Carries HDMI video and audio, USB, LAN, and RS-232C on one Cat 6 cable.
- Industrial-Grade Components — Long-life reliability for permanent commercial AV installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-ZB03H |
| Type | HDBaseT 2.0 Mini OPS Receiver Module |
| Compatible Displays | Sharp PN-R556, PN-R496, PN-R426 |
| Max Signal Distance | 100 meters (328 feet) over Cat 6 |
| Max Resolution | 4096 x 2160 at 30Hz |
| Signals Transmitted | HDMI video, HDMI audio, USB, LAN, RS-232C |
| HDCP Support | Yes (pass-through) |
| Form Factor | Mini OPS plug-in module |
Frequently Asked Questions
- Q: What cable type is required for the PN-ZB03H?
- The PN-ZB03H requires Cat 6 cabling for HDBaseT 2.0 signal transmission up to 100 meters. Cat 5e may support shorter distances.
- Q: Which displays are compatible?
- The PN-ZB03H is compatible with the Sharp PN-R556, PN-R496, and PN-R426 professional LCD monitors. Contact Creation Networks to confirm compatibility before ordering.
