Sharp NP-PA1705UL – 17,000-Lumen WUXGA Laser 3LCD Projector (No Lens)
Product Overview
The Sharp NP-PA1705UL is a high-output WUXGA laser 3LCD installation projector delivering 16,000 lumens typical (17,000 center lumens) for large venues, higher education, and corporate deployment. Designed for demanding commercial AV environments, this professional installation projector supports 4K-ready signal processing, motorized lens options, and full control system integration via Crestron, AMX, Extron, and PJ Link. The sealed laser light source provides 20,000 hours of virtually maintenance-free operation, significantly reducing total cost of ownership compared to lamp-based alternatives. For AV integrators specifying high-ambient-light auditoriums, conference centers, or multi-purpose rooms, the NP-PA1705UL delivers the brightness, flexibility, and control interface depth required for complex installations.
Product Description

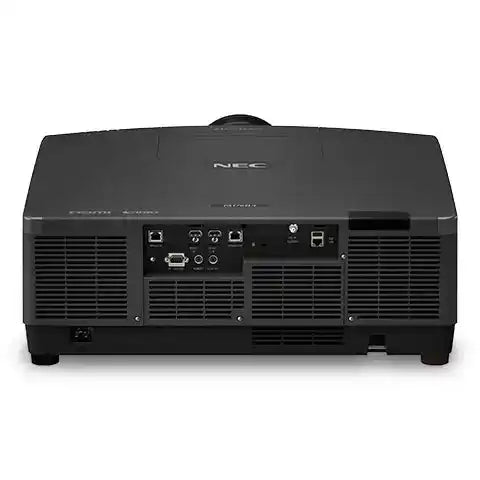

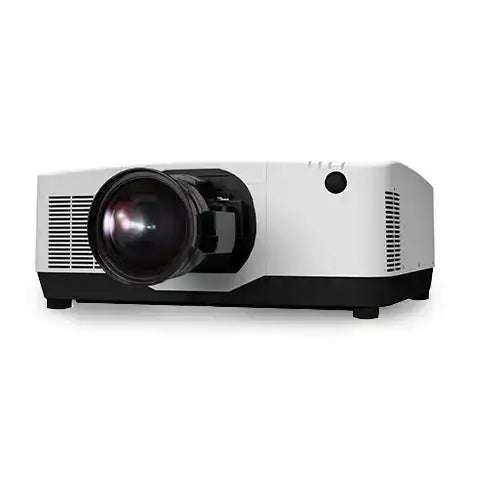

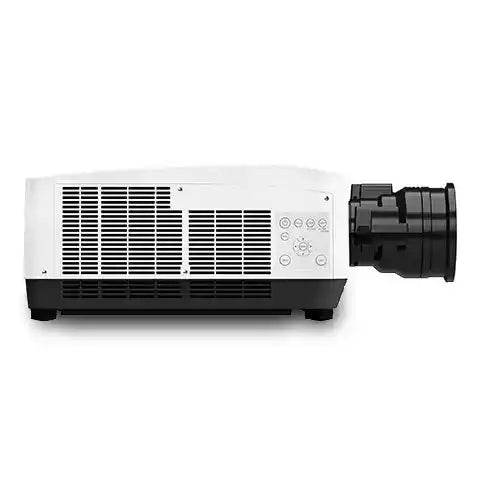

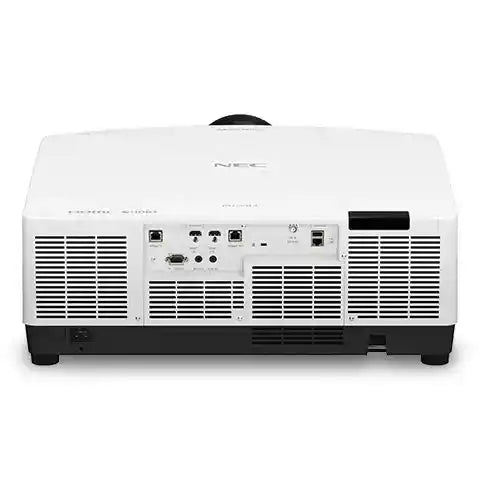

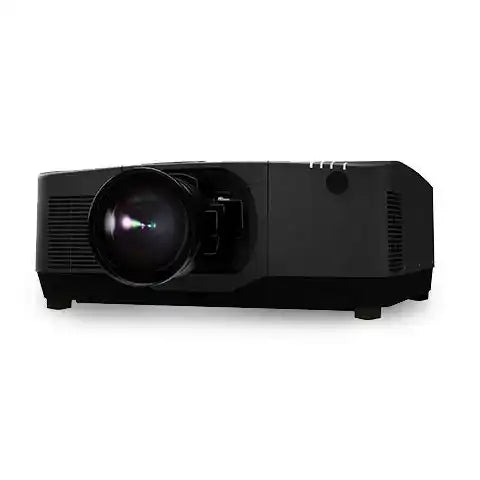

The Sharp NP-PA1705UL (No Lens) uses a 1.0" 3LCD panel with MLA and is available in black or white cabinet. Its dual HDMI 2.0 inputs with HDCP 2.2, HDBaseT input, and 3G-SDI input make it compatible with virtually any commercial AV signal chain. The HDBaseT Repeater function enables cascading for edge-blending and stacking, and the TileMatrix feature supports seamless 4K×2K displays using multiple units. ProAssist software provides network-based multi-projector calibration. The unit supports roll-free installation in any orientation with motorized lens shift, zoom, and focus for precise positioning in auditoriums, training rooms, and all-hands spaces.
Key Features
- 17,000 Center Lumens — Delivers 16,000 ANSI lumens typical with 17,000 center lumen peak, ensuring image visibility in high-ambient-light venues.
- WUXGA 1920x1200 Native Resolution — Accepts content up to 4K 4096x2160 via proprietary scaling without detail loss.
- 20,000-Hour Laser Light Source — Sealed laser eliminates lamp replacement cycles and reduces maintenance overhead.
- Motorized Lens System — Compatible with NP51ZL through NP56ZL motorized zoom lenses, covering throw ratios from 0.53:1 to 7.4:1.
- HDBaseT Input with Repeater — Single-cable delivery of HD video, audio, Ethernet, and control; repeater supports cascaded multi-projector setups.
- 3G-SDI Input — Native SMPTE ST 424M / SMPTE 292M SDI input for broadcast and live event environments.
- 4K-Ready Signal Processing — Accepts 4K 60P HDR10 and BT.2020 signals from all digital inputs.
- Control System Integration — Native support for AMX Beacon, Crestron RoomView, Extron XTP, and PJ Link; RS-232, IR, and DDC/CI paths included.
- ProAssist Software — Network-based multi-projector control for image alignment and edge blending in large-venue installations.
- Roll-Free Installation — Floor/front, floor/rear, ceiling/front, and ceiling/rear orientations with no roll restrictions.
- 3,000,000:1 Dynamic Contrast — Preserves shadow detail in mixed-content presentations.
- 5-Year InstaCare Warranty — 5-year or 20,000-hour parts and labor coverage with next-business-day exchange.
Typical Applications
- Auditorium
- House of worship
- Conference room
- Training room
- All-hands room
- Multi-purpose room
- Government space
Technical Specifications
| Specification | Value |
|---|---|
| Display Technology | 1.0" 3LCD with MLA |
| Native Resolution | WUXGA 1920x1200 |
| Maximum Resolution | 4K 4096x2160 |
| Brightness (Typical) | 16,000 lumens |
| Brightness (Center) | 17,000 lumens |
| Contrast Ratio | 3,000,000:1 Dynamic |
| Light Source Life | 20,000 hours |
| Inputs | 2x HDMI 2.0 (HDCP 1.4/2.2), 1x HDBaseT, 1x 3G-SDI |
| Control | RS-232, IR, RJ-45, HDBaseT, USB 2.0, DDC/CI |
| Power Consumption | 1035W Normal / 855W Silent |
| Power Supply | 100-240V AC, 50/60 Hz |
| Dimensions (WxHxD) | 23.6 x 9.4 x 19.3 in. (599 x 238 x 490 mm) |
| Weight | 63.3 lbs. (28.7 kg) |
| Keystone Correction | +/-40° H / +/-30° V |
| Fan Noise | 43 dB normal / 37 dB silent |
| Warranty | 5 years / 20,000 hours with InstaCare exchange |
Competitor Comparison
| Criteria | Sharp NP-PA1705UL | Panasonic PT-RZ17K | Christie D16HD-HS |
|---|---|---|---|
| Brightness | 17,000 center lumens | 16,000 lumens | 16,500 lumens |
| Technology | 3LCD laser | 1-chip DLP laser | 1-chip DLP laser |
| SDI Input | 3G-SDI standard | Optional SDI board | Optional |
| Warranty | 5 yrs / 20,000 hrs + next-day exchange | 3 years standard | 3 years standard |
| Control Integration | Crestron, AMX, Extron, PJ Link native | PJ Link, serial | Serial, network |
Frequently Asked Questions
- Does the NP-PA1705UL ship with a lens?
- No. Compatible lenses include the NP51ZL through NP56ZL motorized zoom series, covering 0.53:1 to 7.4:1 throw ratios. Lens selection depends on throw distance and screen size.
- What control systems does the NP-PA1705UL natively support?
- Built-in support for AMX Beacon, Crestron RoomView, Extron XTP, and PJ Link. RS-232, IR, wired remote, RJ-45, and HDBaseT control paths are also available.
- Can multiple units be edge-blended together?
- Yes. The HDBaseT Repeater function allows signal cascading for edge-blending and stacking. ProAssist software handles multi-projector image alignment and brightness calibration.
- What is the warranty coverage?
- Registered owners receive a 5-year or 20,000-hour parts and labor warranty including Sharp InstaCare next-business-day exchange.
- What power infrastructure is required?
- 100-240V AC, 50/60 Hz. Normal mode draws 1,035W / 12.8A. Verify circuit capacity before permanent installation.
- Is 4K content supported?
- The projector accepts 4K 60P signals including HDR10 and BT.2020 from all digital inputs. Native display resolution is WUXGA 1920x1200.
