Sharp PN-ZB01 – I/O Expansion Board for PN-E Series LCD Monitors
Product Overview

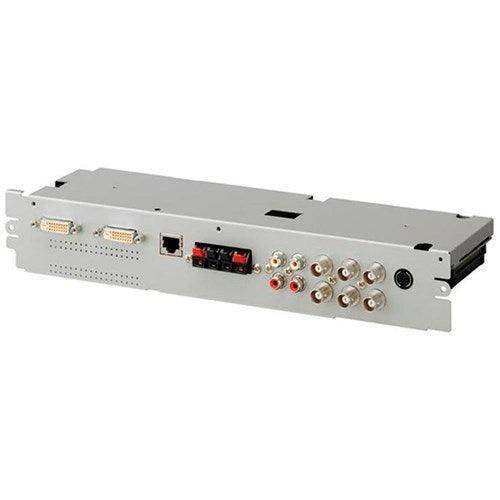

The Sharp PN-ZB01 is an optional input/output expansion board designed for installation in Sharp PN-E601, PN-E521, PN-E471, and PN-E421 professional LCD monitors, adding a comprehensive set of legacy and analog video, audio, and network control terminals to extend the display's connectivity for AV integration applications. It installs in the rear expansion bay of compatible monitors and adds DVI-D, 5-BNC analog RGB, component, S-video, composite video, stereo audio inputs, LAN control, and speaker outputs.
Product Description

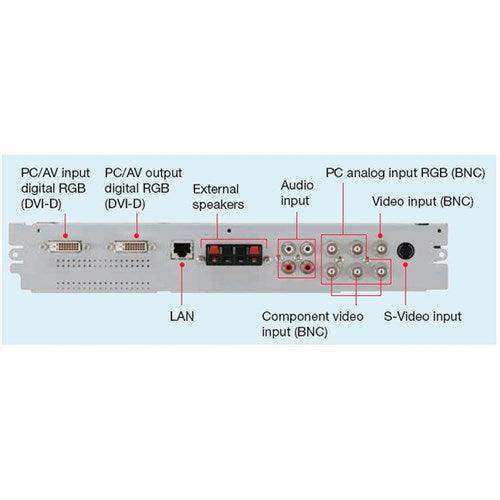

The PN-ZB01 expansion board adds the following terminals to compatible PN-E series monitors: DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), two stereo audio RCA inputs, RJ-45 LAN display control output, and stereo speaker output at 10W x 2. The board installs in the rear expansion bay without external cabling, providing a clean integrated solution for environments requiring legacy video source connectivity alongside the monitor's standard digital inputs.
Key Features
- DVI-D Input/Output — Adds digital video I/O for DVI source compatibility.
- 5-BNC Analog RGB Input — Legacy analog video source connectivity.
- Component, S-Video, and Composite Video Inputs — Full analog video source support for legacy broadcast and production environments.
- 2x Stereo Audio RCA Inputs — Audio inputs for analog audio sources.
- RJ-45 LAN Control — Network-based display control output.
- Stereo Speaker Output (10W x 2) — External speaker drive capability.
- Compatible with PN-E601, PN-E521, PN-E471, PN-E421 — Drop-in expansion for PN-E series monitors.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-ZB01 |
| Compatible Displays | Sharp PN-E601, PN-E521, PN-E471, PN-E421 |
| Added Inputs | DVI-D, 5-BNC RGB, component, S-video, composite (BNC), 2x stereo RCA audio |
| Added Outputs | DVI-D, RJ-45 LAN control, 10W x 2 speaker output |
Frequently Asked Questions
- Q: Which monitors is the PN-ZB01 compatible with?
- The PN-ZB01 is compatible with the Sharp PN-E601, PN-E521, PN-E471, and PN-E421 professional LCD monitors. Contact Creation Networks for compatibility confirmation.
