Sharp PN-ZB02 – I/O Expansion Board for PN-V601 LCD Monitor
Product Overview
The Sharp PN-ZB02 is an input/output expansion board designed specifically for the Sharp PN-V601 multi-screen LCD monitor, adding DVI-D daisy-chain capability, legacy analog video inputs, stereo audio inputs, LAN control, and external speaker output to expand the PN-V601's connectivity for video wall and AV integration applications. The DVI daisy-chain capability makes it particularly useful in video wall configurations where multiple PN-V601 monitors need to be driven from a single source over DVI.
Product Description

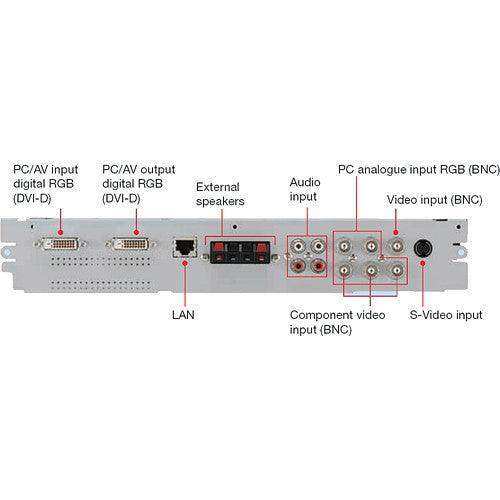

The PN-ZB02 installs in the rear expansion bay of the PN-V601 and adds: DVI-D input/output (enabling DVI daisy chain for video wall applications), 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), two stereo audio RCA inputs, RJ-45 LAN display control, and stereo speaker output at 10W x 2.
Key Features
- DVI Daisy Chain for Video Walls — DVI-D input/output enables chaining multiple PN-V601 monitors for video wall signal distribution.
- 5-BNC Analog RGB, Component, S-Video, and Composite Inputs — Legacy video source connectivity.
- 2x Stereo RCA Audio Inputs — Analog audio source inputs.
- RJ-45 LAN Control — Network display control.
- 10W x 2 Speaker Output — External speaker drive capability.
- Compatible with PN-V601 — Drop-in expansion for the PN-V601 video wall monitor.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PN-ZB02 |
| Compatible Display | Sharp PN-V601 |
| Added Inputs | DVI-D, 5-BNC RGB, component, S-video, composite (BNC), 2x stereo RCA audio |
| Added Outputs | DVI-D (daisy chain), RJ-45 LAN control, 10W x 2 speaker output |
Frequently Asked Questions
- Q: What makes the PN-ZB02 different from the PN-ZB01?
- The PN-ZB02 is designed specifically for the PN-V601 and includes DVI daisy-chain capability for video wall applications. The PN-ZB01 is designed for the PN-E series monitors without the video wall daisy-chain focus.
- Q: What is the warranty?
- Contact Creation Networks for warranty and service details.
