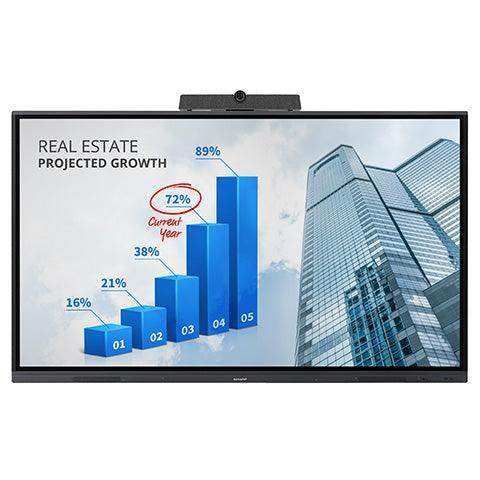

Sharp PN-L862B – 86" AQUOS BOARD 4K Interactive Display PrecisionTouch

Product Overview

The Sharp PN-L862B is an 86-inch AQUOS BOARD interactive display featuring 4K UHD resolution, 20-point PrecisionTouch technology with Zero Bonding, and a built-in Arm Cortex-A73 quad-core SoC controller for whiteboard, annotation, and wireless presentation without an external PC. The pen-on-paper writing experience, single USB-C connection for instant collaboration, and OPS expansion slot make the PN-L862B a premium large-format interactive display for boardrooms, all-hands rooms, and training environments.

Product Description

The PN-L862B uses an 85.6-inch direct-lit LCD panel at 3840x2160 UHD with 400 cd/m2 brightness and 1200:1 contrast ratio. The 20-point PrecisionTouch IR touch system with Zero Bonding reduces parallax between the pen tip and cursor position, producing a writing response closely resembling pen on paper. The built-in Arm Cortex-A73 quad-core SoC handles whiteboard, overlay annotation, wireless screen sharing, and SHARP Touch Viewer file manipulation independently of any external device. Wi-Fi and Bluetooth connectivity (via included adapter) enable wireless presentations. HDMI inputs and an OPS-compliant expansion slot provide flexible source and compute connectivity. The optional PN-ZCMS1 AV Soundbar extends the system with an integrated camera and microphone for video conferencing applications. Built-in 10W x 2 stereo speakers support meeting audio without external amplification.

Key Features

• 20-Point PrecisionTouch with Zero Bonding — Reduces parallax for natural pen-on-paper writing experience on a 86-inch canvas.
• Built-In Arm Cortex-A73 Quad-Core SoC — Handles whiteboard, annotation, and wireless sharing without external compute.
• SHARP Pen Software — On-screen annotation and graphics for interactive presentations.
• SHARP Touch Viewer — Easy manipulation of multiple file types directly on the display.
• OPS-Compliant Expansion Slot — Optional Windows OPS module for full PC functionality when required.
• Wi-Fi and Bluetooth (via Included Adapter) — Wireless screen sharing and peripheral connectivity.

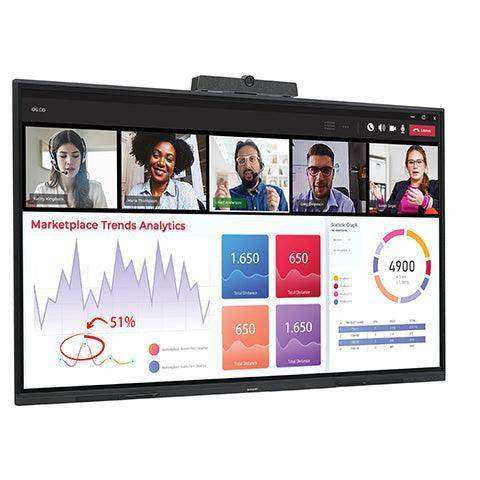

• Optional PN-ZCMS1 Soundbar — Adds camera and microphone for video conferencing.
• 86-Inch 4K UHD Direct-Lit Display — 400 cd/m2, 1200:1 contrast ratio for large meeting rooms.
• Built-In 10W x 2 Stereo Speakers — Meeting room audio without external amplification.
• 3-Year Warranty — Standard commercial warranty coverage.

Typical Applications

• Conference room
• Boardroom
• All-hands room
• Training room
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: What is Zero Bonding?

Zero Bonding eliminates the air gap between the touch sensor and the display panel, reducing parallax (the offset between pen tip and cursor position) for more accurate and natural writing.

Q: What is the difference between PN-L862B and PN-LC862?

The PN-L862B features 20-point PrecisionTouch with Zero Bonding and an Arm A73 quad-core SoC. The PN-LC862 uses standard IR touch with an A55 SoC but includes USB-C input for single-cable laptop connection.

Q: Can the PN-L862B run Microsoft Teams or Zoom?

The built-in SoC handles whiteboard and wireless sharing. For running Teams or Zoom natively, an OPS module or connected laptop is required.

Q: What is the warranty?

Sharp provides a 3-year warranty. Contact Creation Networks for service plan options.
