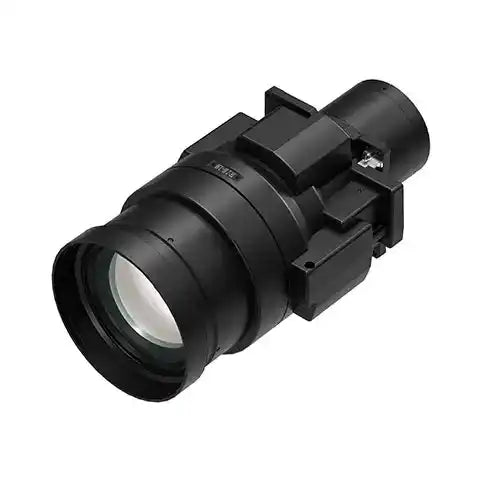

Sharp NP55ZL – 1.98-3.95 Long-Throw Zoom Lens for PA1505/PA1705/XP-A201U

Product Overview

The Sharp NP55ZL is a motorized long-throw zoom lens with a 1.98-3.95:1 throw ratio, compatible with the NP-PA1505UL, NP-PA1705UL, and XP-A201U-B professional installation projectors. This lens is suited for large venues where the projector must be positioned at significant distance from the screen—including large auditoriums, lecture halls, and house of worship sanctuaries where standard-throw lenses cannot achieve the required image size from the available mounting position. Motorized zoom, focus, and lens shift enable full remote optical adjustment after installation.

Product Description

The NP55ZL occupies the long-throw position in the NP5x lens series, covering projection distances significantly greater than the standard-throw NP54ZL (1.24-2.01:1). With a 2.0x zoom ratio and 1.98-3.95:1 throw range, it positions the projector at approximately 14.3 to 28.4 feet from a 100-inch-wide screen. This makes it the appropriate lens for large-room back-of-house ceiling mounts, balcony positions, and projection booth setups. The motorized lens shift range allows off-axis mounting in venues where structural constraints prevent centered projector placement.

The NP55ZL is sold separately from the projector body and must be specified as a distinct line item in commercial AV system designs.

Key Features

• 1.98-3.95:1 Throw Ratio — Long-throw range for large auditoriums, lecture halls, and venues requiring significant projector-to-screen distance.
• Motorized Zoom and Focus — Remote operation of all optical adjustments after ceiling or booth installation.
• Motorized Lens Shift — Horizontal and vertical optical offset for off-axis projector placement without keystone distortion.
• Multi-Platform Compatibility — Compatible with NP-PA1505UL, NP-PA1705UL, and XP-A201U-B projectors.
• Bayonet Mount with Anti-Theft Lock — Secure tool-free exchange for permanent large-venue installations.

Typical Applications

• Large auditorium and concert hall
• House of worship main sanctuary with rear projection position
• Higher education large lecture hall
• Government facility and command center
• Multi-purpose venue with back-of-house projection booth

Technical Specifications

Frequently Asked Questions

Q: Which projectors is the NP55ZL compatible with?

The NP55ZL is compatible with the NP-PA1505UL, NP-PA1705UL, and XP-A201U-B professional installation projectors.

Q: When should I choose the NP55ZL over the NP54ZL?

Use the NP55ZL when the room depth requires a throw ratio above 2.01:1. The NP54ZL (1.24-2.01:1) covers standard-depth rooms; the NP55ZL extends coverage to much larger venues and longer projection distances.

Q: Is this lens sold with the projector?

No. The NP55ZL is sold separately and must be specified as a distinct line item at system design time.

Q: Where can I purchase the NP55ZL?

Available at Creation Networks, an authorized Sharp commercial AV reseller.
