Sharp NP52ZL – 0.63-0.85 Short-Throw Zoom Lens for PA1505/PA1705

Product Overview

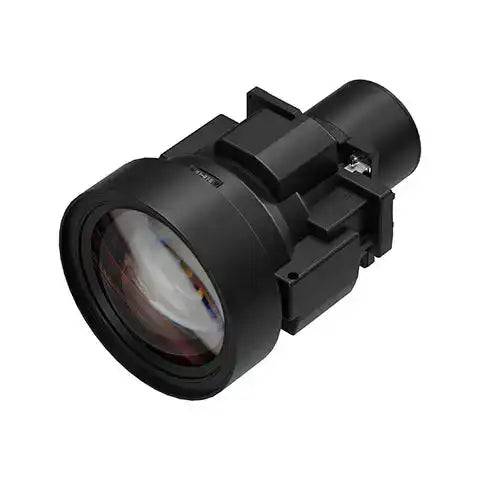

The Sharp NP52ZL is a motorized short-throw zoom lens with a 0.63-0.85:1 throw ratio, compatible with the NP-PA1505UL and NP-PA1705UL professional installation laser projectors. This lens targets installations where the projector must be placed at a relatively short distance from the screen—typical for rooms with low ceilings, limited rear-wall clearance, or space-constrained projection environments in corporate, educational, and institutional AV deployments. Motorized zoom, focus, and lens shift allow full optical alignment from the projector remote or network management software after ceiling mounting.

Product Description

The NP52ZL fits between the NP51ZL (0.53-0.65:1) and NP53ZL (0.86-1.25:1) in the NP5x short-throw lens family, covering a throw range appropriate for mid-depth rooms where a standard-throw lens would require more distance than the room allows. At 0.63-0.85:1, the projector can be placed significantly shorter than the NP53ZL or NP54ZL allow. Motorized lens shift enables off-axis mounting without digital keystone compensation, preserving image geometry in ceiling-mount installations where the projector cannot be centered on the screen axis.

The NP52ZL is sold separately from the NP-PA1505UL and NP-PA1705UL projector bodies. Both projectors ship without a lens and require a separately purchased NP5x series lens for operation.

Key Features

• 0.63-0.85:1 Throw Ratio — Short-throw range for constrained rooms where longer projection distances are not available.
• Motorized Zoom and Focus — Remote optical adjustment after ceiling installation, reducing commissioning time.
• Motorized Lens Shift — Horizontal and vertical optical offset for precise off-axis image placement without keystone correction.
• Compatible with NP-PA1505UL and NP-PA1705UL — Designed for Sharp NP-PA series high-lumen laser installation projectors.
• Bayonet Mount with Anti-Theft Lock — Tool-free installation with security lock screw for permanent commercial environments.

Typical Applications

• Corporate conference room with limited projector-to-screen depth
• Higher education classroom with constrained ceiling mount position
• House of worship with close projection setup
• Government meeting room with space limitations
• Multi-purpose room requiring short-throw installation

Technical Specifications

Frequently Asked Questions

Q: Which projectors is the NP52ZL compatible with?

The NP52ZL is designed for the NP-PA1505UL and NP-PA1705UL professional installation projectors.

Q: How does the NP52ZL differ from the NP51ZL?

The NP51ZL (0.53-0.65:1) allows shorter projection distances. The NP52ZL (0.63-0.85:1) covers a slightly longer short-throw range. Choose the NP51ZL for the tightest room depths; choose the NP52ZL when slightly more projection distance is available.

Q: Is this lens sold with the projector?

No. The NP52ZL must be purchased separately from the projector body.

Q: Where can I purchase the NP52ZL?

Available at Creation Networks, an authorized Sharp commercial AV reseller.
