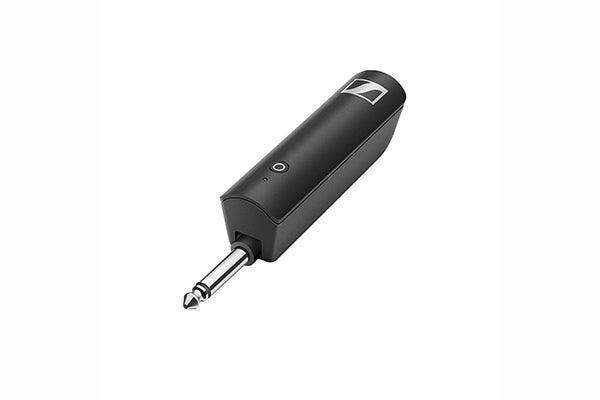

Sennheiser XSW-D INSTRUMENT RX XS Wireless Digital receiver with jack (6.3mm, 1/4") output and (1) USB charging cable - 508498
Sennheiser XSW-D INSTRUMENT RX XS Wireless Digital receiver with jack (6.3mm, 1/4") output and (1) USB charging cable - 508498 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser XSW-D INSTRUMENT RX XS Wireless Digital receiver with ja...
Product Overview
The Sennheiser XSW-D INSTRUMENT RX is the standalone instrument receiver component for the XSW-D digital wireless platform, featuring a 6.3 mm mono jack output for direct connection to guitar amplifiers, DI boxes, and pedal chains. Sold individually for custom configurations, component replacement, or building a multi-channel XSW-D instrument wireless setup with separately sourced transmitters. At $179.95, it provides the receiver half of a digital wireless instrument link operating on license-free 2.4 GHz.
Product Description
The XSW-D INSTRUMENT RX is the receiver component used in the XSW-D INSTRUMENT BASE SET and PEDALBOARD SET, available as a standalone unit for integrators and musicians who need to add a receiver to an existing XSW-D setup, replace a receiver, or build a custom wireless instrument configuration. The 6.3 mm mono jack output connects directly to the input of a guitar amplifier, effects pedal, or DI box, replicating the exact connection point of a standard instrument cable. The XSW-D platform operates on license-free 2.4 GHz digital wireless with automatic channel management, delivering uncompressed audio with low latency appropriate for live instrument performance. USB-rechargeable battery is charged via the included USB cable, providing approximately 5 hours of operation per charge. The INSTRUMENT RX is compatible with any XSW-D instrument transmitter (INSTRUMENT TX) for a standard wireless guitar/bass link, or with other XSW-D transmitters as part of a custom digital wireless configuration.
Key Features
- 6.3 mm Mono Jack Output — Direct connection to amplifier, DI box, or pedal input; no adapters required.
- Standalone Receiver — Component purchase for custom builds, expansion, or replacement in existing XSW-D instrument setups.
- 2.4 GHz License-Free Digital Wireless — No frequency licensing; automatic channel management.
- Uncompressed Digital Audio — Low latency for live instrument performance.
- USB Charging — Rechargeable battery; USB cable included.
- XSW-D Platform Compatible — Pairs with XSW-D INSTRUMENT TX and other compatible XSW-D transmitters.
Technical Specifications
| Wireless Technology | 2.4 GHz digital (license-free) |
| Audio | Uncompressed digital |
| Output | 6.3 mm mono jack |
| Power | USB rechargeable |
| Compatible Transmitters | XSW-D INSTRUMENT TX (and compatible XSW-D TX units) |
