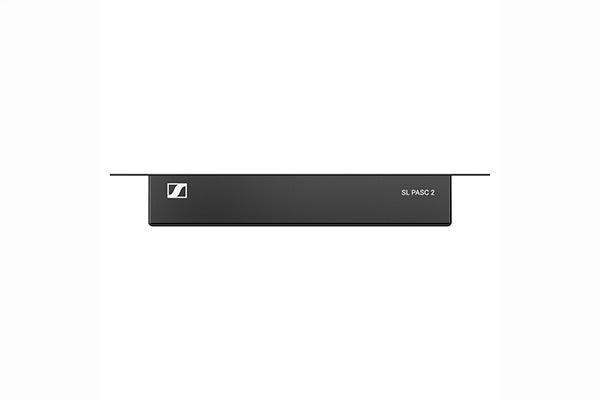

Sennheiser SL PASC 2 Passive 2-way True Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series with 2 RF inputs and 4 RF outputs, DECT Range (1880 - 1930 MHz) - 390040
Sennheiser SL PASC 2 Passive 2-way True Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series with 2 RF inputs and 4 RF outputs, DECT Range (1880 - 1930 MHz) - 390040 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sennheiser SL PASC 2 Passive 2-way True Diversity antenna splitter/...
Product Overview
The Sennheiser SL PASC 2 is a passive 2-way True Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series. It supports 2 RF inputs and 4 RF outputs in the DECT band (1880–1930 MHz) for distributing antenna signals to multiple SpeechLine receivers. Available at Creation Networks for large SpeechLine installations.
Product Description
The SL PASC 2 is a passive 2-way True Diversity antenna splitter/combiner designed specifically for the Sennheiser SpeechLine Digital Wireless (SL DW) series. It enables a single pair of diversity antennas to serve multiple SpeechLine DW receivers through 2 RF inputs and 4 RF outputs, operating in the DECT frequency range of 1880–1930 MHz. This passive design requires no external power, simplifying installation. The SL PASC 2 is the essential building block for expanding SpeechLine antenna infrastructure to support multiple SL DW receivers from a centralized antenna array. Ideal for conference centers, corporate offices, and facilities with multiple SpeechLine conference microphone systems sharing common antenna infrastructure.
Key Features
- 2 RF Inputs, 4 RF Outputs — Serves up to four receiver diversity antenna inputs from two antennas.
- DECT Band (1880–1930 MHz) — Designed specifically for SpeechLine DW frequency range.
- Passive Design — No external power required.
- True Diversity Support — Maintains diversity antenna configuration for all connected receivers.
- SpeechLine DW Specific — Designed for SpeechLine Digital Wireless multi-receiver installations.
Technical Specifications
| Inputs/Outputs | 2 RF inputs, 4 RF outputs |
|---|---|
| Frequency Range | 1880–1930 MHz (DECT) |
| Power | Passive (no external power) |
| Compatible Systems | Sennheiser SpeechLine Digital Wireless |
