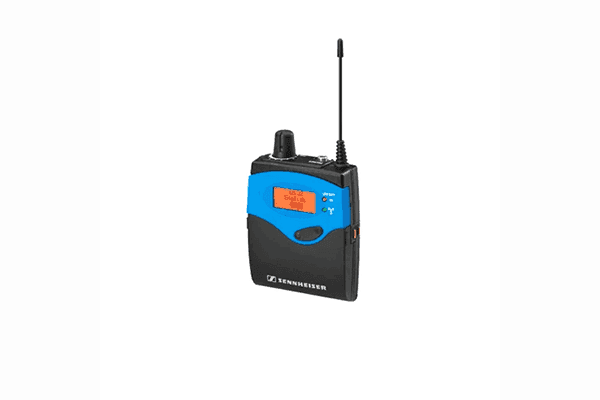

The Sennheiser EK 1039 is a rugged, reliable tour guide receiver with intuitive handling and user-friendly operation. It is suitable for many applications such as guided tours, multi-language interpretation, assistive listening and field communications, and can be used with all Sennheiser headphones and induction loops that terminate in a 3.5 mm jack plug. The EK 1039 provides up to 88 Mhz of switching bandwidth and 32 preset frequencies, and each channel can be identified with a unique name that is shown with the channel number and battery status on the backlit display.
The receiver copy function allows you to quickly configure multiple receivers, and the lock function prevents unintended changes to the receiver. The EK 1039 can powered for up to eight hours via the included rechargeable battery pack or two AA batteries (available separately). The compatibility with wireless transmitters of the ew G4 300/500 series and 2000 series provides the EK 1039 with an exceptional level of transmission reliability.
Note: Please contact your Sales Pro for more information on this and other products.
Sennheiser EK 1039 Applications:
Professional system rental companies
Trade show organizers
Company technicians
Museums employees
Interpreter associations
Theaters/events
Guided tours
Press conferences
Museum tours
Trade fair events
Interpreting
Assistive listening
Receiving commands such as when playing sports
Sennheiser EK 1039 Includes:
- EK 1039 receiver
- BA 2015 rechargeable battery
Sennheiser EK 1039 Features:
- Easy to operate
- Up to 32 channels in parallel
- Speech is highly intelligible
- Simple channel selection and volume setting
- Channel and battery status shown clearly on the display
- Customizable channel name makes it easy to find the desired channel
- Copy function between receivers for easy preset handling
- Configurable lock function for protection against unwanted operation
- Reliability:
- Up to 88 MHz switching bandwidth - the tourguide system with the widest range
- Adaptive Diversity technology for improved RF reception quality
- Reliable operation with standard AA cells or rechargeable batteries
- Audio quality:
- Speech is highly intelligible thanks to an audio bandwidth of 15 kHz
Sennheiser EK 1039 Specifications:
- Frequency ranges:
- AW+: 470 – 558 MHz
- GW: 558 – 626 MHz
- BW: 626 - 698 MHz
- CW: 718 - 790 MHz
- DW: 790 - 865 MHz
- Dimensions: 81 x 65 x 23 mm
- Audio-XLR connector: 3.5 mm
- Frequency response: 40 Hz – 15000 Hz
- Weight (incl. accu): 200 g
- Storage temperature: -20°C - +70°C
- Operating temperature: -10°C - +55°C
- Signal-to-noise ratio: > 90 dBa
- Switching bandwidth: 88 MHz
- Operating time: typ. 8 h
- Modulation: broadband FM, MPX mono
- Audio-Output-Power: 100 mW @ 32 Ω
- Frequency band: UHF
- Operating voltage (stand alone): 2x 1.5 V AA (BA 2015)
