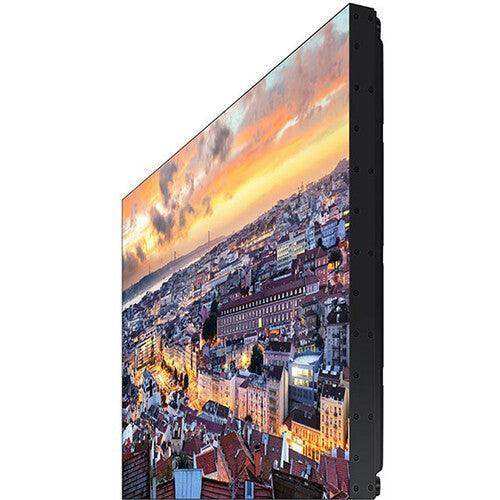

Samsung VH55B-E Series 55" Class Full HD Video Wall Monitor

Product Overview

The Samsung VH55B-E is a 55" Full HD narrow-bezel LCD video wall monitor engineered for tiled video wall installations in lobbies, control rooms, and retail environments. Its 1.74 mm bezel-to-bezel design keeps content nearly continuous across multiplexed arrays, while 700 nits of brightness keeps messaging legible under demanding ambient light. Rated for 24/7 operation with an IPS-type panel and wide 178° viewing angles, this commercial video wall display suits always-on digital signage. Daisy-chain connectivity simplifies cabling across large multi-panel deployments.

Product Description

Designed for integrators building tiled video walls up to 10x10, the VH55B-E pairs a 55" Full HD (1920 x 1080) IPS-type panel with an extreme narrow 1.74 mm bezel-to-bezel gap so adjacent panels present an almost uninterrupted image. As shown in the product images, the slim cabinet depth gives installers flexibility for flush wall and recessed mounting. A 700-nit, anti-glare matte panel maintains vivid, evenly lit content in bright lobbies and control rooms, and the 24/7 duty cycle supports continuous commercial signage. DisplayPort 1.2 and HDMI daisy-chaining let one source drive multiple screens without an external graphics card, reducing cabling complexity in large arrays. RS-232C and RJ45 connectivity support integration with AV control and content management systems, and Samsung's Color Expert Pro tools enable uniform brightness and white-balance calibration across the wall. IP5X dust resistance and EMC Class B compliance make it dependable for demanding 24/7 environments. Browse the full Samsung video wall collection for compatible mounts and accessories.

Key Features

• 1.74 mm Narrow Bezel — The extreme narrow bezel-to-bezel gap keeps content nearly continuous across tiled video wall arrays for cohesive large-format imagery.
• 700-Nit Brightness — High brightness keeps signage and data legible under bright ambient lighting in lobbies, retail floors, and control rooms.
• Full HD IPS-Type Panel — The 1920 x 1080 IPS-type panel delivers wide 178° viewing angles so content stays accurate from off-axis positions.
• 24/7 Duty Cycle — Rated for continuous around-the-clock operation in landscape or portrait orientation for always-on video wall deployments.
• Daisy-Chain Connectivity — DisplayPort 1.2 and HDMI daisy-chaining drive multiple panels from a single source without an external graphics card.
• Color Expert Pro Calibration — Factory tuning plus Color Expert Pro software supports uniform brightness and color across the entire wall.
• IP5X Dust Resistance — The dust-resistant rating keeps performance stable in demanding commercial and industrial environments.
• Control-System Integration — RS-232C and RJ45 connectivity allow integration with AV control and content management systems for scheduling and monitoring.

Typical Applications

• Control room and operations center video walls
• Corporate lobby and commercial meeting space signage
• Broadcast studio backdrops
• Auditorium and multi-purpose room large-format display
• Government space command-and-control walls

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How many VH55B-E panels can be tiled together?

The VH55B-E supports large tiled video wall configurations up to 10x10. Daisy-chaining over DisplayPort 1.2 or HDMI lets a single source feed multiple panels, simplifying cabling across the array.

Does it require an external media player or graphics card?

For multi-panel content distribution, the built-in daisy-chain feature drives multiple screens without a dedicated external graphics card. Samsung's signage player and content management tools can be added for scheduled signage.

Can it be calibrated for color uniformity across the wall?

Yes. Each panel ships factory-tuned, and Color Expert Pro plus the mobile calibration tool let integrators match white balance and brightness across arrays up to 5x5 for consistent imagery.

What control interfaces are available for AV integration?

The VH55B-E provides RS-232C in/out, an RJ45 LAN port, and IR in/out, allowing integration with common control systems for power, source, and scheduling management.

What warranty applies?

Samsung provides a commercial limited warranty on this video wall model. Contact Creation Networks for current warranty terms and extended coverage options.
