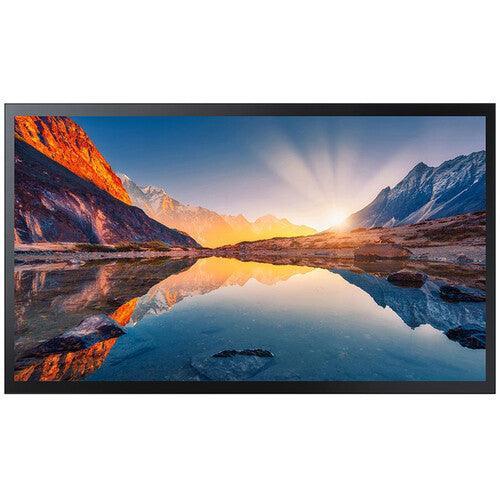

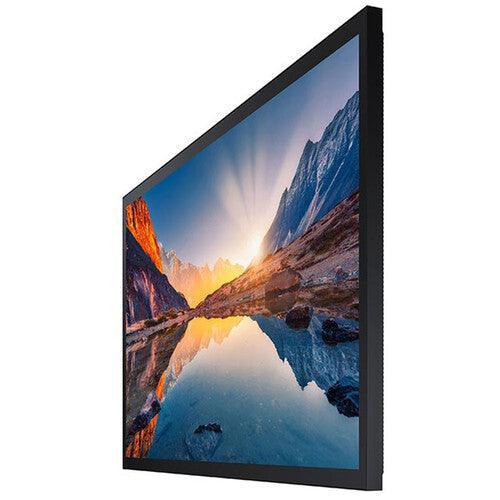

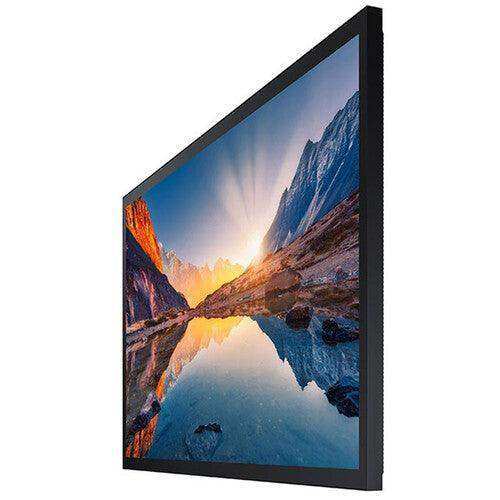

Samsung QM55B-T Series 55" Class 4K UHD Commercial Monitor

Product Overview

The Samsung QM55B-T is a 55" 4K UHD commercial touch display built for interactive digital signage and self-service deployments. With responsive capacitive touch, a built-in Tizen 6.5 media player, and an IP5X dust rating, this commercial touchscreen monitor suits high-traffic public spaces and conference rooms alike. Its 24/7 duty cycle and landscape or portrait mounting give AV integrators flexible installation options. It pairs with Samsung MagicINFO for centralized content management across multiple sites.

Product Description

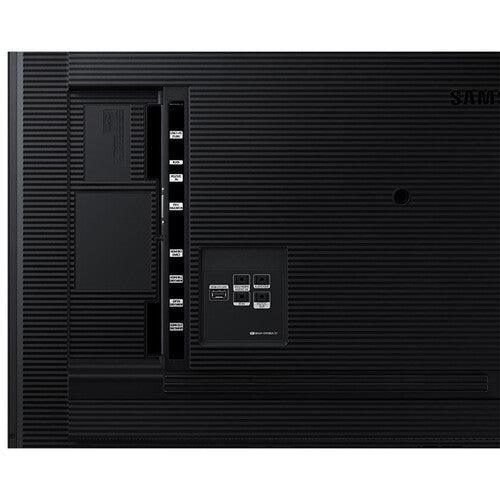

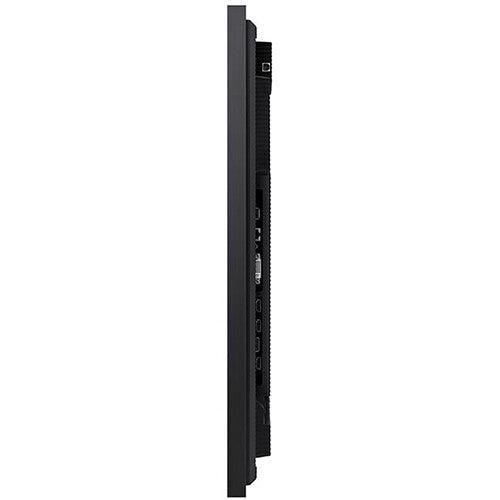

Designed for integrators deploying interactive signage at scale, the QM55B-T combines a 55" VA LCD panel at native 4K UHD (3840 x 2160) resolution with on-board capacitive touch, removing the need for an external touch overlay. As shown in the product images, the all-in-one chassis keeps the installation clean while supporting both wall-mount and kiosk enclosures. A 500-nit brightness rating with non-glare glass and a 25% haze coating keeps content legible in brightly lit lobbies, while the 4000:1 static contrast ratio preserves detail. Three HDMI 2.0 inputs plus DisplayPort 1.2 accommodate multiple sources, and RS-232C with RJ45 supports control-system integration. The embedded Tizen platform runs signage content without an external player, and features such as Tizen Zero Config and Smart Calibration streamline remote management for multi-location commercial deployment. The display is rated for 24/7 operation in landscape or portrait orientation, making it a dependable choice for unattended interactive kiosks. Browse the full Samsung commercial display collection for complementary models.

Key Features

• 4K UHD Native Resolution — The 3840 x 2160 VA panel renders detailed text and graphics for menu boards, wayfinding, and interactive catalogs.
• Integrated Capacitive Touch — Built-in capacitive touch delivers responsive multi-touch interaction without a separate overlay, simplifying installation and reducing parallax.
• Tizen 6.5 Media Player — The embedded Tizen operating system plays signage content directly, eliminating the cost and cabling of an external media player.
• IP5X Dust Rating — The dust-resistant rating keeps performance stable in retail floors, transit hubs, and other demanding public environments.
• 500-Nit Brightness with Non-Glare Glass — A 500-nit panel paired with a 25% haze anti-glare treatment keeps content readable under bright ambient lighting.
• 24/7 Duty Cycle — Rated for continuous around-the-clock operation in landscape or portrait orientation for always-on interactive deployments.
• MagicINFO Compatibility — Works with Samsung MagicINFO (licensed separately) for centralized scheduling, content creation, and remote device management.
• Control-System Integration — RS-232C and RJ45 connectivity allow integration with AV control systems for scheduling, power, and source switching.

Typical Applications

• Conference room interactive displays
• Commercial meeting space wayfinding and check-in
• Training room collaboration
• Multi-purpose room signage and presentation
• Government space self-service kiosks

Technical Specifications

Frequently Asked Questions

Does the QM55B-T require an external media player?

No. The display includes an embedded Tizen 6.5 media player with 16 GB of storage, so it can run signage content and approved apps without an external player or PC. For larger networks, it pairs with Samsung MagicINFO (licensed separately) for centralized scheduling.

Can it be integrated with an AV control system?

Yes. The QM55B-T provides RS-232C in/out, an RJ45 LAN port, and IR input, allowing integration with common control systems for power, input switching, and scheduling in conference rooms and managed signage networks.

Is the touch functionality built in or does it need an overlay?

Capacitive touch is integrated into the panel, so no separate touch overlay is required. This reduces parallax and simplifies installation for interactive kiosks and collaboration spaces.

Can the display be mounted in portrait orientation?

Yes. The QM55B-T supports both landscape and portrait installation and is rated for 24/7 operation, making it suitable for wayfinding columns and vertical menu boards.

What warranty applies?

Samsung provides a commercial limited warranty on this model. Contact Creation Networks for current warranty terms and extended coverage options for your deployment.
