Description

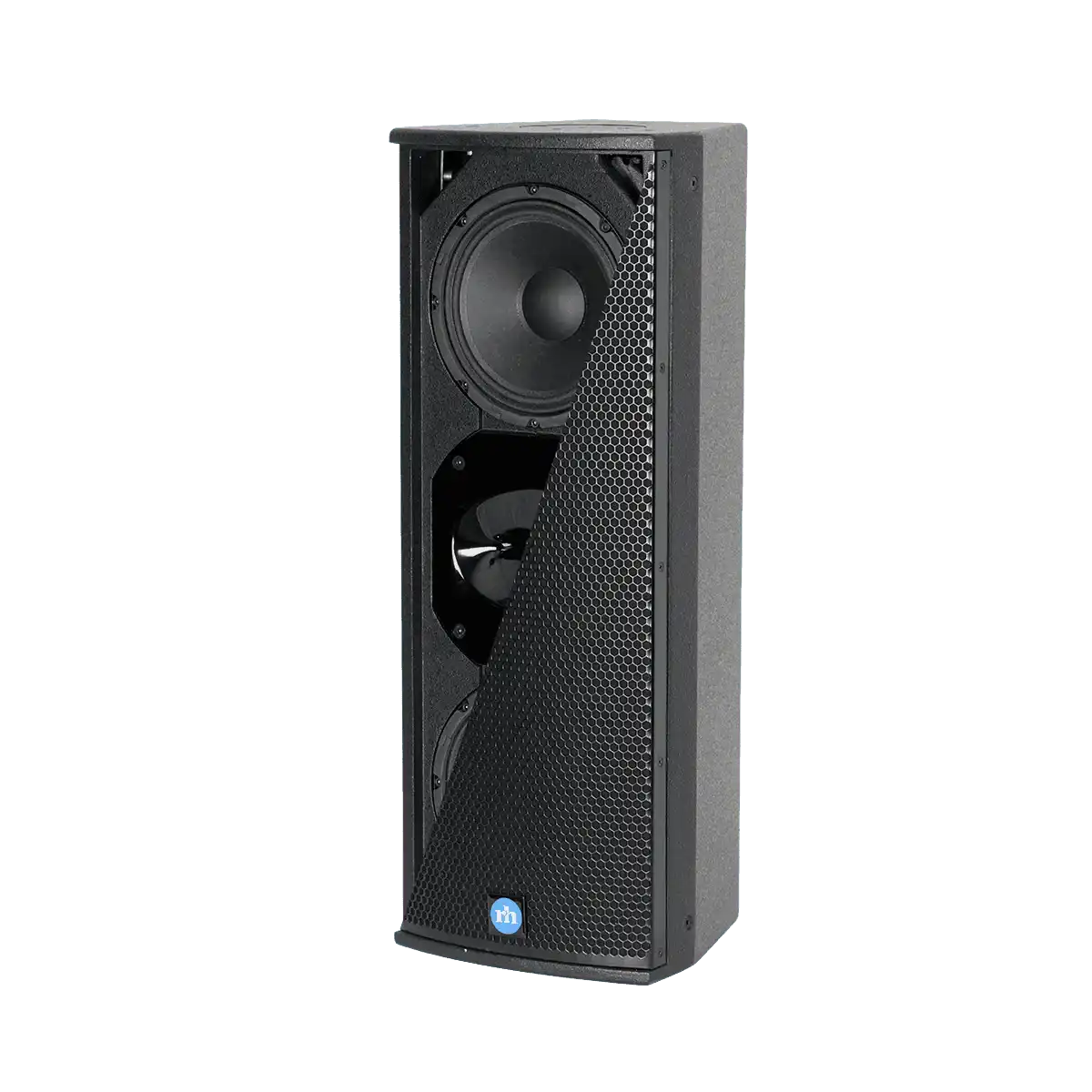

Two-Way Complex Conic Loudspeaker System

The C82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.

C Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like our Complex Conic horns deliver natural sounding music and intelligible speech.

Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, C Series loudspeakers are the choice for unequalled value.

Features

• Miniaturized Design
Outstanding, full-range 90 Hz to 20 kHz performance in a extremely compact, space-saving design.
• Exclusive Complex Conic Design
Complex Conic Horn provides superior pattern control with low distortion.
• Coverage Pattern
Complex Conic Horn provides smooth 120º x 60º coverage.
• 1-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Dual Heavy-Duty 8-inch Woofers
With carbon fiber cones easily handles 500 Watts of program power.
• Built-in Crossover
Eliminates need for a separate electronic crossover and bi-amplification.

Applications

• Virtually any application where size is a critical issue and high output and outstanding sonic performance is required.

• Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
over balconies, etc.

• Foreground music systems in shopping malls, retail stores, offices, etc.

• Multi-channel playback systems in dance clubs (with optional subwoofers), compact floor monitors, cue loudspeakers for live music, etc.

Technical Information
Sensitivity: CX82 99 dB (1W/1m)
Max SPL: CX82 129 dB Peak
CA82-A
CA82-RN
CA82-RD		 126 dB Peak
Dispersion: CX82
CA82-A
CA82-RN
CA82-RD		 120° x 60°, rotatable horn, configured for speaker horizontal application, (90° x 60° available for purchase)
Freq. Response: CX82
CA82-A
CA82-RN
CA82-RD		 ± 3 dB, 90 Hz to 20 kHz
HF Driver: CX82
CA82-A
CA82-RN
CA82-RD		 1″ Titanium driver, model SSD1445-16; 20 W AES
LF Driver: CX82
CA82-A
CA82-RN
CA82-RD		 Dual 8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms
Power Rating: CX82 250 W AES @ 8 Ohms
500 W Pgm @ 8 Ohms
CA82-A
CA82-RN
CA82-RD		 See SA625 Amplifier
Enclosure: CX82
CA82-A
CA82-RN
CA82-RD		 Poplar Ply, perforated metal grille
Connectors: CX82 Screw terminals & looping 4-pin Neutrik Speakon style connectors
CA82-A
CA82-RN
CA82-RD		 See SA625 Amplifier
Finish: CX82
CA82-A
CA82-RN
CA82-RD		 Black or White Paint
Hardware: CX82
CA82-A
CA82-RN
CA82-RD		 12-point Universal Mounting Hardware
(Metric M6 threads)
M10 U-bracket attachment points
Dimensions: CX82
CA82-A
CA82-RN
CA82-RD		 28-1/2″ H x 10-5/16″ W x 10-1/2″ D
724 mm H x 262 mm W x 267 mm D
Weight: CX82
CA82-A
CA82-RN
CA82-RD		 34 Lbs / 15.4 kg, Net

SA625 Amplifier Specifications
Audio Connections: CA82-A 2 x XLR-3, In & Loop-out, Analog
CA82-RN 2 x XLR-3, In & Loop-out, Analog & AES
CA82-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: CA82-RN 2 x RJ45, Looping Ethernet/RHAON
CA82-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: CA82-A +22 dBu, Analog
CA82-RN
CA82-RD		 +22 dBu, Analog, 0 dBFS digital
User DSP: CA82-RN
CA82-RD		 Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: CA82-RN
CA82-RD		 RHAON II
Latency: CA82-A
CA82-RN		 6.25 ms
CA82-RD 6.25 ms + Dante transport latency
Power Output: CA82-A
CA82-RN
CA82-RD		 LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: CA82-A
CA82-RN
CA82-RD		 100-240 volts, 50/60 Hz auto-switching
Power Consumption: CA82-A
CA82-RN
CA82-RD		 Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector: CA82-A
CA82-RN
CA82-RD		 Neutrik powerCON TRUE-1
Temprature Limits: CA82-A
CA82-RN
CA82-RD		 Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
