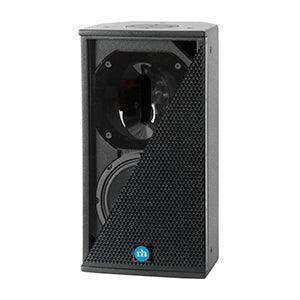

Renkus-Heinz CA81‐RD Self‐Powered with RHAON & Dante Redundant, SA625‐RD Amp Module

Product Overview

The Renkus-Heinz CA81-RD is a self-powered 8-inch two-way point-source loudspeaker with Dante digital audio and network redundancy, part of the in-stock C Series for permanent install applications. It combines an 8-inch heavy-duty woofer and a 1-inch titanium HF driver on a rotatable Complex Conic waveguide with an integrated SA625-RD amplifier module, RHAON II control, and onboard DSP. As a networked install loudspeaker, it suits fills, delays, and distributed systems in conference rooms, boardrooms, and house-of-worship spaces.

Product Description

The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CA81 features an 8-inch heavy-duty woofer and a 1-inch Extended Range titanium HF driver, with a 120° x 60° Complex Conic horn that rotates 90° for wide or deep rooms. The integrated SA625 amplifier supplies 250 watts to the low-frequency section and 125 watts to the high-frequency section at 16 ohms, with factory-optimized multi-band peak and thermal limiting. Controlled through RHAON II, the onboard DSP provides eight fully parametric filters, high and low shelf and pass filters, and up to 340 ms of delay. The RD model adds Dante digital signal distribution with AES67 compatibility and primary/secondary network redundancy. Twelve-point Universal Mounting Hardware supports flown, bracket, and discreet wall mounting.

Key Features

• Compact 8-Inch Two-Way — An 8-inch woofer and 1-inch titanium HF driver deliver full-range ± 3 dB output from 90 Hz to 20 kHz in a small enclosure.
• Rotatable Complex Conic Horn — The 120° x 60° / 90° x 60° horn rotates 90° for wide or deep coverage.
• Integrated SA625-RD Amplifier — The built-in amplifier supplies 250 W LF and 125 W HF at 16 ohms with driver-protecting multi-band limiting.
• Dante with Network Redundancy — AES67-compatible Dante with primary/secondary Ethernet supports resilient networked systems.
• RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured from RHAON II software.
• In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.

Typical Applications

• Conference room
• Boardroom
• House of worship
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

What amplifier powers the CA81-RD? It uses the integrated Renkus-Heinz SA625-RD module supplying 250 W LF and 125 W HF at 16 ohms, with RHAON II control and Dante.

Can the horn be rotated? Yes. The Complex Conic horn rotates 90° within the cabinet to provide 120° x 60° or 90° x 60° coverage.

What is the difference between CA81 and CX81? The CA81 is self-powered with the SA625 amplifier module; the CX81 is the externally powered (passive) version.

Does it integrate with other Renkus-Heinz systems? Yes. It pairs with Renkus-Heinz subwoofers and steerable systems over RHAON II and Dante. See the Renkus-Heinz collection.

What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
