Renkus-Heinz CA151‐RN Self‐Powered with RHAON, SA1250‐RN Amp Module

Product Overview

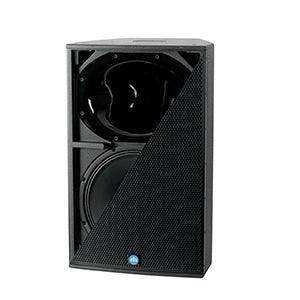

The Renkus-Heinz CA151-RN is a self-powered 15-inch two-way point-source loudspeaker with integrated RHAON II network control, part of the in-stock C Series for permanent install applications. It combines a 15-inch woofer and 2-inch titanium HF driver on a Complex Conic waveguide with an SA1250-RN amplifier module and onboard DSP. As a networked install loudspeaker, it works as a compact main system or distributed coverage in auditoriums, houses of worship, and multi-purpose venues.

Product Description

The C Series delivers premium point-source performance for installation at a competitive price, kept in stock for immediate shipment in black or white. The CA151 features a heavy-duty 15-inch woofer and a 2-inch titanium HF driver, with the exclusive Complex Conic horn delivering constant beamwidth and directivity. The integrated SA1250 amplifier supplies 1000 watts to the low-frequency section and 250 watts to the high-frequency section, with factory-optimized multi-band peak and thermal limiting. Controlled through RHAON II, the onboard DSP provides eight fully parametric filters, high and low shelf and pass filters, and up to 340 ms of delay, accessed over Ethernet. The RN model uses analog and AES inputs with RHAON network control and is compatible with other self-powered Renkus-Heinz loudspeakers including the steerable columns. Twelve-point Universal Mounting Hardware with M10 threads supports flown and bracket-mounted installation.

Key Features

• 15-Inch Two-Way Point Source — A heavy-duty 15-inch woofer and 2-inch titanium HF driver deliver full-range ± 3 dB output from 55 Hz to 20 kHz.
• Complex Conic Waveguide — The exclusive horn provides constant beamwidth and directivity, selectable as 60° x 40° or 90° x 40° coverage.
• Integrated SA1250-RN Amplifier — The built-in amplifier supplies 1000 W LF and 250 W HF with driver-protecting multi-band limiting.
• RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured over Ethernet from RHAON II software.
• Analog and AES Inputs — Looping XLR-3 connectors accept analog and AES sources for flexible system wiring.
• In-Stock Install Loudspeaker — Kept in stock for immediate shipment in black or white for fast project turnaround.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Commercial meeting space
• Broadcast studio

Technical Specifications

Frequently Asked Questions

What amplifier powers the CA151-RN? It uses the integrated Renkus-Heinz SA1250-RN module supplying 1000 W LF and 250 W HF with RHAON II network control.

Does it support Dante? The RN model uses analog and AES inputs with RHAON control. For Dante digital audio with redundancy, choose the CA151-RD.

What is the difference between CA151 and CX151? The CA151 is self-powered with the SA1250 amplifier module; the CX151 is the externally powered (passive) version.

Does it integrate with other Renkus-Heinz systems? Yes. It pairs with Renkus-Heinz subwoofers and steerable systems over RHAON II. See the Renkus-Heinz collection.

What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
