QSC KW153 – 15-Inch 1000W Active 3-Way Loudspeaker

Product Overview

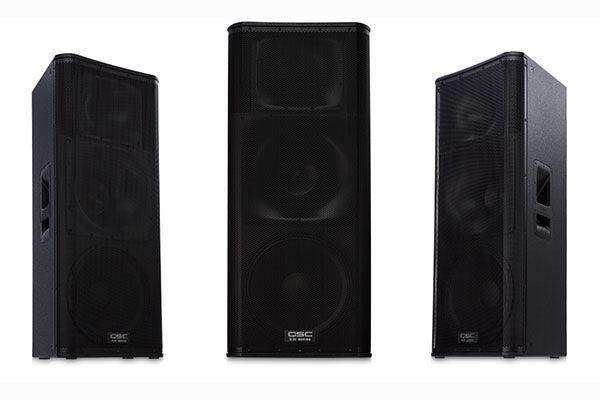

The QSC KW153 is a professional 15-inch, 1000W active three-way PA loudspeaker for music and speech reinforcement. A lightweight, rugged birch cabinet houses a 15-inch woofer, a 6.5-inch midrange driver, and a 1.75-inch compression tweeter for detailed, natural audio across a wide frequency range.

Its dedicated midrange, Directivity Matched Transition coverage, onboard DSP and EQ, and flexible mounting make it a high-performance main loudspeaker for demanding live and install work.

Product Description

The KW153 is a three-way system pairing a 15-inch woofer, a 6.5-inch midrange driver, and a 1.75-inch compression tweeter, driven by a pair of efficient Class-D amplifiers with a combined 1000W output. The dedicated midrange improves vocal and instrument clarity, while Directivity Matched Transition (DMT) keeps coverage even across the listening area.

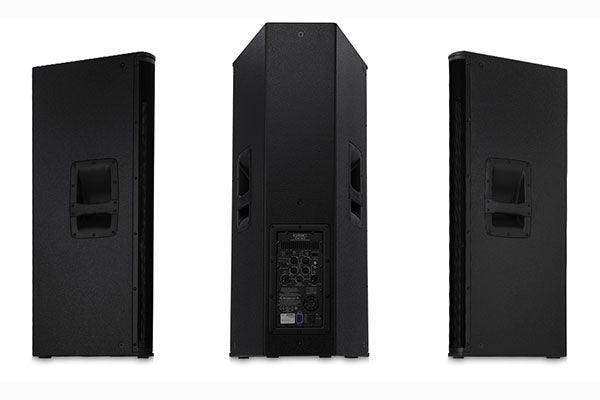

Connectivity includes XLR-1/4-inch combo inputs and line-level RCA inputs, mixing up to three sources internally with per-channel direct XLR outputs and a mix output for daisy-chaining. Internal DSP includes Intrinsic Correction, DEEP, and GuardRail, and onboard EQ controls let you match the speaker to the room. A rear Phoenix connector accepts an external potentiometer (not included) for remote gain control.

A standard 35 mm pole socket, integrated M10 suspension points, and ergonomic cast-aluminum handles ease mounting and transport. For two-way models, see the QSC KW152 and QSC KW122.

Key Features

• Three-way 15-inch design — A 15-inch woofer, 6.5-inch midrange, and 1.75-inch compression tweeter deliver detailed full-range audio.
• 1000W Class-D amplification — Dual Class-D amplifiers provide strong, low-distortion output.
• Dedicated midrange clarity — The separate 6.5-inch midrange improves vocal and instrument intelligibility.
• Directivity Matched Transition — Matches coverage across the listening area to eliminate dead and hot zones.
• Onboard EQ and remote gain — Front-panel EQ plus a rear Phoenix connector for an external potentiometer (not included) for remote gain.
• Advanced DSP — Intrinsic Correction, DEEP, and GuardRail for clarity and protection.
• Flexible mounting — 35 mm pole socket, integrated M10 suspension points, and cast-aluminum handles.

Typical Applications

• House of worship
• Commercial meeting space
• Multi-purpose room
• Training room
• Auditorium

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the advantage of the KW153's three-way design?
A dedicated 6.5-inch midrange driver reproduces vocals and instruments more clearly than a two-way design, improving intelligibility and detail.

Can I control gain remotely?
Yes. A rear Phoenix connector accepts an external potentiometer (not included) for remote gain control.

How is it mounted?
It has a standard 35 mm pole socket and integrated M10 suspension points, plus cast-aluminum handles for transport.

What warranty and support come with this loudspeaker?
QSC powered loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
