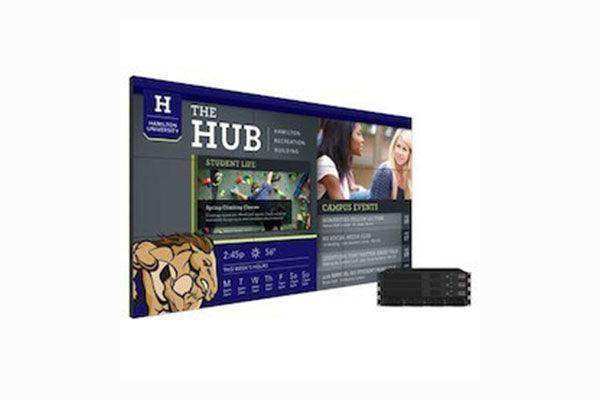

Planar MX46X-L-ERO 46"G3 Clarity Matrix 1920x1080 800 nit LCD video wall - 998-0276-00

Product Overview

The Planar MX46X-L-ERO is a 46-inch Clarity Matrix G3 LCD video wall panel delivering 800 nit brightness with ERO (Extended Ruggedness and Optics) optically bonded glass, configured for landscape mounting. As the third-generation MX platform, it incorporates next-generation off-board video processing, the Leyard WallDirector management software, and hot-swappable redundant power supplies for mission-critical 24/7 reliability. The G3 generation advances beyond G2 with improved video controller architecture, broader 4K signal support, and deeper ecosystem integration with Leyard infrastructure. SKU 998-0276-00 is the ERO landscape variant in the 46-inch G3 MX lineup.

Product Description

The Clarity Matrix G3 MX46X-L-ERO combines the 800 nit high-brightness performance of the MX platform with the added optical and ruggedness benefits of ERO glass — making it the appropriate choice for landscape-mounted video walls in environments with significant ambient light and public contact. The G3 generation's off-board Video Controller (VC) embeds advanced video processing including 4K at 60Hz signal support, PiP, and 4K quadview across the wall. Tiled bezel widths as narrow as 1.7mm (3.7mm on ERO variant) produce a near-seamless visual plane across large arrays. The EasyAxis Mounting System achieves a 3.6-inch installed depth — industry-leading — for flush, architecturally clean installations. WallDirector software provides web-based one-button preset recall, drag-and-drop source management, and centralized health monitoring of all wall components. The Remote Power Supply (RPS) with n+1 hot-swappable redundant supplies and redundant AC input ensures the wall remains operational through a power supply failure. ERO glass provides increased ruggedness for high-traffic public spaces and optionally supports interactive multi-touch through a compatible touch kit.

Key Features

• 46-inch Full HD (1920x1080) LCD, landscape orientation with ERO glass
• 800 nit high brightness for high ambient light environments
• Clarity Matrix G3 platform — advanced off-board Video Controller (VC)
• Tiled bezel width: 3.7mm (ERO), scalable to 1.7mm (non-ERO)
• Leyard WallDirector software — web-based monitoring and preset management
• Planar Big Picture Plus: 4K at 60Hz, PiP, quadview, multi-source scaling
• EasyAxis Mounting System — 3.6" installed depth, precision alignment
• n+1 hot-swappable redundant power supplies (Remote Power Supply)
• HDMI 2.0 and DisplayPort 1.2 connectivity
• Mission-critical 24/7 rated operation
• ERO optically bonded glass — ruggedness and ambient light rejection

Typical Applications

• Control rooms and network operations centers (NOCs) requiring 24/7 uptime
• Bright retail and public space digital signage
• Transportation hubs: airports, transit operations centers
• Broadcast studios and media production monitoring walls
• Government and defense operations centers
• Sports venues and stadium command centers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What distinguishes the G3 from the G2 Clarity Matrix platform?

The G3 generation introduced the off-board Video Controller (VC) with advanced Planar Big Picture Plus processing, broader 4K at 60Hz signal support, and Leyard WallDirector software for centralized web-based management. The G3 also features improved thermal management in the off-board RPS and tighter integration with Leyard's broader video wall infrastructure. G2 panels use an earlier processing architecture with fewer simultaneous 4K source capabilities.

Why is 800 nit brightness significant for a video wall?

At 800 nit, the MX46X-L-ERO maintains legibility in environments with strong ambient lighting — bright retail floors, transportation hubs, outdoor-adjacent lobbies, and broadcast studios. Standard 500 nit panels can appear washed out in these conditions. 800 nit output is widely considered the threshold for reliable high-ambient-light performance in professional video wall deployments.

What does the n+1 hot-swappable RPS provide operationally?

The Remote Power Supply (RPS) houses multiple power supply units in an n+1 redundant configuration. If one unit fails, the remaining units absorb the load without dropping the video wall. The failed unit can be replaced while the wall remains running — eliminating downtime for power supply service. This is essential for control rooms, NOCs, and operations centers with uptime SLAs.

Does ERO glass affect serviceability of individual panels?

No. Unlike monolithic protective glass solutions, Planar ERO uses a modular panel-level bonded glass design. Each panel can be removed and serviced independently without dismantling adjacent panels or large glass sheets. This significantly reduces service labor time and complexity in tiled arrays.

Can the MX46X-L-ERO be used with touch interactivity?

Yes. Compatible touch kits can be integrated with ERO panels to enable multi-user interactive capability across the video wall. ERO glass provides the continuous surface required for accurate touch detection across tiled panel boundaries.
